Accessory Drive Belt Guide for the 1992-2003 Lexus ES300
Keep your ES300's engine accessories running smoothly by understanding its drive belt system.
- Verify your engine (3VZ-FE for 92-93, 1MZ-FE for 94-03) before buying, as the belt systems are different.
- High-quality aftermarket brands like Bando and Mitsuboshi are OEM suppliers for Lexus and offer excellent value.
- Squealing after installing a new belt is usually caused by incorrect manual tension, not a faulty belt.
- If the belt breaks, the car will lose power steering, alternator function, and cooling, making it unsafe to drive.
Understanding Your ES300's Drive Belt System
The 1992-2003 Lexus ES300 uses one or two accessory drive belts, depending on the engine. It is critical to identify your engine before buying parts. The system does not use a modern spring-loaded tensioner; instead, tension is set manually by adjusting the alternator and power steering pump.
- 1992-1993 (3VZ-FE Engine): These early models use a dual V-belt system. One belt typically drives the alternator and water pump, while a second belt drives the power steering pump and A/C compressor.
- 1994-2003 (1MZ-FE Engine): These later models use a single, flat, ribbed belt, often called a serpentine belt, to power all accessories. There is also a separate V-belt just for the power steering pump. 🎬 Watch: Step-by-step drive belt replacement on a 2001 ES300
Pro Tip: Do not confuse the accessory drive belt with the timing belt. The accessory belt is visible on the side of the engine. The timing belt is internal, and its failure can cause catastrophic engine damage.
Symptoms of a Failing Accessory Drive Belt
A worn or failing belt will almost always give warning signs before it breaks. Ignoring them can leave you stranded.
- Squealing or Chirping Noises: This is the most common symptom, especially on cold starts or when turning the steering wheel or A/C on. It indicates the belt is slipping due to age, wear, or improper tension.
- Visible Wear: Inspect the belt regularly. Look for cracks, fraying, glazing (a shiny surface), or missing chunks of the ribs.
- Accessory Problems: If your power steering feels heavy, your battery isn't charging (battery light on), or the engine temperature rises quickly, the belt may be slipping or broken.
A Note on Squealing After Replacement
If a brand new belt squeals, the cause is almost always incorrect tension or a worn-out component. Since the ES300 uses manual tensioners, the belt may need to be re-tightened. 🎬 See how to properly adjust and replace your serpentine belt Also, check for fluid contamination from oil or coolant leaks, and inspect the pulley bearings on the tensioner and idlers.
Choosing the Right Aftermarket Belt for Your ES300
For this vehicle, aftermarket belts from OEM suppliers offer the best combination of quality and value. You do not need to buy a dealership part to get a reliable belt.
| Brand Tier | Brands | Assessment |
|---|---|---|

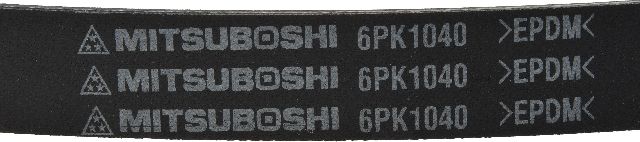

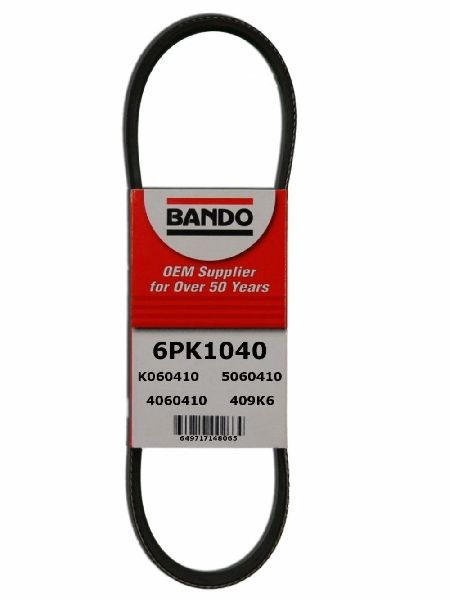

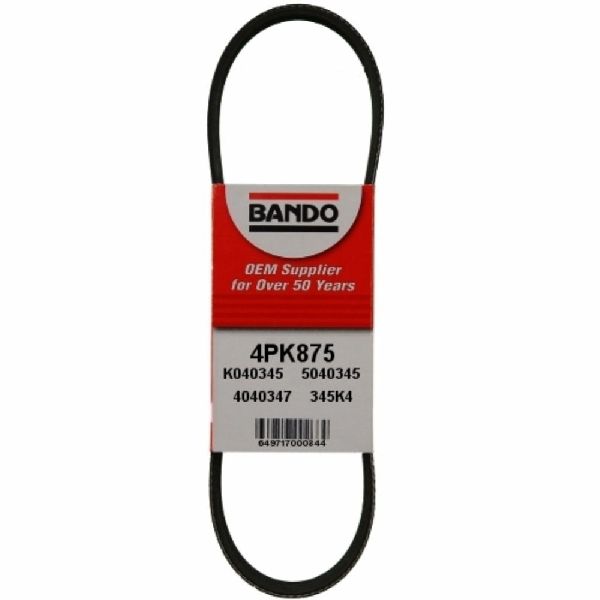

| OEM Supplier (Excellent Choice) | Bando, Mitsuboshi | Bando and Mitsuboshi are the original equipment manufacturers for Toyota and Lexus. Choosing one of these brands is like buying the original part without the dealership markup. They are known for excellent fit, durability, and quiet operation. |
| Premium Aftermarket | ACDelco, Gates, Continental | These are highly respected brands used by professional mechanics. They produce high-quality EPDM rubber belts that often meet or exceed OEM specifications and are excellent, reliable choices. |
Known Issues, Recalls, or TSBs
Searches of the National Highway Traffic Safety Administration (NHTSA) database and Technical Service Bulletins (TSBs) did not reveal any specific recalls or common issues directly related to accessory drive belt failure for the 1992-2003 Lexus ES300. Most reported problems, like squealing, are due to normal wear and tear or improper tension after replacement.
Frequently Asked Questions
How often should I replace my ES300's accessory drive belt?
There is no strict replacement interval from Lexus. A general guideline is to inspect the belt at every oil change and plan for replacement every 60,000 to 90,000 miles, or as soon as you notice any signs of wear like cracking or squealing.
Can I replace the accessory drive belt myself?
Yes, for a DIYer with proper tools, this is a manageable job. Access is tight, so removing the passenger-side front wheel and splash shield is recommended. The key is properly loosening the pivot and lock bolts on the alternator and/or power steering pump to release tension, and then correctly re-tensioning the new belt.
🎬 Watch this walkthrough for replacing alternator and power steering beltsShould I replace the tensioner and idler pulleys at the same time?
While the ES300 doesn't have a single spring-loaded tensioner assembly like newer cars, it does have idler pulleys. It is highly recommended to inspect these pulleys when replacing the belt. If they feel rough when spun by hand or make noise, they should be replaced to prevent them from seizing and destroying the new belt.
What is the difference between a V-Belt and a Serpentine Belt?
A V-belt has a trapezoidal shape and fits into a V-shaped groove in a pulley. Older systems, like the 1992-93 ES300, often use multiple V-belts. A serpentine belt is a single, flat, continuous belt with multiple ribs that drives all accessories. The 1994-2003 ES300 uses a combination: a serpentine belt for most accessories and a separate V-belt for power steering.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90916-02401 90080-91087 99366-31040 90080-91212
System type varies by engine. 1992-1993 3VZ-FE models use a multi-V-belt setup. 1994-2003 1MZ-FE models use a main serpentine belt and a separate V-belt for the power steering. All models use a manual tensioning system.
