Lexus ES300 (1992-2003) Electric Fuel Pump: A Complete Replacement Guide
Your ES300's reliability depends on a healthy fuel pump; here's how to choose the right replacement.
- Denso is the original equipment (OE) brand for your Lexus; choosing it ensures the best fit and reliability.
- The fuel pump is easily accessible under the rear seat, making this a very feasible DIY repair.
- For an easier and more reliable repair, replacing the entire fuel pump assembly is recommended over just the pump motor.
- Always replace the fuel pump strainer ('sock') and consider replacing the main fuel filter at the same time to protect your new pump.
Is Your ES300 Fuel Pump Failing?
A failing fuel pump rarely dies without warning. For the 1992-2003 ES300, the signs are classic. You might first notice your engine sputtering or hesitating when you accelerate onto a highway. Other common symptoms include a whining or humming noise from the rear seat area, difficulty starting the engine, or sudden stalling. If the pump fails completely, your engine will crank but will not start at all.
Known Issues, Recalls, and TSBs
While there was a major fuel pump recall for many modern Lexus vehicles, it's important to know that no fuel pump recalls apply to the 1992-2003 Lexus ES300 generation. Searches for Technical Service Bulletins (TSBs) for this specific vehicle also do not show a pattern of premature or widespread fuel pump failures. Failures on these models are typically due to normal wear and age.
Choosing the Right Aftermarket Fuel Pump
When shopping for a replacement, you have a choice between replacing just the small electric pump motor or the entire fuel pump assembly (which includes the pump, strainer, sending unit, and housing). For a vehicle of this age, the plastic housing can become brittle. Replacing the entire assembly is often easier and prevents issues with old, fragile parts.
Pro Tip: For the 1992-2003 ES300, the fuel pump is accessible by removing the bottom of the rear seat. This is a major advantage, as you do not need to drop the entire gas tank for the repair, making it a feasible DIY job for many owners.
Brand Quality Tiers
Not all aftermarket brands are created equal. Here’s a breakdown of the brands available for your ES300:
- OEM / Top Tier (Denso, Aisan): Denso is the original equipment manufacturer for Toyota and Lexus fuel systems. Choosing a Denso pump is the closest you can get to the part your car was built with, ensuring original performance and reliability. Aisan is also an original equipment supplier. If your budget allows, this is the best choice.
- Premium Aftermarket (Bosch, Delphi): Bosch and Delphi are reputable OEM suppliers for many other car brands and have a strong reputation for quality. They are excellent, reliable alternatives to Denso and may offer a better price.
- Quality Mid-Tier (Carter, Beck Arnley): Brands like Carter have a long history in fuel systems and offer a good balance of quality and affordability. Beck Arnley is known for sourcing parts that match the original form and function, making them a solid choice.
- Budget-Friendly (AutoBest, GMB): These brands provide a cost-effective solution to get your car running again. They are a viable option if your primary concern is a low initial cost.
| Tier | Brands | Typical Price (Pump Only) | Typical Price (Full Assembly) | Best For |
|---|---|---|---|---|
| OEM / Top Tier | Denso, Aisan | $100 - $200 | $250 - $500+ | Longevity and original performance |
| Premium Aftermarket | Bosch, Delphi | $80 - $150 | $180 - $350 | High quality with potential savings |
| Budget & Mid-Tier | Carter, GMB, AutoBest | $35 - $80 | $100 - $200 | Value and immediate repairs |
Frequently Asked Questions (FAQ)
Can I replace the ES300 fuel pump myself?
Yes. The job is very DIY-friendly on this model because the pump is accessed from under the rear seat, not by dropping the tank. You will need basic hand tools, pliers, and screwdrivers. The entire job can typically be done in 1-2 hours.
Should I buy the pump motor or the whole assembly?
While buying just the motor is cheaper, you must disassemble the original plastic housing, which can be brittle and break. Buying the complete assembly is a more straightforward, plug-and-play installation that replaces all key components, including the fuel level sender, which can also fail over time. For a more reliable and easier repair, the full assembly is recommended.
Do I need to replace the fuel filter too?
Yes. At a minimum, you must replace the fuel pump strainer (often called a 'sock'), which is usually included with the new pump. It is also highly recommended to replace your main in-line fuel filter at the same time. A clogged filter can strain a new pump and cause it to fail prematurely.
How long should a fuel pump last in an ES300?
An original, high-quality fuel pump can last well over 150,000 miles. However, age is also a factor. It's not uncommon for the original pump in a 1992-2003 model to fail simply due to its age.
Warning: Always disconnect the negative battery terminal before starting this repair. Work in a well-ventilated area and have a fire extinguisher nearby, as you will be handling raw gasoline.
Technical Specifications
OEM Part Numbers: 23221-15040 23221-03030 23220-74020 23221-16490 23220-03020

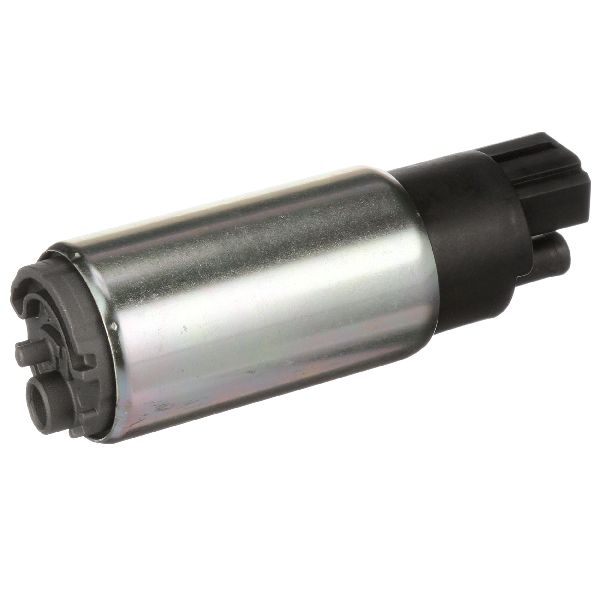

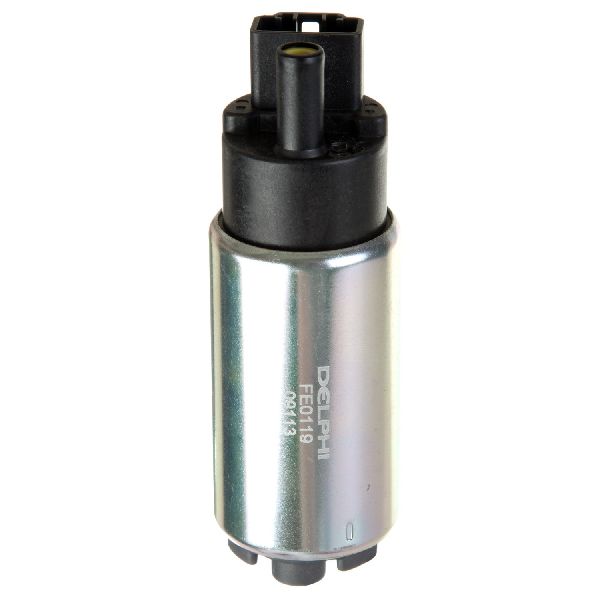

In-tank electric fuel pump. Access is via a panel under the rear seat cushion. Available as a pump motor only or as a complete module assembly with fuel level sending unit.
