Lexus ES300 Engine Valve Cover Gasket Set Guide (1992-2003)
Stop that burning oil smell and prevent engine damage by choosing the right valve cover gasket set for your ES300.
- The rear valve cover gasket is significantly more difficult to replace than the front, requiring removal of the intake manifold.
- Always purchase a complete kit that includes spark plug tube seals; they are a common failure point that can cause engine misfires.
- Due to the high labor involved, it is strongly recommended to use a premium aftermarket brand (like Fel-Pro, Beck Arnley) or OEM gaskets.
- Plan to also replace the PCV valve and the intake plenum gaskets during this job to ensure a lasting repair.
Is Your ES300 Leaking Oil? Signs of a Bad Valve Cover Gasket
When a valve cover gasket fails on your 1992-2003 Lexus ES300, the signs are usually obvious. Because the gaskets are made of rubber, they become hard and brittle over time from the engine's heat, eventually cracking and losing their seal.
- Burning Oil Smell: This is the most common sign. Oil drips from the valve covers onto the hot exhaust manifolds below, creating a distinct and unpleasant burning smell 🎬 See why your Lexus is burning oil and how to fix it. inside and outside the car.
- Visible Oil Leaks: You may see oil residue and grime built up on the sides of the engine, specifically around the edges of the black or silver valve covers.
- Oil in Spark Plug Wells: If the spark plug tube seals fail, oil will pool in the tubes where the spark plugs sit. This can cause the engine to misfire, run rough, and trigger the Check Engine Light.
- Low Engine Oil: A constant leak will cause your engine oil level to drop over time, requiring you to top it off between oil changes.
- Smoke from Engine Bay: In cases of a significant leak, you might see light smoke coming from under the hood as the oil burns off the hot engine.
Choosing the Right Aftermarket Gasket Set
For the ES300, the V6 engine's rear valve cover gasket is very difficult to replace because the entire upper intake manifold must be removed. Because the labor is so intensive, it is highly recommended to use a high-quality gasket set to avoid having to do the job twice. While OEM gaskets are a safe choice, many premium aftermarket brands offer excellent quality, often in more complete kits.
Brand Quality Tiers
- Premium Aftermarket (OEM Quality or Better): Brands like Fel-Pro, Beck Arnley, and Reinz (Victor Reinz) are highly regarded. Fel-Pro is often praised for improving on original designs and including all necessary components in their kits (VS series). Beck Arnley is known for often repackaging parts from the original OEM suppliers. These are the recommended choice for a long-lasting repair.
- Standard Aftermarket: Brands like DNJ Engine Components and Apex offer a good balance of quality and price. They are a reliable option for budget-conscious repairs and generally meet OEM specifications.
- Economy Aftermarket: A brand like DJ Rock falls into the economy category. While the most affordable, some mechanics warn that budget gaskets can have fitment issues or a shorter lifespan, which is a big risk on a labor-intensive job like the ES300's rear gasket.
Generation Differences & Common Mistakes
The 1992-2003 ES300 generation used two different V6 engines:
- 1992-1993 ES300: 3VZ-FE Engine
- 1994-2003 ES300: 1MZ-FE Engine
While very similar, there can be slight differences in the gaskets. Always verify the part fits your specific model year before ordering. A common mistake is only ordering the main gaskets and forgetting the crucial spark plug tube seals and intake manifold gaskets, which are required for the job.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $25 - $85 |
| New OEM Gasket Set | $70 - $120 |
| Shop Labor Cost | $250 - $500+ |
| Total Professional Repair | $275 - $600+ |
Costs are estimates and can vary based on your location and the specific repair shop. The wide labor range reflects the high difficulty of replacing the rear gasket.
Frequently Asked Questions (FAQ)
Is this a good DIY job for a beginner?
No. While replacing the front (radiator-side) gasket is straightforward, the rear (firewall-side) gasket requires removing the upper intake manifold, fuel lines, and various sensors and vacuum hoses. This is best left to an experienced DIYer or a professional mechanic.
🎬 Watch this detailed walkthrough of the V6 valve cover replacement.Do I need to use sealant (RTV) with the new gaskets?
Yes, but only in specific spots. A small dab of oil-resistant RTV sealant is required where the engine block, cylinder head, and timing cover meet (usually at the sharp corners). Do not apply sealant around the entire gasket, as this can cause it to slip out of place and leak.
What other parts should I replace at the same time?
Since the intake manifold has to be removed for the rear gasket, you must replace the intake plenum gaskets. It is also highly recommended to replace the PCV valve and its grommet, as a clogged PCV system increases pressure that can cause leaks. This is also the perfect time to install new spark plugs, since you will have easy access.
🎬 Learn how to replace your spark plugs while the engine is open.Are there any recalls for the ES300 valve cover gaskets?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from Lexus or the NHTSA for valve cover gasket failure on the 1992-2003 ES300. The issue is considered normal wear and tear due to the age and mileage of the vehicles.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11213-62020 11213-20020 11213-0A010 11214-20010 11214-0A010 11193-70010

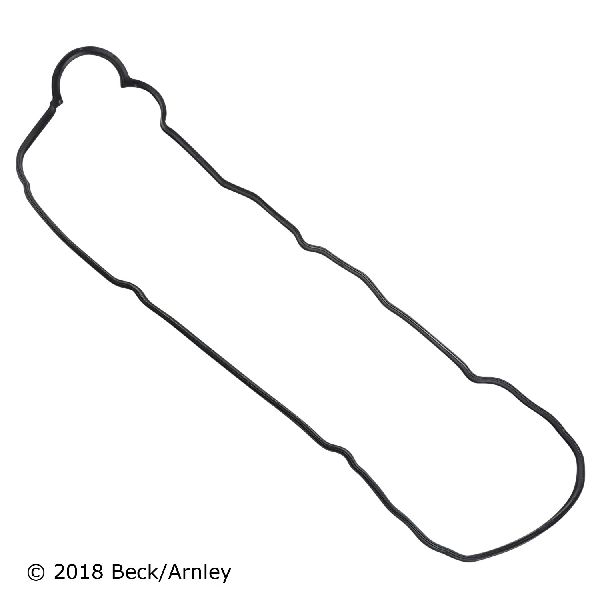

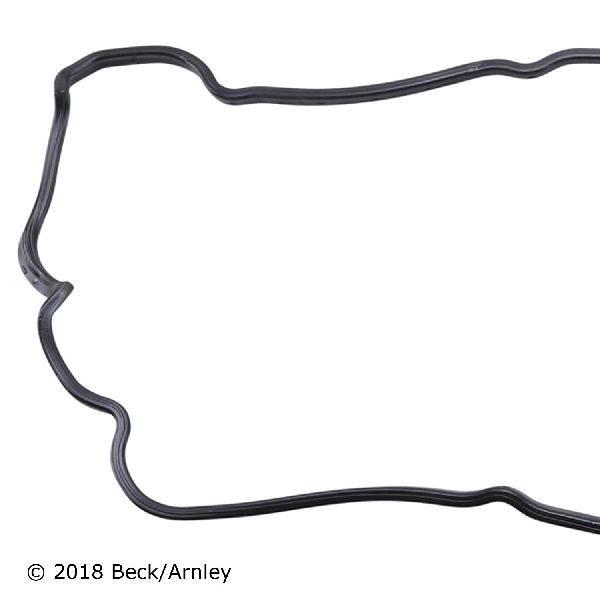

The 1992-2003 Lexus ES300 uses a V6 engine (3VZ-FE or 1MZ-FE) and requires a set of two valve cover gaskets, six spark plug tube seals, and associated bolt grommets. The gaskets are typically made of molded rubber designed to withstand high temperatures and oil exposure.
