A Lexus ES300 Owner's Guide to Fuel Injector Replacement (1992-2003)
Learn to spot the signs of a failing fuel injector and choose the right replacement part for your ES300's V6 engine.
- Always replace fuel injectors as a complete set of six to ensure balanced engine performance.
- The rear three injectors are much harder to replace than the front three, requiring removal of the intake plenum.
- A bad fuel injector can cause a misfire code (P0301-P0306), but so can a bad coil or spark plug; proper diagnosis is key.
- Ignoring a faulty injector can lead to expensive damage to your catalytic converter.
Symptoms of a Bad Fuel Injector in a Lexus ES300
A failing fuel injector on a 1992-2003 ES300 will almost always make its presence known. Because your engine's computer expects a certain amount of fuel in each cylinder, any deviation will cause a problem. You will likely experience one or more of these signs:
- Rough Idle: The engine may shake or vibrate more than usual when stopped at a light.
- Engine Misfires: You may feel a hesitation, stumble, or jerking sensation while driving. This is often accompanied by a flashing Check Engine Light.
- Check Engine Light: The most common codes are for misfires (P0300 for a random misfire, or P0301-P0306 for a specific cylinder). You may also see injector circuit codes (P0201-P0206).
- Poor Fuel Economy: If an injector is stuck open or leaking, it will waste fuel, and you'll notice you're visiting the gas station more often.
- Fuel Smell: A strong smell of raw gasoline around the engine bay can indicate an injector is leaking externally or stuck open, flooding a cylinder. This is a fire hazard and should be addressed immediately.
- Hard Starting: The engine may be difficult to start, especially when it's warm, if a leaky injector is flooding a cylinder.
Warning: Rear Injector Replacement is More Involved
On the V6 engine in your ES300, there are two banks of three injectors. The front bank (cylinders 2, 4, 6) is easy to access. The rear bank (cylinders 1, 3, 5), located against the firewall, is much more difficult. To replace the rear injectors, the entire upper intake plenum must be removed, adding significant time and complexity to the job. This is why shop labor costs can be high.

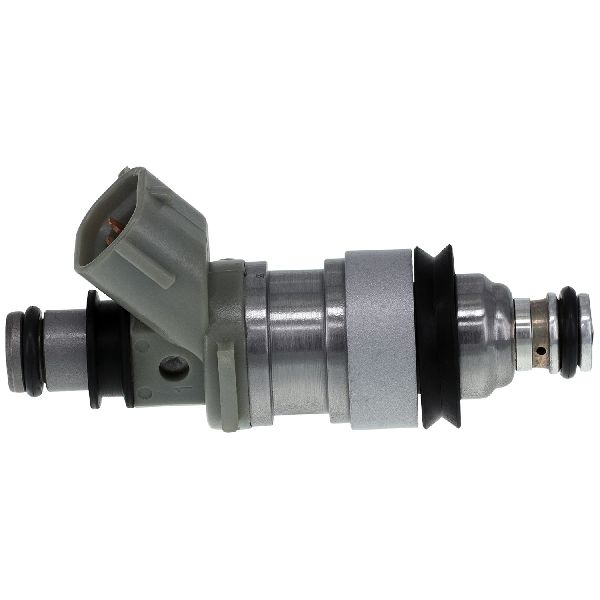

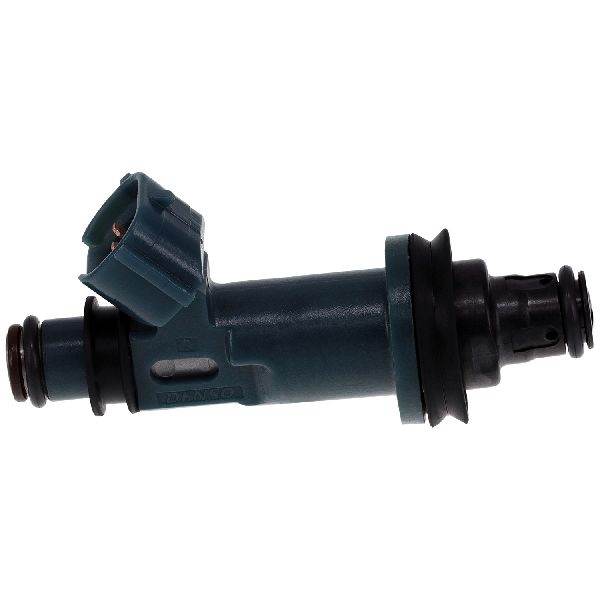

Choosing the Right Aftermarket Fuel Injector
For a vehicle like the 1992-2003 ES300, using high-quality aftermarket parts provides the best balance of performance and value. The original injectors were made by Denso, and while they are excellent, they are also very expensive. A good aftermarket brand can provide reliable performance for a fraction of the cost. It is highly recommended to replace all six injectors at once to ensure they are all flow-matched, providing smooth and efficient engine operation.
Aftermarket Brand Tiers
- Tier 1 (Professional Grade): Standard Ignition (SMP)
Standard is a well-respected name in the aftermarket, known for extensive testing to ensure their parts meet or exceed OE performance. They are a trusted choice for professional mechanics and a reliable option for your Lexus. While you might find a rare negative review, their overall reputation for quality is strong. - Tier 2 (OE-Matching Specialist): Beck Arnley
Beck Arnley specializes in parts for foreign vehicles and often sources its components from the same factories that make the original parts. They focus on matching the original form, fit, and function. However, online reviews are sometimes mixed, with occasional reports of faulty parts, so it's important to buy from a reputable seller with a good warranty. - Tier 3 (Budget-Friendly): GBR Fuel Injection & Other Brands
GBR Fuel Injection and other lower-cost brands offer a more affordable entry point. There is less public information and fewer reviews available for these brands, making it harder to assess their long-term reliability. While they can be a solution for a tight budget, they may carry a higher risk of inconsistent quality compared to more established brands.
| Part Type | Estimated Part Cost | Estimated Shop Labor | Estimated Total |
|---|---|---|---|
| New OEM (Denso) | $900 - $1500 | $350 - $600 | $1250 - $2100+ |
| New Aftermarket | $330 - $1400 | $350 - $600 | $680 - $2000 |
| Remanufactured | $250 - $500 | $350 - $600 | $600 - $1100 |
Note: Costs are estimates and will vary based on your location, the specific parts chosen, and your mechanic's labor rate. The provided aftermarket price range is based on an inventory of 9 available products.
Pro Tip: Service Kits and Best Practices
When replacing your injectors, it's crucial to also replace the rubber O-rings and seals. Many injectors come with these, but you can also buy injector service kits. Always lubricate the new O-rings with a bit of silicone grease or clean motor oil before installation to ensure a proper seal and prevent tearing.
Frequently Asked Questions
Should I replace all 6 fuel injectors at once?
Yes. It is strongly recommended to replace all six injectors as a set. Injectors wear over time, and their flow rates can change. Replacing only one can create an imbalance in the engine, leading to a rough idle and poor performance. Installing a full, matched set ensures every cylinder gets the same amount of fuel.
Are there any recalls for the ES300 fuel injectors?
No. There are no active safety recalls or widespread Technical Service Bulletins (TSBs) from Lexus specifically for failing fuel injectors on the 1992-2003 ES300. Failures are typically due to age, mileage, and wear.
What happens if I don't replace a bad fuel injector?
Ignoring a bad injector can lead to more serious problems. A lean condition (too little fuel) can cause engine damage. A rich condition (too much fuel) from a leaky injector can wash oil off cylinder walls and, more commonly, destroy your expensive catalytic converter by sending unburnt fuel into the exhaust. Prompt replacement is the best course of action.
Can I clean my old injectors instead of replacing them?
While in-tank fuel injector cleaners can help with minor deposit buildup, they cannot fix a mechanically or electrically failed injector. Professional off-car cleaning can be effective, where specialists ultrasonically clean the injectors and replace their internal filters. However, for a vehicle of this age, the cost and downtime may make replacing them with new, quality aftermarket units a more practical choice.
Technical Specifications
OEM Part Numbers: 23250-20010 23250-20020 23250-0A010 23250-62030
The 1992-1993 ES300 used the 3VZ-FE engine, while the 1994-2003 models used the 1MZ-FE engine. While some injectors may cross-reference, always verify the exact fitment for your specific engine and model year before ordering.
