Lexus ES300 Spark Plug Wire Set Guide (1992-2003)
Everything an owner needs to know about replacing the spark plug wires on their 1992-2003 ES300.
- Verify your model year carefully: 1994-2001 models use a set of three wires, while 2002-2003 models use zero wires (coil-on-plug).
- Stick with OEM-quality brands like Denso or NGK for reliability, as the rear wires are very difficult to access.
- Always inspect for oil leaks from the valve cover gaskets; this is a common failure point that will destroy new wires if not fixed.
- Plan to replace the spark plugs (with Iridium plugs) at the same time to save on future labor costs.
Understanding Your ES300's Ignition System
The 1992-2003 Lexus ES300 uses a V6 engine, but the ignition setup changed over the years, which affects the spark plug wires you need. It's important to know which system your car has.
- 1992-1993 (3VZ-FE Engine): These early models use a distributor-based ignition system with a full set of six spark plug wires.

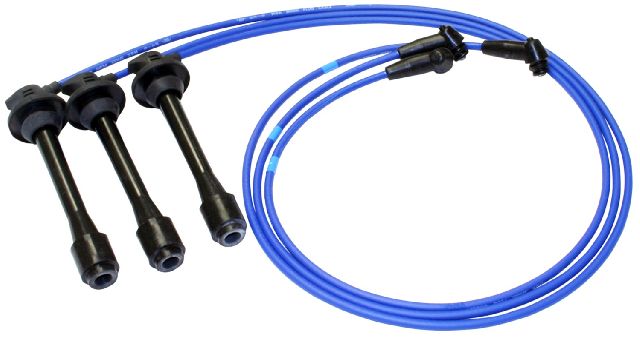

- 1994-2001 (1MZ-FE Engine): These models use a "waste spark" system. There are three ignition coils mounted on the front three spark plugs (Bank 2, cylinders 2-4-6). These coils also fire the rear three spark plugs (Bank 1, cylinders 1-3-5) via a set of three spark plug wires. So, you will purchase a set of three wires for these years.
- 2002-2003 (1MZ-FE Engine): These later models have a full coil-on-plug ignition system. This means each spark plug has its own ignition coil sitting directly on top of it. These model years do not use traditional spark plug wires. If you are looking for parts for a 2002-2003 ES300, you need ignition coils, not wires.
Common Ordering Mistake
Owners of 1994-2001 models often mistakenly look for a set of six wires. Remember, these model years only use a set of three wires for the rear cylinders. Owners of 2002-2003 models should be aware their vehicle does not use spark plug wires at all.
Symptoms of Failing Spark Plug Wires
When spark plug wires start to fail, the delivery of spark to the engine 🎬 Watch: Three simple ways to test your spark plug wires. becomes weak or inconsistent. This can cause several noticeable problems:
- Rough Idle: The engine may shake or run unevenly when the car is stopped.
- Engine Misfires: You might feel a hesitation, stumble, or jerking during acceleration. This will often cause the Check Engine Light to flash.
- Reduced Fuel Economy: When the engine isn't burning fuel efficiently, your gas mileage will suffer.
- Loss of Power: The car may feel sluggish and slow to accelerate.
- Difficulty Starting: A weak spark can make it harder for the engine to turn over, especially when cold.
Check for Oil Leaks
A very common issue on the ES300 V6 engine is a leaking valve cover gasket. Oil leaks into the spark plug tubes, soaking the wire boots and causing them to degrade and fail prematurely. If you find oil on your old wires or in the spark plug wells, you must replace the valve cover gaskets 🎬 See this step-by-step guide for replacing your valve cover gaskets. to prevent the new wires from failing quickly.
Choosing the Right Aftermarket Spark Plug Wires
For a vehicle like the Lexus ES300, sticking with brands known for their quality and history as original equipment (OEM) suppliers is the best approach. Since the rear wires are difficult to replace, you don't want to do the job twice.
Brand Quality Tiers

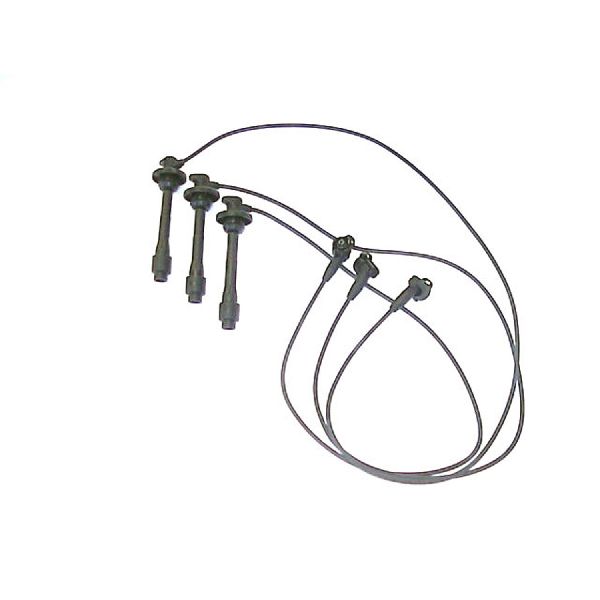

- Tier 1 (OEM Quality): Denso & NGK. Both Denso and NGK are original equipment suppliers for Toyota and Lexus. Their wire sets are manufactured to the highest standards, often in Japan, and provide the best fit, performance, and longevity. You cannot go wrong choosing either of these brands.

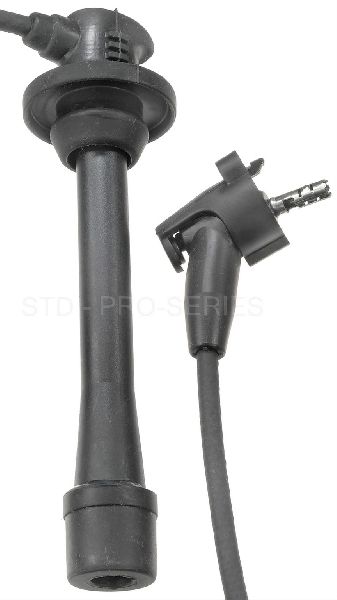

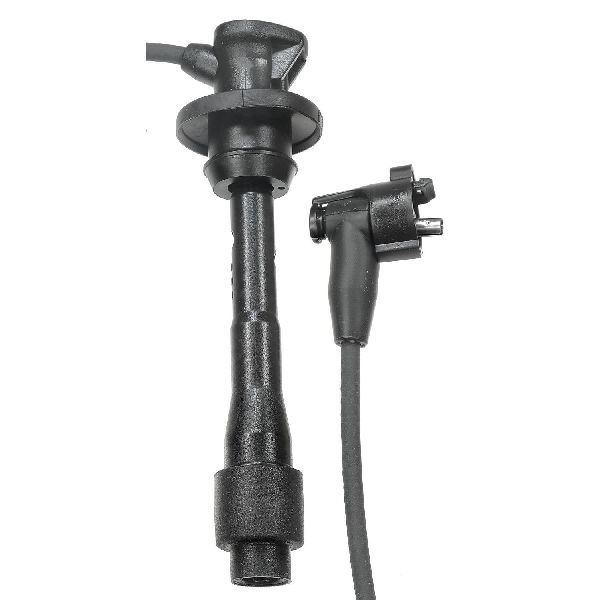

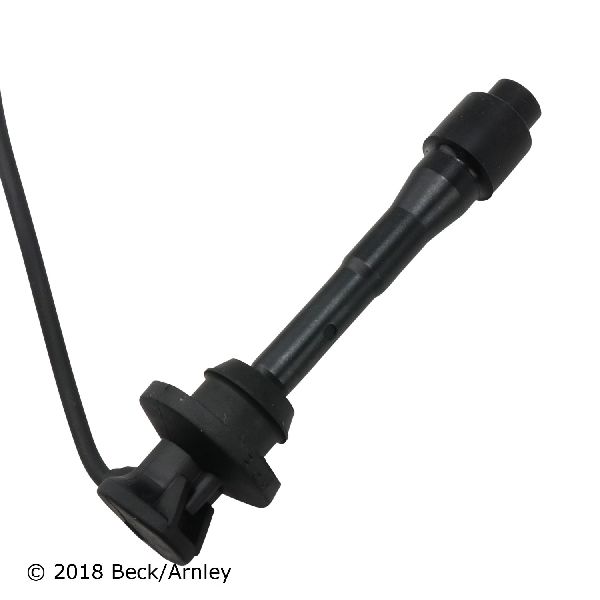

- Tier 2 (High-Quality Aftermarket): Beck Arnley, Standard (SMP). Beck Arnley often sources its parts from the same manufacturers as the OEM, so you may even get a Denso or NGK set in their box. Standard Motor Products is a long-standing, reputable aftermarket manufacturer with a solid track record. These are reliable choices if Tier 1 brands aren't available.
- Tier 3 (Value Brands): ACDelco, Walker Products, and other store brands. While functional, these brands may not have the same level of material quality or precise fit as the OEM-level brands. Given the labor involved in replacing the rear wires, it's generally recommended to invest in a Tier 1 or Tier 2 set for long-term reliability.
| Brand | Tier | Typical Price Range | Notes |
|---|---|---|---|
| Denso | 1 (OEM Quality) | $75 - $120 | Often the original part manufacturer for Lexus. Excellent choice. |
| NGK | 1 (OEM Quality) | $70 - $115 | OEM supplier with a reputation for high-quality materials and performance. |
| Beck Arnley | 2 (High-Quality) | $65 - $100 | Often repackages OEM parts; a very reliable option. |
| Standard (SMP) | 2 (High-Quality) | $60 - $95 | A trusted aftermarket brand known for quality components. |
| Walker / ACDelco | 3 (Value) | $58 - $85 | Functional, but may not offer the same longevity as OEM-tier brands. |
Frequently Asked Questions (FAQ)
Do I have to replace my spark plugs at the same time?
Yes, it is highly recommended. The spark plug wires and spark plugs have a similar service life, and the labor to access the rear bank is significant. It makes sense to replace the spark plugs, especially the three difficult-to-reach rear ones, while you are replacing the wires. Always use high-quality Iridium plugs from Denso or NGK for maximum life.
Why are the rear wires so hard to replace?
The rear three cylinders (Bank 1) are positioned against the firewall, underneath the upper intake plenum. Access is very tight. While it is possible on 1994-2001 models to change them without removing the intake manifold, it requires a specific combination of long extensions and swivel sockets. 🎬 Watch: How to replace rear plugs without removing the intake. Many mechanics and DIYers choose to remove the upper intake manifold for easier access.
Is there a recall on the spark plug wires for the ES300?
No, there have been no recalls issued by the NHTSA for the spark plug wires or ignition system on the 1992-2003 Lexus ES300.
What do the numbers on the wires mean?
High-quality wire sets from brands like NGK and Denso are often numbered. These numbers correspond to the cylinder they belong to, ensuring you install the correct length wire in the correct location. This is crucial for the waste spark system on the 1994-2001 models, where specific coils fire specific rear cylinders.
Should I use dielectric grease?
Yes. Applying a small amount of dielectric grease to the inside of the spark plug wire boots is a professional practice. It helps seal out moisture and dirt, prevents the boots from getting stuck to the spark plugs, and aids in electrical insulation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90919-15493 90919-15494 90919-15531
Vehicle fitment varies significantly by year. 1992-1993 models use a full 6-wire set. 1994-2001 models use a 3-wire set for the rear bank. 2002-2003 models do not use spark plug wires. Wires are typically made with a silicone jacket and a carbon or magnetic core to suppress RFI/EMI noise.
