Engine Cooling Fan Blade Guide for 1992-2005 BMW 325i (E36 & E46)
Prevent catastrophic engine damage by learning the symptoms of a failing fan blade on your E36 or E46 BMW 325i.
- The plastic fan blade is a known failure point on 1992-2005 BMW 325i models; it becomes brittle and can explode, causing major damage.
- Inspect the fan blade for cracks regularly. If any are found, replace it immediately to prevent catastrophic failure.
- It is highly recommended to replace the fan clutch at the same time as the fan blade.
- This is a DIY-friendly job, but it requires special reverse-thread tools (32mm thin wrench and a holder).
Is Your BMW 325i Fan Blade a Ticking Time Bomb?
If you own an E36 or E46 BMW, you've likely heard stories about the cooling system. The engine cooling fan blade is a major character in those stories. Over years of heat cycles, the original plastic becomes brittle. This can lead to cracks or, in the worst-case scenario, the fan can explode while the engine is running. This failure, often called a 'fan grenade,' can destroy your radiator, coolant hoses, fan shroud, and even damage the hood, leading to a very expensive repair. 🎬 Watch: See the damage caused when a BMW fan explodes. Regular inspection is key to preventing this common but avoidable failure.
Symptoms of a Failing Fan Blade
Watch for these warning signs. Addressing them early can save you from a much bigger headache.
- Engine Overheating at Idle: The most common symptom. If your temperature gauge climbs in traffic but returns to normal at highway speeds, your fan isn't moving enough air.
- Visible Cracks: During any under-hood check, visually inspect the fan blades. Look for small hairline cracks, especially around the base of each blade where it meets the center hub. Any crack means the blade needs immediate replacement.
- Wobbly Fan: With the engine off, gently try to wiggle the fan. If there is any back-and-forth play, it could indicate a failing fan clutch bearing, which puts immense stress on the fan blade itself. 🎬 Learn how to test your fan clutch with a newspaper. A wobbly fan is dangerous and should be addressed immediately.
- Loud Roaring Noise: If the associated fan clutch seizes, it can cause the fan to spin at full engine speed constantly, creating a loud roaring sound that gets louder with RPMs. This puts unnecessary strain on the plastic blade.
Known Issue: Catastrophic Plastic Failure
The single most important thing to know about the fan blade on the 1992-2005 325i is its tendency to fail from age. The plastic becomes brittle and can break apart without warning, causing extensive damage. It is highly recommended to replace the fan blade as a preventive measure, especially on higher-mileage vehicles or if its age is unknown.
Choosing the Right Aftermarket Fan Blade: Dorman vs. URO Parts
When replacing your fan blade, you don't have to buy from the dealer. Aftermarket options offer significant savings, but quality varies.
OEM / Genuine BMW: This is the benchmark for quality and fit. It's the safest, but most expensive, choice. The most common OEM part number for this application is 11521712058.
Brand Tiers for Aftermarket:
- High-Quality Aftermarket (e.g., Febi Bilstein): Brands like Febi are often OEM suppliers to various car manufacturers and provide a quality level very close to Genuine parts at a lower cost. This is often the best balance of price and reliability.
- Standard Aftermarket (e.g., Dorman): Dorman is a widely available brand that offers a direct replacement part. For a simple plastic component like a fan blade, it can be a cost-effective solution. However, general feedback on Dorman quality can be mixed, so inspect the part carefully before installation.
- Budget Aftermarket (e.g., URO Parts): While the price is tempting, URO Parts has a reputation for inconsistent quality control in the BMW community. There are forum reports of related URO cooling parts (like the fan clutch) failing prematurely and causing significant engine damage. For a part this critical, it may be wise to spend a little more on a more reputable brand.
Pro Tip: Replace the Fan Clutch at the Same Time
You have to remove the fan clutch to replace the fan blade. Since you're already there, it is strongly recommended to replace the fan clutch as well. A failing clutch can cause the new fan blade to fail, and doing both at once saves you from having to do the same job twice.
Cost of Replacing a BMW 325i Engine Cooling Fan Blade
| Part Type | Part Cost | Shop Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New Aftermarket | $32 - $76 | $100 - $200 | $132 - $276 |
| New OEM | $100 - $160 | $100 - $200 | $200 - $360 |
Cost estimates are approximate and can vary by location and repair shop. Labor costs often include replacing the fan clutch at the same time.
Frequently Asked Questions (FAQ)
Can I replace the engine fan blade myself?
Yes, this is a common DIY job for many BMW owners. However, it requires special tools: a thin 32mm wrench and a fan clutch holding tool. The fan clutch nut is also reverse-threaded, meaning you turn it clockwise to loosen. If you are not comfortable with this, a professional mechanic can do the job in about an hour.
What is a 'fan delete' or electric fan conversion?
Some owners choose to remove the mechanical fan and clutch entirely and replace it with an electric fan assembly. This can free up a small amount of horsepower and eliminate the risk of the mechanical fan exploding. However, it requires proper wiring to ensure it turns on at the correct temperatures. For most owners, a new, high-quality mechanical fan and clutch is the simplest and most reliable solution.
🎬 See how to perform a BMW electric fan conversion.Are there any recalls on the 325i fan blade?
There are no specific recalls for the fan blade itself. However, there was a recall (NHTSA 98V178000) for 1991-1994 models concerning the cooling system, where dealers replaced the radiator cap to better manage system pressure during an overheat event. This highlights the importance of the entire cooling system's health on these vehicles.
Does the fan blade fit all 1992-2005 BMW 325i models?
Yes, the 6-cylinder 325i models within the E36 (1992-1995) and E46 (2001-2005) generations use the same style of mechanical fan blade. The common OEM part number is 11521712058, which fits a wide range of 6-cylinder BMWs from this era.

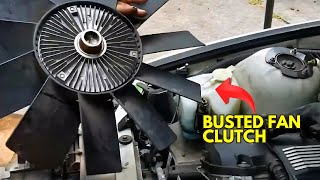

Helpful Videos
Technical Specifications
OEM Part Numbers: 11521712058 11-52-1-712-058

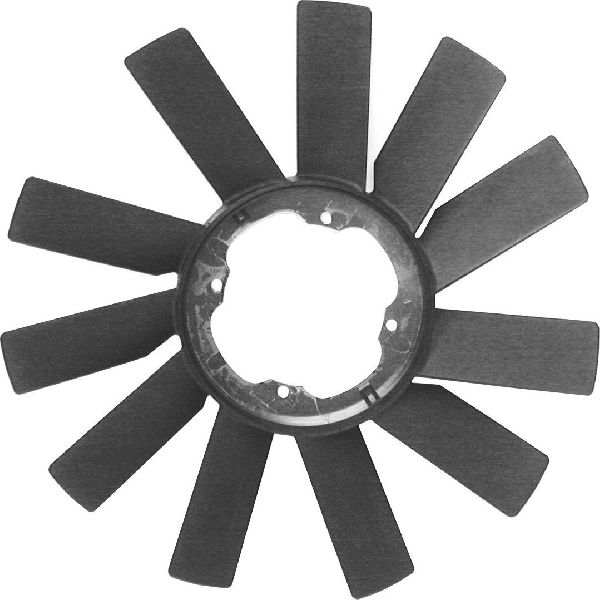

This is a mechanically-driven, 11-blade puller fan that attaches to a viscous fan clutch. The fan clutch nut has a reverse (left-handed) thread.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
