Toyota Camry Oil Pan Guide: Understanding Leaks and Replacement for 1992-2009 Models
If you're seeing oil spots under your Camry, it might be time for a new oil pan.
- Oil leaks are the primary reason for replacement, caused by rust, impact damage, or failing sealant.
- Aftermarket oil pans are a cost-effective and reliable solution for 1992-2009 Camrys.
- Properly cleaning the engine block and applying new RTV sealant is critical for a leak-free repair.
- On some models, part of the exhaust may need to be removed for clearance, increasing job complexity.
Is Your Camry's Oil Pan Leaking?
For the 1992-2009 Toyota Camry, the most common oil pan issue is a leak. These leaks can come from a few places. The pan itself can rust over time, especially in areas where road salt is used in the winter. It can also be damaged by hitting road debris, curbs, or large potholes. Another frequent source of leaks is a failing gasket or, more commonly, the sealant used to create the gasket. Over time, this sealant can become hard and brittle, allowing oil to seep out. Finally, the drain plug can be a source of leaks if it's over-tightened, stripping the threads, or if the washer is old and worn.
Don't Ignore Oil Leaks
Even a small oil leak can lead to major engine damage if the oil level gets too low. Regularly check your oil level and look for drips on your driveway. If you see any, get it checked out.
Choosing an Aftermarket Oil Pan
For a vehicle in the 1992-2009 year range, an aftermarket oil pan is a very practical and cost-effective choice. The original Toyota (OEM) pans are high quality, but aftermarket options from reputable brands offer similar performance for this specific part at a lower cost. Most aftermarket pans are made of stamped steel with a corrosion-resistant coating, just like the original.
When shopping, you don't need to worry excessively about brand names like 'Replacement' or other store brands for a simple part like an oil pan. The key is to ensure the pan is specified for your exact year and engine size (4-cylinder or V6). The main differences between a budget and a premium aftermarket pan are often the quality of the paint finish and whether it includes a new drain plug. Since you'll be reusing your original bolts and applying new sealant, the pan itself is a straightforward component.
Pro Tip: Prepare the Surfaces
The success of your oil pan replacement depends on a clean, oil-free surface for the new sealant to bond to. Take extra time to scrape off all the old sealant from both the engine block and the new pan (if any residue exists). Use brake cleaner on a rag to wipe down both surfaces until they are perfectly clean before applying the new sealant.
Cost to Replace a Toyota Camry Oil Pan (1992-2009)
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $53 - $85 |
| New OEM Oil Pan | $120 - $225 |
| Shop Labor | $360 - $560 |
| Total Professional Replacement (Aftermarket Part) | $413 - $645 |

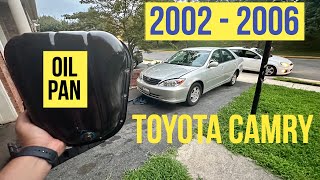

Costs are estimates and can vary based on your location, engine type (4-cyl vs. V6), and the specific repair shop. The V6 models may have higher labor costs. 🎬 Watch this step-by-step guide for replacing a V6 oil pan.
Frequently Asked Questions (FAQ)
Do I need a gasket or just sealant for my Camry's oil pan?
For most 1992-2009 Toyota Camrys, the oil pan is sealed using a liquid gasket maker, often called RTV (Room Temperature Vulcanizing) sealant, instead of a pre-formed physical gasket. It's critical to use a high-quality, oil-resistant RTV sealant and apply a continuous bead for a leak-free seal.

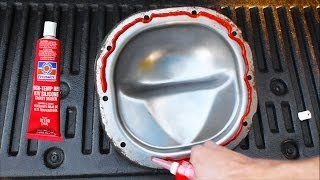

🎬 Learn how to properly apply RTV sealant for a perfect seal.Is replacing the oil pan a DIY job?
For a DIY mechanic with some experience, this is a manageable job. It requires safely lifting and supporting the vehicle, draining the oil, and removing numerous bolts. On some models, you may need to remove a portion of the exhaust pipe to get enough clearance to drop the pan, 🎬 See these helpful tips for removing the pan on 2.2L engines. which adds to the difficulty. If you are not comfortable working under your car, it's best to leave this to a professional.
Should I buy an OEM or aftermarket oil pan?
For this age of vehicle, a quality aftermarket pan is a smart financial choice. OEM parts are excellent but more expensive. Since the oil pan is a relatively simple component, a well-made aftermarket part will function correctly and last for many years, especially since common failure points are rust or impact damage, which can affect any pan.
Were there any recalls for the 1992-2009 Camry oil pan?
No, there have been no specific recalls issued by the NHTSA for oil pan failures on the 1992-2009 Toyota Camry. Leaks are generally due to age, corrosion, or physical damage rather than a manufacturing defect.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12101-74111 12101-74110 12101-03030 12101-03031 12101-0V010 12101-28060 12101-0H050
The oil pan for the 1992-2009 Toyota Camry is typically made of stamped steel and uses Formed-in-Place Gasket (FIPG) or RTV sealant instead of a separate physical gasket. The drain plug thread size is commonly M12x1.25. Pan shape and bolt count vary between 4-cylinder and V6 engine models and across different generations within this year range.
