Ford E-350 Econoline A/C Compressor Clutch Guide (1993-1996)
Everything you need to know before replacing the A/C compressor clutch on your 1993-1996 Ford E-350 Econoline van.
- A failed A/C clutch is common on older vans; symptoms include noise, no cold air, and visible lack of engagement.
- Before replacing the clutch, check fuses, relays, and refrigerant pressure, as these are simpler and cheaper fixes.
- For long-term reliability, consider replacing the entire compressor assembly, not just the clutch.
- If the clutch bearing has seized (constant grinding), do not drive the vehicle, as it can break the serpentine belt.
Symptoms of a Failing A/C Clutch
On a 1993-1996 Ford E-350, an A/C clutch failure can show several signs. Being aware of them can help you diagnose the problem before it leaves you without cool air on a hot day.
- No Cold Air: The most obvious symptom is when your A/C blows warm or ambient air. If the clutch doesn't engage, the compressor won't turn on to cool the air.
- Grinding or Squealing Noises: A loud grinding or squealing sound from the engine bay when you turn the A/C on can point to a worn-out bearing in the clutch pulley. If the noise is constant, even with the A/C off, the pulley bearing is likely failing.
- Clutch Not Engaging: You can visually inspect the compressor. When the A/C is turned on, the front plate of the clutch should snap onto the spinning pulley and rotate with it. If it remains stationary, there's a problem.
- Intermittent Cooling: If the A/C works sometimes and not others, the clutch might be struggling to engage or stay engaged. This can be caused by an electrical issue or a clutch that is worn and slipping.
Check the Simple Things First
Before assuming the clutch has failed, check for simpler issues. A blown fuse, a bad relay, or low refrigerant pressure can all prevent the clutch from engaging. The system has pressure switches that will stop the clutch from turning on if the refrigerant level is too low, to protect the compressor.
Choosing an Aftermarket A/C Clutch
For a vehicle as old as a 1993-1996 E-350, finding a new OEM (Original Equipment Manufacturer) clutch from Ford is unlikely. The aftermarket is your primary source for these parts. Brands like Global Parts Distributors (GPD), Four Seasons, and UAC are common choices. GPD is a U.S.-based brand that specializes in A/C components and subjects its parts to durability and leak testing.
Clutch Only vs. Full Compressor Assembly
While you can buy just the clutch assembly, it's often a better idea to replace the entire A/C compressor on an older vehicle. The cost of a complete compressor assembly (which includes a new clutch) is often not much more than the clutch alone. Furthermore, if the clutch failed because the compressor itself was starting to seize, a new clutch will fail again quickly. Replacing the whole unit provides greater peace of mind.
Known Issues, Recalls, and TSBs
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any specific safety recalls or technical service bulletins (TSBs) related to the A/C compressor or clutch assembly for the 1993-1996 Ford E-350 Econoline. Any failures are typically due to the age and wear of the components. A general TSB from Ford exists that outlines standard A/C service procedures for all its vehicles from that era, but it does not point to a specific defect.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Clutch Assembly | $80 - $100 |
| New Aftermarket Compressor Assembly | $150 - $250 |
| Shop Labor (Clutch Only) | $150 - $300 |
| Shop Labor (Full Compressor) | $250 - $450+ (includes system evacuation & recharge) |
Costs are estimates and can vary based on location and shop rates. Replacing the full compressor requires recovering old refrigerant and recharging the system, which adds to the labor cost.
Frequently Asked Questions (FAQ)
Can I drive my E-350 with a bad A/C clutch?
Yes, but with caution. As long as the pulley spins freely, you can drive the van with the A/C turned off. However, if the clutch bearing has seized, it can damage or break the serpentine belt. A broken belt will cause you to lose power steering, the alternator, and the water pump, leading to a breakdown. If you hear a constant grinding noise, it's best to get it fixed immediately.
Can I replace just the A/C clutch myself?
This is a job for an advanced DIYer. While it can sometimes be done without removing the compressor from the van, it requires special tools like a clutch puller kit and snap-ring pliers. Access can be very tight in the E-350 engine bay. If you decide to replace the entire compressor, the system must be legally and safely evacuated of refrigerant by a certified shop before you begin work.
Does my 1993-1996 E-350 use R12 or R134a refrigerant?
This period was a transition time. The changeover from R12 to R134a refrigerant happened around 1993-1994. Check the sticker under the hood of your van; it will specify which refrigerant your system uses. If it has been converted, there should be a label indicating the change and different service port fittings. Using the wrong type will damage your A/C system.
Why did my A/C clutch fail?
Failure is usually due to age and wear. The most common reasons are the clutch's internal bearing wearing out from constant use, or the electrical coil burning out. An excessive air gap between the clutch plate and pulley, caused by wear, can also prevent it from engaging properly.
Technical Specifications

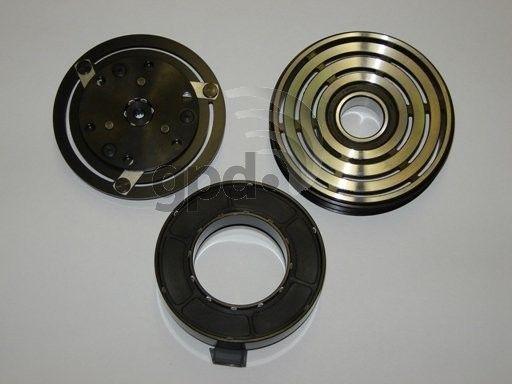

The A/C system on these vans typically uses a Ford FS10 style compressor. The clutch assembly includes the pulley with bearing, the electromagnetic coil, and the hub (clutch plate).
