Eagle Vision Serpentine Belt Guide (1993-1997): Symptoms and Replacement
Keep your 1993-1997 Eagle Vision running smoothly by understanding its serpentine belt system.
- A failing serpentine belt gives warnings like squealing noises or visible cracks.
- A complete belt failure is critical and will cause the engine to overheat and lose power steering.
- For this vehicle's age, quality aftermarket brands like Gates, Continental, and Dayco are excellent choices.
- Always inspect the belt tensioner and idler pulleys when replacing the belt.
Signs of a Failing Serpentine Belt
A serpentine belt is a wear item, meaning it will eventually need to be replaced. For a vehicle like the 1993-1997 Eagle Vision, it's important to inspect the belt regularly. Look for cracks, fraying, missing ribs, or a glazed, shiny appearance on the belt's surface. 🎬 Watch this video to see visual signs of belt wear. Here are the most common symptoms that your belt needs attention:
- Squealing or Chirping Noises: This is the most common sign. A high-pitched squeal, especially when you start the engine cold or during damp weather, often means the belt is slipping because it's worn or loose.
- Accessory Failure: If your power steering becomes heavy, the A/C stops blowing cold air, or the battery warning light comes on, the belt may be slipping badly or may have already broken.
- Engine Overheating: The serpentine belt drives the water pump. If the belt fails, the water pump stops, and your engine will overheat very quickly. This is a critical failure that requires you to stop the engine immediately.
- Visible Wear and Tear: Pop the hood and look at the belt. If you see multiple cracks per inch, frayed edges, or contamination from oil or coolant, it's time for a replacement, even if it's not making noise yet.
Critical Failure Warning
A broken serpentine belt will cause your Eagle Vision to lose power steering and stop charging the battery. Most importantly, it will stop the water pump, leading to rapid engine overheating and potential for severe engine damage. If your belt breaks, pull over safely as soon as possible and turn off the engine.
Choosing the Right Aftermarket Belt
For a 1993-1997 Eagle Vision, finding a new original equipment (OEM) Mopar belt is highly unlikely. Fortunately, the aftermarket offers excellent, high-quality replacements that often meet or exceed original specifications. Brands like Gates, Dayco, and Continental are major manufacturers that produce reliable belts made from modern EPDM rubber, which is more durable and resistant to heat and cracking than older neoprene belts.

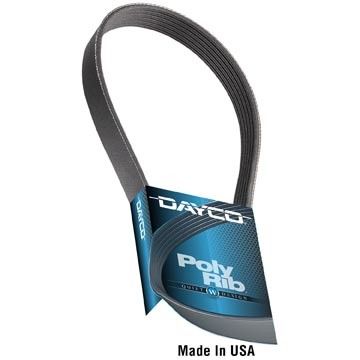

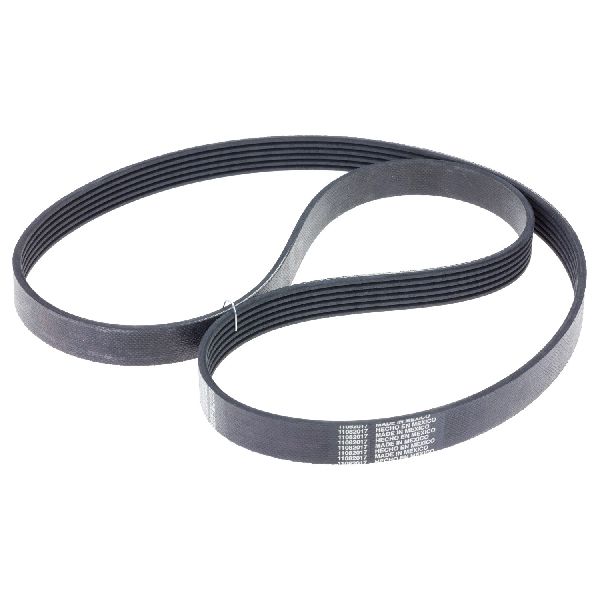

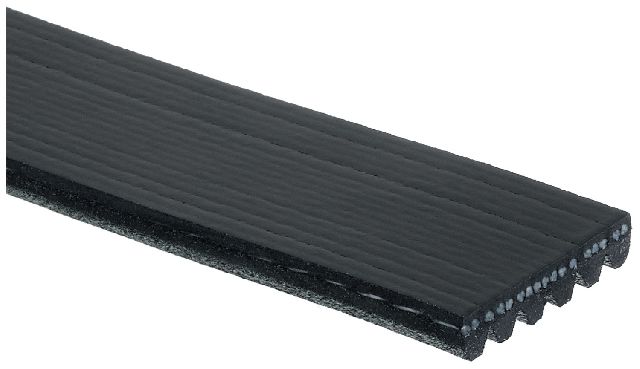

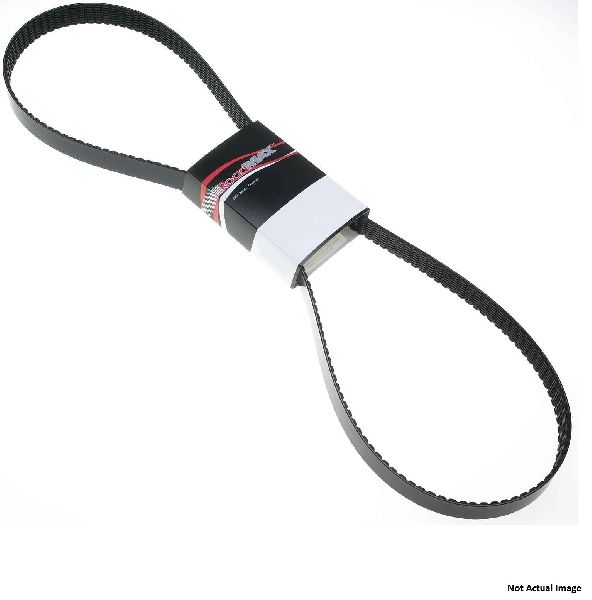

- Premium Brands (Gates, Continental, INA): These brands are often considered top-tier in the aftermarket. Gates and Continental (formerly Goodyear Gatorback) are well-regarded for their quiet operation and durability. INA is a known OEM supplier for many car manufacturers, so their aftermarket parts are typically high quality.
- Standard Brands (Dayco, Crown Automotive): Dayco is a long-standing brand that produces reliable belts that are widely available and offer good performance for the price. Crown Automotive specializes in Chrysler vehicles and can be a good source for vehicle-specific parts.
Pro Tip: When replacing the belt, it's a very good idea to inspect the belt tensioner and any idler pulleys. These components can also wear out, causing noise or leading to premature failure of the new belt. If the tensioner pulley feels rough when spun by hand or the tensioner arm is stiff, replace it at the same time as the belt.
🎬 Learn how to identify the symptoms of a bad tensioner.Estimated Costs
| Part | Estimated Cost |
|---|---|
| New Aftermarket Serpentine Belt | $21.16 - $47.40 |
| Shop Labor for Installation | $75 - $150 |
Frequently Asked Questions
Are there any recalls for the Eagle Vision serpentine belt?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls specifically related to the serpentine belt for the 1993-1997 Eagle Vision. There were other recalls for this vehicle, but none involve the belt drive system.
How often should I replace the serpentine belt on my Eagle Vision?
Modern serpentine belts typically last between 60,000 and 100,000 miles. However, due to the age of a 1993-1997 vehicle, the belt's life is also affected by time. It's best to inspect the belt annually for signs of aging like cracks and brittleness and replace it based on condition rather than mileage alone.
Is replacing the serpentine belt a DIY job?
Yes, for many home mechanics, this is a feasible DIY job. The process involves using a wrench or breaker bar to release the tension from the automatic belt tensioner, slipping the old belt off, and routing the new one according to the diagram (usually found on a sticker in the engine bay). Ensure you have the correct belt routing before you begin.
🎬 Follow this step-by-step guide to replace your serpentine belt.What's the difference between the belts for the 3.3L and 3.5L engines?
The 3.3L and 3.5L engines used in the Eagle Vision have different accessory layouts and therefore require different length serpentine belts. It is critical to order the correct belt for your specific engine size to ensure proper fit and tension. Always verify the part fitment for your exact year and engine before purchasing.
Helpful Videos
Technical Specifications
The key specification is the belt's length and number of ribs, which varies between the 3.3L and 3.5L engines. Belts are typically made of EPDM (Ethylene Propylene Diene Monomer) rubber.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
