Jeep Grand Cherokee ZJ (1993-1998) MAP Sensor: A Complete Guide
If your ZJ has a rough idle, poor gas mileage, or stalls, the MAP sensor is a likely culprit and an easy fix.
- A bad MAP sensor commonly causes rough idle, poor gas mileage, and stalling on a ZJ Grand Cherokee.
- Replacement is a very simple DIY job, taking less than 15 minutes with a T-25 Torx driver.
- Always check the small vacuum elbow and hose for cracks before buying a new sensor, as a leak causes similar issues.
- The part number is different for 1996-older and 1997-newer models; ensure you get the correct one.
Symptoms of a Bad MAP Sensor in a ZJ Grand Cherokee
A failing MAP sensor can make your Jeep run poorly. Because it directly controls the air-fuel mixture, the symptoms are often noticeable and shouldn't be ignored. 🎬 See a detailed breakdown of common bad MAP sensor symptoms. You might experience several issues at once.
- Rough Idle: This is one of the most common signs. An unstable idle can make the engine shake or even stall when you're stopped.
- Poor Fuel Economy: If the sensor sends a bad signal, the computer might inject too much fuel, causing a rich condition. You'll notice you're filling up the gas tank more often.
- Black Smoke from Exhaust: A very rich fuel mixture can result in black smoke coming from the tailpipe, which is unburnt fuel.
- Hesitation or Stalling: Your Grand Cherokee might hesitate when you accelerate, or it could stall, especially after it has warmed up.
- Check Engine Light: A faulty MAP sensor will almost always trigger the Check Engine Light. Common codes include P0107 (low input) and P0108 (high input).
Don't Mistake It for Other Problems
The symptoms of a bad MAP sensor can be similar to a bad Throttle Position Sensor (TPS) or a vacuum leak. Always check the small rubber elbow and vacuum line connected to the MAP sensor for cracks or looseness before replacing the sensor itself. A vacuum leak can cause the same symptoms.
Choosing a New Aftermarket MAP Sensor
When it comes to sensors for these Jeeps, quality matters. While OEM Mopar parts are often recommended by long-time owners for their reliability, a quality aftermarket part can be a good, affordable choice.
Aftermarket sensors are not all created equal. Some brands invest in quality materials and calibration, while others are mass-produced with less quality control. For a critical sensor like the MAP, choosing the absolute cheapest option can sometimes mean you'll be replacing it again soon. Look for parts that offer a warranty and have positive reviews from other Jeep owners. Even if a part is inexpensive, a warranty provides some assurance and an easy replacement process if it fails prematurely.
Part Number Varies by Year
Be aware that the MAP sensor part and its electrical connector are different for earlier and later ZJ models. 1996 and older models use a different sensor than 1997 and 1998 models. Always verify the part number fits your specific year and engine before ordering.
Typical Replacement Costs
Replacing the MAP sensor is an inexpensive repair, especially if you do it yourself. The part itself is affordable, and the labor is minimal.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket MAP Sensor | $26 - $44 |
| New OEM (Mopar) MAP Sensor | $100 - $120+ |
| Shop Labor | $40 - $80 |
Frequently Asked Questions
Where is the MAP sensor located on a 1993-1998 Grand Cherokee?

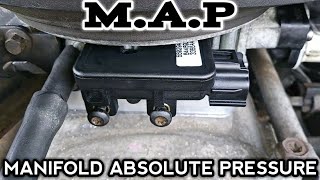

The MAP sensor is located on the front of the throttle body on the intake manifold. 🎬 Watch this video to locate the sensor on V8 engines. It is typically held in place by two T-25 Torx screws and has a small rubber elbow connecting it to a vacuum port.
Is replacing the MAP sensor a difficult job?
No, this is a very easy job suitable for any DIYer. 🎬 Follow this step-by-step guide to replace your MAP sensor. It usually takes less than 15 minutes and only requires simple hand tools, like a T-25 Torx driver or bit.
Do I need to reset the computer after replacing the MAP sensor?
It is a good practice to reset the Engine Control Unit (ECU) after replacing the sensor. You can do this by disconnecting the negative battery cable for about 10-15 minutes. This allows the computer to clear any stored trouble codes and relearn its parameters with the new sensor.
Are there any recalls for the MAP sensor on the ZJ Grand Cherokee?
No, there are no specific recalls for the MAP sensor on the 1993-1998 Jeep Grand Cherokee. There were major recalls related to the fuel tank's position in rear-end collisions (NHTSA 13V-252), but this does not involve the MAP sensor.
Helpful Videos
Technical Specifications
OEM Part Numbers: 33000153 56028303 56029405
The MAP sensor for the 1993-1998 Grand Cherokee is a 3-pin sensor that mounts to the throttle body. It uses a 5V reference signal from the ECU. Part numbers vary by model year, with 56028303 used for 1996 and older models and 56029405 for 1997 and later models. Another common part number for early models is 33000153.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
