Audi S4 ABS Wheel Speed Sensor Guide: 1993-1999
Is your ABS light on? This guide explains common failures and helps you choose the right replacement sensor for your C4 Audi S4.
- A lit ABS warning light is the primary symptom of a failed wheel speed sensor.
- Use a diagnostic scanner to identify the specific failed sensor before purchasing a replacement.
- Corrosion is the biggest challenge during replacement; soak the old sensor in penetrating oil before removal.
- Quality aftermarket brands like Delphi and Vemo are reliable and cost-effective alternatives to expensive OEM parts.
Understanding ABS Wheel Speed Sensor Failure in Your S4
If you own a C4-generation Audi S4, you know that keeping it in top mechanical shape is key. A common issue that triggers a dashboard warning light is a failing ABS wheel speed sensor. This component is exposed to harsh conditions at the wheels, and failure is common over time due to contamination, moisture, or damage from road debris. While it's a safety-critical part, replacement is straightforward for a DIY mechanic with the right information.
Symptoms of a Bad ABS Wheel Speed Sensor
The signs of a failing sensor are usually very clear. Diagnosing the issue correctly before buying parts is essential. You will likely experience one or more of the following:
- ABS Warning Light: This is the most common symptom. A fault in the system will cause the ABS light on your instrument cluster to stay on.
- Traction Control Light: Because the traction control system also relies on wheel speed data, its warning light may also illuminate.
- Disabled Safety Systems: When the ABS light is on, the anti-lock braking and traction control systems are typically disabled. Your brakes will function like a standard system without ABS.
- Erratic Braking at Low Speeds: In some cases, a faulty sensor can send incorrect signals, causing the ABS to activate unnecessarily at very low speeds, like when pulling into a parking spot.
Pro Tip: Diagnose Before You Buy
Use an OBD2 scanner capable of reading ABS codes to determine which specific wheel sensor has failed. This prevents you from replacing the wrong part. Common fault codes point to an implausible signal or a specific sensor circuit failure.
Choosing the Right Aftermarket Sensor: OEM vs. Aftermarket
For a vehicle from the 1990s, you don't need to go to the dealer for a reliable part. High-quality aftermarket brands offer excellent performance and value. The key is to choose a reputable manufacturer.
- OEM (Original Equipment Manufacturer): These are parts from the original supplier to Audi. They offer a guaranteed fit and quality but come at the highest price.
- Delphi: Delphi is a well-known OE supplier for many car brands. Their sensors are built to meet or exceed original standards, often featuring plated connectors to resist corrosion. User reviews are generally positive, citing good fit and function, making them a strong choice for your S4.
- Vemo: Vemo positions itself as a supplier of high-quality, German-engineered replacement parts. They often come with a warranty and are a reliable alternative to more expensive brands, providing a good balance of cost and quality.
Both Delphi and Vemo are solid aftermarket options that provide a cost-effective repair without sacrificing reliability.
🎬 See this walkthrough for a complete sensor replacement.Associated Costs
The cost of replacing an ABS sensor can vary. The part itself is the main expense, while labor is typically minimal unless the old sensor is seized.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Sensor (Delphi, Vemo) | $81.18 - $286.02 |
| New OEM Sensor | $200 - $400+ |
| Shop Labor (1 hour) | $120 - $200 |
| Total (DIY) | $81.18 - $286.02 |
| Total (Shop Installed) | $201.18 - $486.02 |
A Note on Installation
The biggest challenge of this job is removing the old sensor. They are prone to seizing in the wheel hub due to rust. The single retaining bolt can easily shear off if you're not careful. Be sure to soak the sensor and bolt with penetrating oil for several hours before attempting removal. If the sensor is stuck, it may need to be carefully broken apart to be removed.
🎬 Watch how to handle a stubborn or broken sensor.Frequently Asked Questions
Can I drive my S4 with a bad ABS sensor?
Yes, but it is not recommended for long. Your car will still brake, but the anti-lock braking and traction control systems will be inactive. This increases the risk of losing control during an emergency stop or in slippery conditions.
Do I need to replace all four sensors at once?
No. You only need to replace the sensor that has failed. A proper diagnostic scan will tell you which wheel is causing the problem. However, if one has failed due to age, the others may not be far behind.
How do I know which part number to order?
Verifying the correct part number is crucial. Front and rear sensors are often different. If possible, inspect the old sensor for a part number after you remove it. When shopping, use your vehicle's specific information to ensure compatibility.
Is any special programming required after installation?
No. For this generation of Audi, replacing the sensor is a plug-and-play repair. After installation, the fault code should be cleared from the ABS module with a scan tool, and the warning light should turn off.
Helpful Videos
Technical Specifications
OEM Part Numbers: Note: Part numbers for the 1993-1999 C4 chassis are difficult to verify. Always confirm fitment with the seller using your vehicle's VIN. Part numbers for later models like 4B0927803B are not correct for this generation.

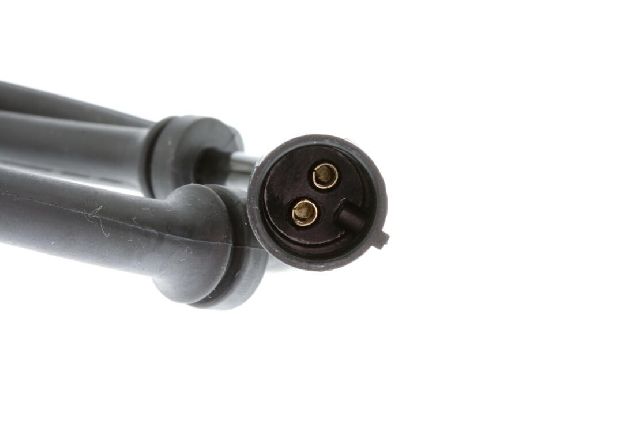

Passive, 2-pin sensor that generates an AC signal.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
