A Practical Guide to the 1993-1999 Dodge Dakota Engine Water Pump
Keep your Magnum V6 or V8 running cool by understanding and choosing the right replacement water pump.
- A coolant leak from the front of the engine is the #1 sign of a failing water pump on a Dakota.
- For Magnum V6/V8 engines, use thread sealant on the four long water pump bolts to prevent leaks.
- While replacing the pump, it is highly recommended to also replace the serpentine belt, thermostat, and bypass hose.
- A high-quality aftermarket pump from a brand like Gates, Dayco, or GMB is a cost-effective and reliable repair for these trucks.
Is Your Dakota's Water Pump Failing?
A failing water pump gives you warnings before it quits. If you notice any of these signs, it's time to inspect the pump. Ignoring them can lead to your engine overheating, which may cause serious and expensive damage like a blown head gasket.
Common Failure Symptoms
- Coolant Leak: This is the most common sign. You may see puddles of green or orange fluid under the front of your truck. Look for drips or a white, crusty trail coming from the pump itself, especially from the small "weep hole" on the bottom.
- Grinding or Whining Noise: A rhythmic squealing or a rough, grinding sound from the front of the engine that changes with RPMs often means the pump's internal bearings are failing.
- Wobbly Pulley: With the engine off, grab the fan and try to wiggle it. If there is noticeable play or wobble, the water pump bearing is worn out.
- Engine Overheating: If your temperature gauge climbs into the red, the pump may no longer be circulating coolant effectively. This is a critical symptom; stop driving immediately.
Choosing the Right Aftermarket Water Pump
For a 1993-1999 Dakota, a new aftermarket water pump is a smart and affordable choice. The original Mopar parts are good, but can be expensive and hard to find. High-quality aftermarket brands offer reliable performance for a fraction of the price. The water pump for the Magnum V6 and V8 engines is the same part, making it easy to find.
Aftermarket Brand Tiers
- Premium Aftermarket (Gates, Dayco): Gates and Dayco are well-known for making quality belts and cooling components. They are often considered a safe and reliable choice for a daily driver or work truck. These pumps are engineered to meet or exceed original specifications.
- Standard / OE-Equivalent (GMB, ACDelco): GMB is a major manufacturer that often supplies parts to car companies and other brands. They are generally a solid, dependable option. ACDelco is another trusted name that provides quality replacement parts for many vehicles, including Dodge.
- Economy (WJB, Store Brands): Economy pumps are the most affordable. While they can get you back on the road, some owner experiences suggest their lifespan can be inconsistent. They are best for a vehicle that is not driven daily or if you are on a tight budget, but be aware you may be replacing it again sooner than a premium part.
Estimated Replacement Costs
The cost to replace a water pump varies by who does the work—you or a professional mechanic. The prices below are estimates.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $40 - $135 |
| New OEM Mopar Water Pump | $140 - $210 |
| Shop Labor | $250 - $400 |
| DIY Total (Part Only) | $40 - $135 |
| Shop Total (Parts & Labor) | $290 - $535+ |
Frequently Asked Questions (FAQ)
Should I replace anything else with the water pump?
Yes. This is the perfect time to inspect and replace the serpentine belt, the fan clutch, the thermostat, and the radiator hoses. You have to remove most of these parts to get to the pump anyway, so you'll save on labor. Also, check the small bypass hose; they are known to get brittle and leak.
Is this a good DIY job for a beginner?
Yes, if you have basic mechanical skills and tools. The job requires draining the coolant, removing the belt and fan, and accessing bolts at the front of the engine. The most important steps are thoroughly cleaning the old gasket material off the engine block and properly sealing the new pump.
What is the "bypass hose"?
The bypass hose is a small, U-shaped hose that connects the water pump to the intake manifold on Magnum engines. It allows coolant to circulate within the engine when the thermostat is closed. These hoses can become brittle and are a common source of leaks. It is highly recommended to replace it when you replace the water pump.
Do I need sealant for the bolts?
Yes. On the Magnum V6 and V8 engines, four of the long water pump bolts go directly into the engine's coolant passages. It is very important to apply a thread sealant, like Teflon paste or Teflon tape, to the threads of these bolts to prevent coolant from leaking past them.

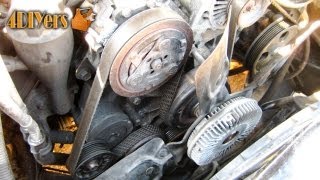

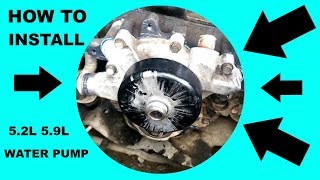

Helpful Videos
Technical Specifications
OEM Part Numbers: 53021018AB 4626054AD 68382493AA
The water pump for the 3.9L V6, 5.2L V8, and 5.9L V8 Magnum engines is a mechanically-driven centrifugal pump. It is mounted to the front of the engine block and is driven by the serpentine belt. The pump for the 2.5L 4-cylinder engine is a different design.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
