GMC C1500 Engine Coolant Bypass Hose Guide (1993-1999)
A small hose causing big problems—here's what every 1993-1999 GMC C1500 owner needs to know about the coolant bypass hose.
- A leaking bypass hose is often mistaken for a water pump leak; inspect it carefully before replacing the pump.
- Symptoms include a coolant smell, mysterious coolant loss, and potential overheating.
- For best results, choose an ACDelco or Gates replacement hose, as they are OEM-equivalent quality.
- This is a simple and inexpensive DIY repair that can prevent catastrophic engine failure from overheating.
Is Your C1500's Coolant Bypass Hose Failing?
Like all rubber parts, the coolant bypass hose wears out over time. Heat and pressure cause the rubber to crack, swell, or become brittle. Because this hose is often located directly above the water pump, a leak can be tricky to diagnose. Coolant may drip onto the hot water pump or engine block and evaporate before it ever hits the ground, leaving you with a mysterious coolant loss.
Common Failure Symptoms:
- Coolant Smell: A sweet, syrupy smell from the engine bay is a classic sign of a coolant leak, even if you can't see it.
- Low Coolant Level: You may find yourself repeatedly topping off the coolant reservoir with no obvious puddle under the truck.
- Visible Leaks or Stains: You might see green, orange, or pink residue (depending on your coolant type) on the water pump or intake manifold.
- Engine Overheating: A significant leak will lower coolant levels enough to cause the engine temperature to rise, which can lead to serious engine damage if ignored.
Don't Mistake It for a Water Pump Leak
A leaking bypass hose often drips directly onto the water pump. Many owners have replaced their water pump only to find the leak continues. Before starting a big repair, use a pressure tester and a flashlight to carefully inspect the bypass hose and its connections at the intake manifold and water pump.

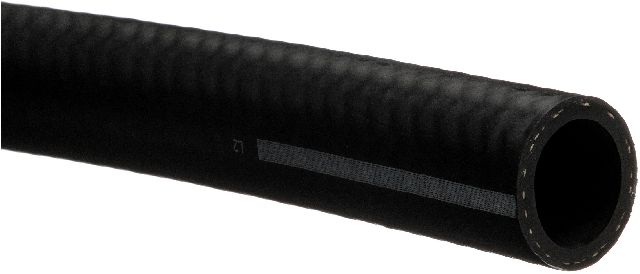

Choosing the Right Aftermarket Bypass Hose
For a truck like the 1993-1999 C1500, aftermarket hoses offer excellent value and quality. Here’s a breakdown of the common brands available:
- Tier 1 (OEM Equivalent): ACDelco and Gates. ACDelco is GM's own parts brand, ensuring a perfect match. Gates is a highly respected brand that is often the original equipment manufacturer for GM, meaning they likely made the hose that came on your truck from the factory. You can't go wrong with either for fit and long-term durability.
- Tier 2 (Quality Aftermarket): Continental. This is another premium brand known for producing high-quality rubber components that meet or exceed OEM standards.
- Tier 3 (Standard/Economy): Dayco. Dayco hoses are a reliable and budget-friendly option that will get the job done. While generally good, some professional mechanics have occasionally noted minor fitment differences compared to Gates or ACDelco.
Pro Tip: Replace the Clamps!
Always use new hose clamps when replacing any coolant hose. Old clamps can lose their tension over time, leading to new leaks. Simple worm-gear clamps are inexpensive and effective.
Cost of Replacing the Coolant Bypass Hose
The cost is low, making this a smart preventative repair. The wide price range for the part is due to some kits including extra fittings.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Hose | $14 - $128 |
| Shop Labor | $100 - $200 |
| Total Professional Repair | $114 - $328 |
Frequently Asked Questions (FAQ)
Is this a difficult repair to do myself?
No, this is a great DIY job for beginners. It requires basic hand tools like a screwdriver and pliers. The main steps are draining some coolant, removing the old hose clamps, swapping the hose, and then refilling and bleeding the system to remove air bubbles. The hardest part is often just reaching the clamps.
What kind of coolant should I use for my 1993-1999 C1500?
These trucks originally used traditional green Inorganic Acid Technology (IAT) coolant. However, many have been switched to GM's orange Dex-Cool or a universal all-makes/all-models coolant. Check what color is currently in your system. If you are unsure, it is best to flush the entire system and refill with a single type to prevent chemical reactions.
Are there any recalls for the coolant bypass hose on my truck?
No, there are no specific recalls or technical service bulletins (TSBs) from GM or the NHTSA for the engine coolant bypass hose on the 1993-1999 GMC C1500.
What is the heater hose quick-disconnect and should I be worried about it?
Many GMT400 trucks have a plastic quick-disconnect fitting for the heater hose where it connects to the intake manifold. This fitting is known to become extremely brittle and often breaks during removal. While not part of the bypass hose itself, it's in the same area. Be very careful when working near it. Many owners choose to replace it with a more durable metal fitting as a preventative measure.
Technical Specifications
The bypass hose for Vortec V8 engines (1996-1999) is an external hose, typically molded, connecting the water pump housing to a port on the intake manifold. It allows coolant to circulate when the thermostat is closed.
