Chevrolet C2500 A/C Compressor Clutch Guide (1993-2000)
Is your truck's A/C blowing warm? The problem might be a simple clutch failure, not the whole compressor.
- A failing clutch does not always mean you need a new compressor; replacing just the clutch is a viable, cost-effective repair.
- A successful DIY replacement requires special tools, including A/C clutch pullers and snap ring pliers.
- Before ordering parts, confirm the compressor itself is not seized, as this would require a full compressor replacement.
- Properly setting the 'air gap' with shims during installation is critical for the new clutch to function correctly.
Is Your C2500 A/C Clutch Failing?
On the GMT400 platform trucks like your C2500, the A/C compressor clutch is a common failure point. Over time, the constant engagement and exposure to engine heat can wear out its components. Understanding the symptoms can help you decide if you need a new clutch or a full compressor replacement.
- Intermittent Cooling: The A/C blows cold, then warm, especially at higher engine speeds. 🎬 Watch how to diagnose and adjust a slipping A/C clutch. This can happen when a worn clutch with an excessive air gap can't stay engaged against the pulley.
- Loud Noises: A high-pitched squealing or a grinding noise when the A/C is turned on often points to a worn-out or seized bearing inside the clutch pulley. If the noise is present even when the A/C is off, the bearing is likely failing.
- Clutch Won't Engage: You turn on the A/C, but the center plate of the clutch doesn't start spinning with the pulley. This could be a failed electromagnetic coil, a bad relay, or an electrical issue.
- Visible Damage: In some cases, you might see signs of burning, melted plastic, or rust and metal flakes around the clutch, indicating an electrical failure or severe wear.
Pro Tip: With the engine off, look at the front of your A/C compressor. The outer pulley should spin freely by hand. The center plate should not. When the A/C is on and the engine is running, that center plate should be spinning along with the pulley. If it's not, the clutch is not engaging.
Choosing an Aftermarket A/C Clutch
For a vehicle from the 1993-2000 model years, finding a new OEM A/C clutch is unlikely. Aftermarket is the most practical and cost-effective solution. Brands like Four Seasons are common suppliers for these parts. While some online reviews show mixed experiences with aftermarket A/C components, many users report success, especially when the rest of the system is in good health. The key is proper installation.
Warning: Before replacing just the clutch, ensure the compressor itself isn't seized. Try to turn the center hub of the clutch with the engine off. If it's completely locked up, you will need to replace the entire compressor assembly, as a new clutch will just burn up again.
🎬 Decide whether to replace just the clutch or the compressor.Cost to Replace a C2500 A/C Compressor Clutch
| Part Type | Estimated Part Cost |
|---|---|
| New Aftermarket (Clutch Only) | $170 - $171 |
| Shop Labor | $150 - $300 |
| Total Estimated Cost | $320 - $471 |
Cost estimates are based on market research and may vary by location and supplier.
Frequently Asked Questions
Can I replace just the A/C clutch on my C2500?
Yes. If the compressor itself is not leaking or seized, you can replace just the clutch assembly (hub, pulley, and coil). This saves you from having to open the sealed refrigerant system, which saves time and money on labor and avoids the need for a refrigerant recharge.
Is replacing an A/C clutch a DIY job?
It can be, but it requires special tools. You will need snap ring pliers and a specific A/C clutch puller/installer tool kit to remove the old clutch and press the new one on without causing damage. Access on these trucks is often tight, but the job can typically be done without removing the compressor from the engine.

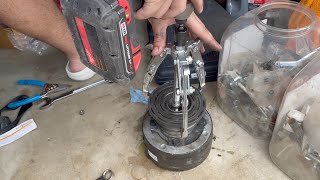

🎬 See a step-by-step guide for replacing the Harrison R4 clutch.What is the "air gap" and why is it important?
The air gap is the tiny space between the clutch plate and the pulley when the A/C is off. It must be set to a specific tolerance (usually around 0.020-0.035 inches) using small washers called shims. If the gap is too large, the electromagnet won't be strong enough to engage the clutch properly, especially at high RPMs. If it's too small, the clutch may drag when it's supposed to be off.
Were there any recalls for the A/C system on the 1993-2000 Chevrolet C2500?
No, searches of the NHTSA database did not find any safety recalls specifically related to the A/C compressor or clutch for this vehicle range. There are some general GM Technical Service Bulletins (TSBs) for A/C systems of this era, but they often relate to refrigerant charge levels or cycling switch calibrations, not the clutch itself.
Helpful Videos
Technical Specifications

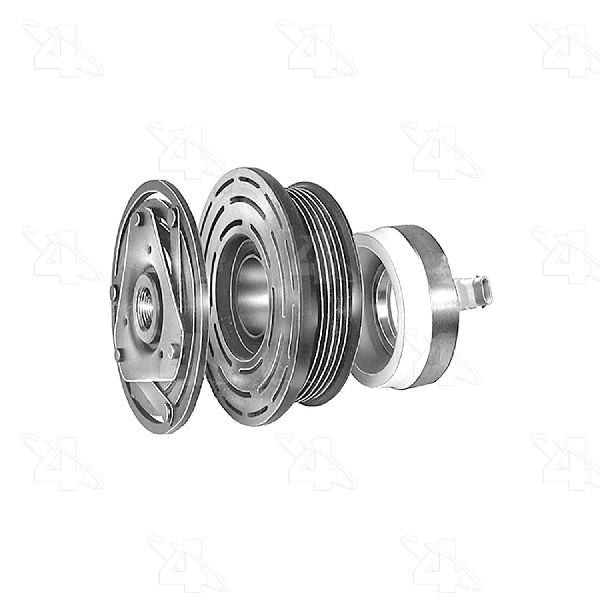

Fits Harrison/Delphi HT6 style compressors commonly used on 1993-2000 Chevrolet C2500 trucks. The clutch is an electromagnetic design that includes a pulley with bearing, a front plate (hub), and an electromagnetic coil. Requires setting a specific air gap upon installation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
