GMC C3500 Ignition Control Module Guide for 1993-2000 Models
Fix your truck's stalling, no-start, or rough running issues by understanding the ignition control module.
- Heat is the primary cause of failure; always apply the included thermal paste to the new module.
- The most common symptom is the engine stalling when hot and refusing to restart until it cools down.
- Delphi was a GM company and is considered an OEM-quality replacement part for your truck.
- This part is NOT related to the major GM ignition switch recall, which affected different vehicles.
Symptoms of a Failing Ignition Module
The most common complaint for a bad ignition module on these GMT400 trucks is a heat-related failure. The engine will run fine when it's cold, but after 15-20 minutes of driving, it may start to sputter, misfire, or stall completely. Often, the truck will refuse to restart until the module has cooled down.
- Engine Stalls When Hot: The truck suddenly dies at a stoplight or while driving and won't restart until it sits for a while.
- No-Start Condition: The engine cranks over normally but will not fire up because there is no spark. 🎬 Watch: How to test your ignition module with a test light.
- Rough Idle and Misfiring: You may feel the engine shaking or bucking, especially under load or during acceleration.
- Loss of Power: The truck feels sluggish and doesn't accelerate as it should.
- Check Engine Light: A failing module can trigger a trouble code and illuminate the check engine light.
Ignition Module vs. Ignition Switch Recall
You may have heard of a major GM ignition recall. That recall was for the key ignition switch in the steering column on different, newer vehicles, which could cause the car to shut off if bumped. This is NOT the same as the ignition control module under the hood of your C3500. There are no specific recalls for the ignition control module on the 1993-2000 GMC C3500.
Choosing the Right Aftermarket Module: Delphi vs. Standard
For your C3500, you have good aftermarket options that provide a solid balance of quality and value. The original parts were likely made by Delphi, even if they came in an ACDelco box.
Delphi: Delphi was the original parts-making division of General Motors before it was spun off. Choosing a Delphi ignition module is essentially getting the original equipment (OEM) quality part without the dealership price tag. For owners looking to maintain factory performance and reliability, Delphi is an excellent choice.
Standard Ignition (SMP): Standard Motor Products is a highly respected aftermarket brand known for producing reliable components. Their parts, like the LX340, are engineered to meet or exceed OEM specifications and are a trusted choice for professional mechanics and DIYers alike. You can confidently install a Standard part and expect durable performance.
Pro Tip: The Magic is in the Thermal Paste
The number one killer of ignition modules is heat. Your new module will come with a small packet of white or silver thermal paste (sometimes called dielectric grease). You must use it. Before installing the new module, clean the metal mounting bracket thoroughly. Then, apply a thin, even layer of the paste to the entire metal back of the new module. This paste is critical for transferring heat away from the module to its mounting bracket, preventing it from overheating and failing prematurely.
Cost of Replacing Your Ignition Control Module
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Delphi, Standard) | $80 - $140 |
| New OEM (ACDelco) | $100 - $200+ |
| Shop Labor | $100 - $150 |
| Total Professional Replacement | $180 - $350 |
Frequently Asked Questions (FAQ)
Where is the ignition module located on my C3500?

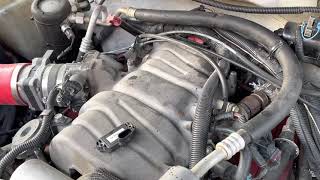

On most 1993-2000 GMC C3500 trucks with 5.7L or 7.4L engines, the ignition control module is mounted externally on a metal bracket, right next to the ignition coil. This assembly is typically found on the driver's side of the engine. 🎬 Watch this video to locate the module on 7.4L engines. On some earlier models, it may be located inside the base of the distributor.
Can I replace the ignition module myself?
Yes, this is a very DIY-friendly job. It usually requires only basic hand tools like a ratchet and a small socket (often 5.5mm). The process involves removing the air intake tube for better access, disconnecting two electrical connectors, and removing two small bolts. The whole job can typically be done in under an hour.
🎬 See this step-by-step walkthrough for replacing the module.My truck keeps burning out new modules and coils. What's wrong?
If you are experiencing repeat failures, it could be due to a few things. First, ensure you are applying thermal paste correctly every time. Second, a short in the wiring between the distributor and the coil can cause both components to burn out. Finally, high resistance in your spark plug wires or a bad ignition coil can overwork and destroy a new module.
Do I need to set the timing after replacing the module?
No. If you are only replacing the external ignition control module, you do not need to adjust the ignition timing. The distributor remains in place. You simply bolt the new module on and reconnect the wiring.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10482827 D579
Controls ignition coil switching and spark timing. For gasoline engine models. Requires thermal paste for heat dissipation.
