GMC K2500 Vehicle Speed Sensor (VSS) Guide for 1993-2000 Models
Fix your K2500's erratic speedometer and harsh shifting by understanding and choosing the right VSS.
- A failing VSS on a K2500 most commonly causes an erratic speedometer and harsh transmission shifting.
- The VSS is located on the transfer case on 4WD models and is a simple part to replace for a DIYer.
- For best results and reliability, choosing an OEM-grade brand like ACDelco or Delphi is recommended for this sensor.
- Always inspect the wiring harness for damage before replacing the sensor, as wiring issues can cause the same symptoms.
Is a Failing Vehicle Speed Sensor a Serious Problem?
A bad Vehicle Speed Sensor (VSS) can cause significant drivability issues with your GMC K2500. While the truck will still run, you may experience problems like an incorrect speedometer, poor automatic transmission shifting, and a non-working cruise control. These issues can be more than just an annoyance; erratic shifting can cause extra wear on your transmission over time. Because the symptoms can be serious and affect vehicle control, it's recommended to address the problem as soon as possible.
Symptoms of a Failing K2500 Vehicle Speed Sensor
When the VSS on your GMT400-platform truck begins to fail, it can cause several noticeable problems. The most common is an erratic or completely dead speedometer. You may also notice your automatic transmission shifting harshly, at the wrong times, or not shifting at all. Another common symptom is the cruise control not engaging or turning off unexpectedly. In some cases, a failing VSS will also turn on the Check Engine Light and store a diagnostic trouble code like P0500.

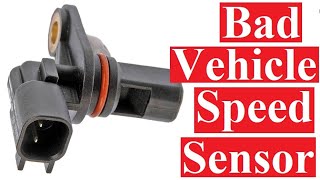

🎬 Learn more about the common symptoms of a failing speed sensor.Wiring Can Also Be the Culprit
Before replacing the sensor, inspect the wiring harness that connects to it. On these trucks, the wiring can become damaged, corroded, or frayed over time, especially where it runs over the transmission and near the firewall. A problem in the wiring can mimic the symptoms of a bad sensor.

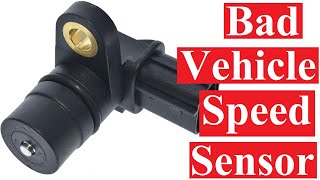

🎬 Watch this guide to test if your sensor has actually failed.Choosing the Right Aftermarket VSS for Your K2500
When it comes to electronic parts like sensors, quality can vary significantly between brands. For your GMC K2500, it's important to choose a reliable part to avoid having to do the job twice.
- Premium Brands (ACDelco, Delphi): ACDelco is the original equipment (OE) supplier for GM vehicles, so their parts are made to the exact factory specifications. Delphi was also a part of GM and is a trusted OEM-quality manufacturer, known for its electronics and sensors. Choosing either of these brands is the closest you can get to the original part.
- Mid-Grade Brands (Dorman, Standard Ignition, Walker Products): These brands offer a good balance of quality and value. Dorman is a very common aftermarket choice that produces a wide range of parts. Standard Motor Products and Walker Products are also established brands with a reputation for reliable sensors.
- Budget-Friendly Brands (Holstein, Skyward, True Tech): These brands provide a more affordable option. While they can get your truck back on the road, their long-term durability and sensor accuracy may not match the higher-tiered brands.
Pro Tip: For a critical sensor that affects transmission performance, spending a little more on a premium brand like ACDelco or Delphi is often a wise investment to ensure reliability and proper function.
Cost of Replacing a 1993-2000 GMC K2500 Vehicle Speed Sensor
The cost to replace the VSS is relatively low, especially if you do it yourself. The part itself is affordable, and the labor is minimal.
| Cost Category | Estimated Price Range |
|---|---|
| New Aftermarket Part | $21 - $158 |
| Shop Labor | $50 - $100 |
| Total (DIY) | $21 - $158 |
| Total (Installed at Shop) | $71 - $258 |
Frequently Asked Questions
Where is the Vehicle Speed Sensor located on my K2500?
On a 4-wheel drive 1993-2000 GMC K2500, the VSS is located on the rear output housing of the transfer case. You can find it by looking for a sensor with a two-wire electrical connector near where the rear driveshaft connects to the transfer case.

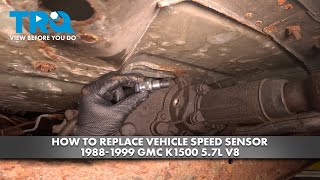

Can I replace the VSS myself? 🎬 See this step-by-step walkthrough for replacing the sensor yourself.
Yes, this is a very DIY-friendly job. It typically requires only basic hand tools, like a wrench or socket, to unscrew the old sensor. The job can often be completed in under an hour. Always disconnect the negative battery terminal before working on electrical components.
Are there any recalls for the VSS on these trucks?
Based on searches of the National Highway Traffic Safety Administration (NHTSA) database, there are no specific recalls for the vehicle speed sensor on the 1993-2000 GMC K2500. However, there is a Technical Service Bulletin (TSB #02-05-25-006) for some GM trucks of this era regarding ABS activation at low speeds, which can be caused by rust and debris buildup on the wheel speed sensor mounting surface, affecting the sensor's reading.
What is the difference between a Vehicle Speed Sensor and a Wheel Speed Sensor?
The Vehicle Speed Sensor (VSS) measures the overall speed of the vehicle, typically from the transmission or transfer case, and is used for the speedometer and transmission shifting. A Wheel Speed Sensor (WSS), also called an ABS sensor, is located at each wheel and measures individual wheel speed for the Anti-lock Braking System (ABS) and traction control.
Helpful Videos
Technical Specifications
OEM Part Numbers: 26076106 26081626 19168825
The Vehicle Speed Sensor for the 1993-2000 GMC K2500 is a magnetic sensor that generates a signal as a reluctor wheel spins inside the transfer case or transmission. It typically uses a 2-wire connector.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
