Engine Coolant Thermostat Guide for 1997-2000 BMW 528i (E39)
Keep your E39 528i's engine temperature in check by understanding how to choose the right replacement thermostat.
- The thermostat is usually sold as a complete unit with the plastic housing; it is highly recommended to replace the entire assembly.
- Stick to OEM-supplier brands like Behr or Wahler with the correct 97°C temperature rating for best results.
- A thermostat stuck open is common and causes slow warm-up; a thermostat stuck closed is dangerous and causes rapid overheating.
- While you are replacing the thermostat, it is a good time to inspect the water pump, hoses, and expansion tank for wear.
Understanding Thermostat Failure in Your E39 528i
The cooling system on the E39 is a known weak point, and the thermostat is a frequent player in potential problems. Due to high operating temperatures designed for emissions efficiency, plastic components in the cooling system become brittle over time. The thermostat can fail in two ways: stuck open or stuck closed. A thermostat that is stuck open is the most common failure mode for these models and will cause the engine to take a very long time to warm up, poor heater performance in winter, and decreased fuel economy. A thermostat that fails stuck closed is far more dangerous, as it will quickly lead to severe engine overheating, which can cause catastrophic damage like a blown head gasket or cracked radiator.
A Note on Vehicle Years
The BMW 528i model designation within the provided 1993-2001 range applies specifically to the E39 chassis, sold in North America from the 1997 to 2000 model years. This guide focuses on the 1997-2000 E39 528i with the M52 engine.
Symptoms of a Failing Thermostat
🎬 Watch: A visual guide to identifying common thermostat failure symptoms.- Engine Overheating: The temperature gauge needle moves into the red. This is a critical situation requiring you to stop the engine immediately.
- Engine Slow to Warm Up: It takes much longer than the usual 5-10 minutes for the temperature gauge to reach the center position.
- Check Engine Light: A code like P0128 (Coolant Thermostat Below Thermostat Regulating Temperature) may be triggered.
- Poor Heater Output: The heater blows lukewarm or cold air, especially when the thermostat is stuck open.
- Temperature Gauge Fluctuates: The needle drops towards cold on the highway and may rise at idle.
Choosing the Right Aftermarket Thermostat
For the E39 528i, not all aftermarket parts are created equal. The BMW community strongly prefers using thermostats from OEM (Original Equipment Manufacturer) suppliers, even when buying from an aftermarket source. The correct opening temperature and reliability are crucial. The standard thermostat for the 528i is rated at 97°C.
| Brand Tier | Brands | Quality & Cost Assessment |
|---|---|---|
| Tier 1: OEM Supplier / Highly Recommended | Behr, Wahler, Calorstat | These brands are often the original suppliers to BMW. They are trusted for their reliability and correct temperature specification. Calorstat is a reputable OEM supplier. Choosing one of these is the safest bet for longevity and performance. Cost is moderate to high. |
| Tier 2: Reputable Aftermarket | Gates, Stant, Beck Arnley | These are well-known aftermarket brands. Gates and Stant have a generally good reputation, though some users have reported issues. Beck Arnley often re-packages OEM parts, so quality can be high but varies. These are a viable option if OEM suppliers are unavailable. Cost is moderate. |
| Tier 3: Performance / Specialty | Mishimoto | Mishimoto offers lower-temperature "racing" thermostats (e.g., 70°C). These are for specialized track or performance applications and are not recommended for a daily driven vehicle. They will cause the engine to run too cool, decrease fuel efficiency, and will likely trigger a check engine light. Cost is high. |
| Tier 4: Budget Options | Motorad, Facet, Vemo | These brands are typically the most affordable. However, forum discussions and mechanic reviews often warn against using cheaper thermostats on BMWs due to higher failure rates and incorrect operation, leading you to do the job again sooner. Use with caution. Cost is low. |
Pro Tip: Replace the Housing and Gasket

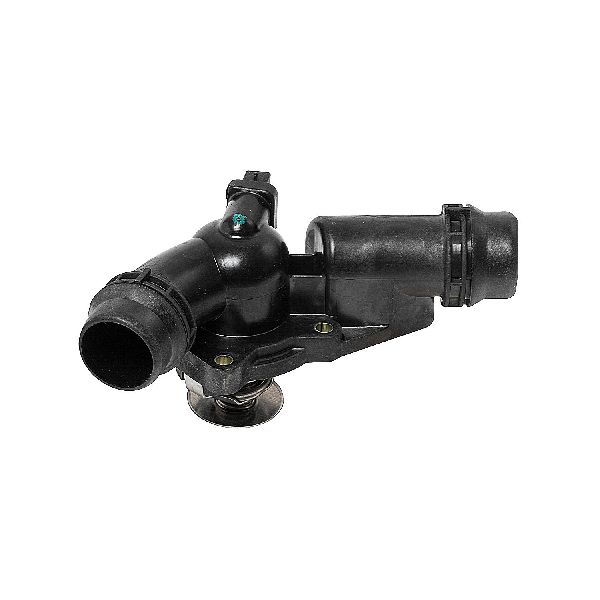

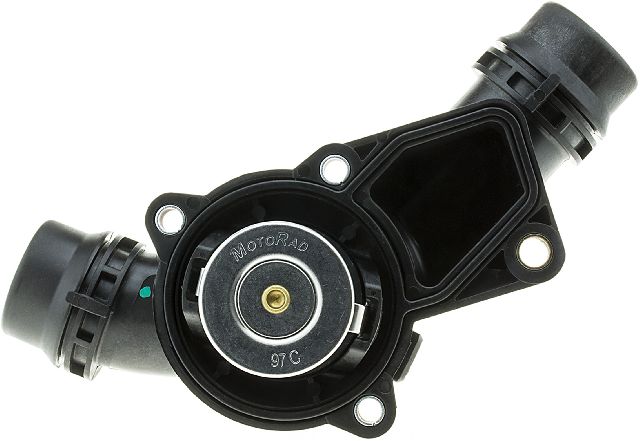

The thermostat on the E39 528i is integrated into a plastic housing. This housing becomes brittle from countless heat cycles and is a very common source of coolant leaks. It is strongly recommended to replace the entire thermostat and housing assembly, not just the thermostat itself. Always use a new gasket and ensure the mounting surface on the engine block is clean.
Frequently Asked Questions (FAQ)
Should I use a lower temperature thermostat?
For a standard street-driven 528i, no. The engine is designed to run at a higher temperature (around 97°C) for efficiency and emissions. Using a lower temp thermostat can negatively impact fuel economy and may cause a persistent check engine light.
Is it difficult to replace the thermostat on a 528i?
No, it is considered a relatively easy DIY job for someone with basic mechanical skills. Access is good after removing a few components like the engine fan and shroud. The job typically takes 1-2 hours.
🎬 See this complete step-by-step thermostat replacement walkthrough for your M52.Why do many owners recommend an aluminum thermostat housing?
Because the original plastic housings are known to crack and leak, some aftermarket companies offer aluminum replacements. While some owners prefer them for durability, others argue that a quality OEM plastic housing fits perfectly and lasts for many years, while a cheap aluminum casting could have poor fitment. The choice often comes down to personal preference and the quality of the specific aluminum part.
What else should I replace while changing the thermostat?
It's a perfect time to inspect and replace other cooling system components. This includes the water pump (if it has a plastic impeller), radiator hoses, expansion tank, and the coolant itself. A complete cooling system overhaul is a common preventative maintenance job on these cars.
🎬 Watch: How to perform a full cooling system refresh.Helpful Videos
Technical Specifications
OEM Part Numbers: 11531437040 11537509227
The standard thermostat for the M52TU engine in the 1997-2000 528i has a 97°C (207°F) opening temperature and is electronically assisted.
