A Mechanic's Guide to the 1997-2001 BMW 528i Transmission Filter Kit
Don't let BMW's "lifetime" fluid recommendation lead to a costly transmission failure; servicing your filter is key.
- You MUST verify if your 528i has the 4-speed or 5-speed GM automatic transmission before ordering a kit.
- Ignore BMW's "lifetime" fluid marketing. Plan to change the fluid and filter every 50,000-60,000 miles.
- Invest in a quality aftermarket kit from a reputable brand like ZF, CRP, Vaico, or Wix to ensure proper fit and filtration.
- The fluid level check procedure is critical and must be done with the car level and the fluid at a specific temperature (around 100°F).
Identifying Your Transmission is Step One
Before ordering a transmission filter kit for your 1997-2001 BMW 528i, you must identify which automatic transmission your car has. BMW used different transmissions during these years, and the filter kits are not interchangeable. Early models (approx. 1997-1998) may have a 4-speed GM transmission (A4S-310R), while later models (approx. 1999-2000) often have a 5-speed GM unit (A5S-360R or A5S-390R). Check the identification plate on the side of your transmission before buying any parts.
The Myth of "Lifetime" Transmission Fluid
BMW originally marketed the transmission fluid in the E39 528i as "lifetime" fluid, suggesting it never needed to be changed. However, experienced mechanics and owners have found that this is not true. Old, dirty fluid loses its ability to lubricate and cool properly. Most experts recommend changing the transmission fluid and filter every 50,000 to 60,000 miles to prevent wear and expensive damage. If the fluid looks dark or smells burnt, it is long overdue for a change.

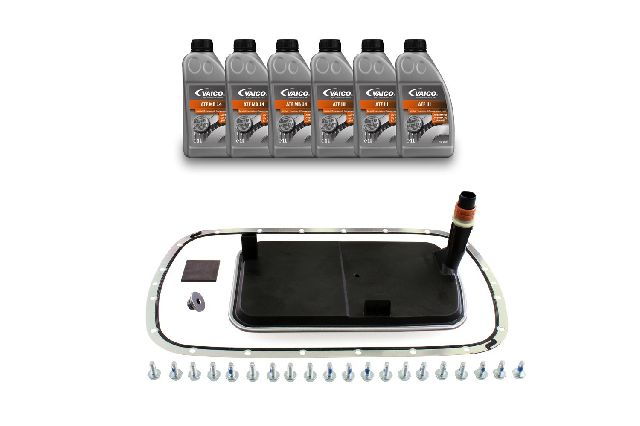

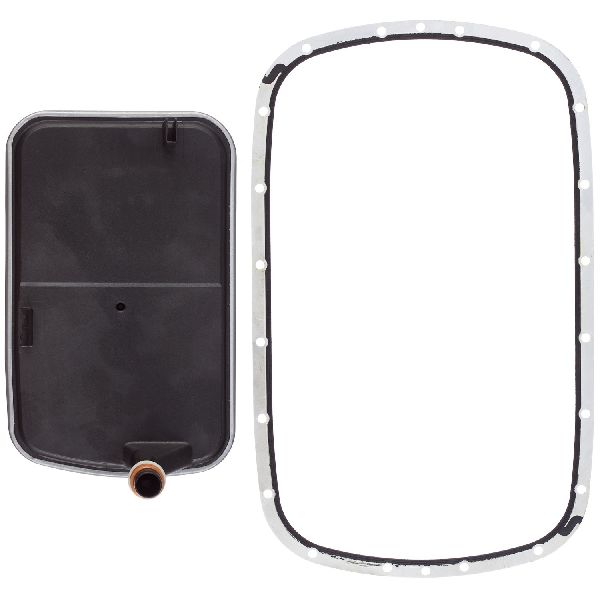

Choosing the Right Aftermarket Kit
When shopping for a new aftermarket transmission filter kit, quality matters. Since this service is only done every few years, choosing a reliable part is a smart investment. Aftermarket brands can be grouped into tiers based on reputation among BMW owners.
- Premium Aftermarket (OEM-Equivalent): Brands like ZF (an original equipment manufacturer), CRP/Meistersatz, and some offerings from Vaico and Wix are often considered high-quality choices that meet or exceed OEM standards. These kits provide confidence in fit and filtration quality.
- Standard Aftermarket: Brands like ATP and some Fram kits are generally seen as reliable, standard replacements. They offer a good balance of price and quality for regular maintenance.
- Economy Brands: While very affordable, some lower-cost or lesser-known brands may use lower-quality gasket materials that could lead to leaks. Forum users sometimes express caution with brands where quality can be inconsistent. For a critical component like the transmission, it is often worth spending a little more for a part from a reputable manufacturer.
Pro Tip: Shifting Problems Aren't Always the Transmission
If your 528i is experiencing shifting problems, don't immediately assume the transmission is failing. The transmission control unit relies on data from other systems, like the ABS/DSC. A faulty wheel speed sensor can cause the ABS and traction control lights to come on and may also lead to the transmission entering "limp mode" or shifting incorrectly. Always check for ABS or engine fault codes before concluding you have a major transmission problem.
Known Issues, Recalls, and TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the transmission filter kit itself on the 1997-2001 BMW 528i. The most significant known issue is the confusion around the "lifetime" fluid, which can lead to owners neglecting service. A common fault message, "TRANS. FAIL-SAFE PROG," indicates the transmission has entered a protective limp mode. This can be triggered by many issues, from low fluid pressure caused by a clogged filter to electrical problems.
Frequently Asked Questions (FAQ)
How often should I really change my transmission filter and fluid?
Despite the "lifetime" fluid claim, a safe interval is every 50,000 to 60,000 miles for normal driving. If you drive in heavy stop-and-go traffic or tow with your vehicle, consider servicing it every 30,000 to 40,000 miles.
Can I just change the fluid without the filter?
You can, but it is not recommended. Replacing the filter allows you to clean the magnets in the bottom of the transmission pan, which collect metallic debris. Since you have to remove the pan to change the filter, it's best to do both at the same time. The filter is the most important part of keeping the new fluid clean.
What happens if I use the wrong transmission fluid?
Using the wrong fluid can cause serious damage. The GM transmissions in these cars require a specific fluid that meets specifications like DEXRON VI (which supersedes older specs). Always verify the correct fluid type for your specific transmission model. Using the wrong type can lead to shifting problems, overheating, and premature failure.
Is a transmission "flush" better than a drain and fill?
A simple drain, filter change, and refill is the standard, safe procedure. A machine "flush" can sometimes dislodge debris that may cause issues, and some shops advise against it on higher-mileage transmissions where the service history is unknown. A standard filter and fluid change replaces most of the old fluid and is sufficient for proper maintenance.
Technical Specifications
OEM Part Numbers: 24111218899 24117557070
Fits GM Automatic Transmissions used in the E39 528i, primarily the A4S-310R (4-Speed) and A5S-360R/A5S-390R (5-Speed). Kit must be matched to the specific transmission model.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
