1993-2001 GMC Jimmy Back Up Light Switch and Neutral Safety Switch Guide
If your reverse lights are out or your truck won't start, the problem might be this single, crucial part.
- On automatic models, this part is a Neutral Safety Switch that also controls the back up lights.
- Failure can cause no-start conditions in addition to reverse light problems.
- Choosing a quality aftermarket brand like Standard Ignition is recommended for reliability.
- Proper adjustment of the new switch after installation is critical for the vehicle to start.
Is Your GMC Jimmy's Back Up Light Switch Failing?
A faulty back up light switch on a 1993-2001 GMC Jimmy is more than just an inconvenience; it's a safety hazard and can even prevent your truck from starting. Since this function is part of the Neutral Safety Switch (NSS) on most Jimmys, the symptoms can be confusing. Understanding the signs of failure will help you diagnose the problem correctly.
Symptoms of a Bad Switch
- No Reverse Lights: The most obvious sign is when you shift into reverse and the white back up lights do not turn on at all. This makes backing up in the dark difficult and dangerous.
- Reverse Lights Stay On: The switch can fail in the 'on' position, causing the reverse lights to stay lit even when you are in Park or Drive. This can confuse other drivers and will burn out your bulbs prematurely.
- Intermittent Reverse Lights: The lights may flicker or only work sometimes when you shift into reverse, indicating worn internal contacts.
- Engine Won't Start in Park or Neutral: Because the switch tells the computer the transmission is in a safe gear to start, a failure can prevent the engine from cranking. You might find it starts in Neutral but not Park, or vice-versa.
- Engine Can Start in Any Gear: In a severe failure, the safety feature can be bypassed, allowing the engine to crank while in Drive or Reverse. This is a critical safety issue.
No Recalls, But A Common Failure
Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls or technical service bulletins (TSBs) for the back up light switch or neutral safety switch on the 1993-2001 GMC Jimmy. However, electrical issues are common in vehicles of this age, and this switch is a known failure point.
Choosing the Right Aftermarket Switch
When replacing this part, you have a few quality tiers to choose from. Since this switch is critical for both starting and safety, opting for the cheapest option is not always the best long-term solution.
| Brand Tier | Available Brands | Our Assessment |
|---|---|---|
| Premium Aftermarket | Standard Ignition (SMP) | Standard is a well-respected brand known for making high-quality electronic parts that often meet or exceed original equipment (OE) specifications. Many professional mechanics trust SMP, and some of their parts are even re-boxed OE parts. For a critical component like an NSS, this is a reliable choice for longevity and proper function. |
| Standard Aftermarket | Vemo | Vemo is a brand that produces a wide range of electronic components, often for European vehicles, but with applications for domestic models as well. While it is a viable replacement, it has fewer specific reviews from GMC Jimmy owners compared to brands like Standard Ignition. It serves as a solid mid-range option. |
| Economy | Replacement | This brand offers a budget-friendly solution to get your vehicle back on the road. These parts are designed to fit and function correctly but may use materials that are less robust than premium brands. For a vehicle you depend on daily, consider this a short-term fix rather than a lifetime repair. |
A Note on Installation
The switch is located on the driver's side of the transmission case. Replacing it requires getting under the vehicle. After the new switch is bolted on, it must be properly adjusted. This involves slightly rotating the switch until the vehicle starts correctly in Park and Neutral. Failure to adjust it properly can result in a no-start condition.
Frequently Asked Questions (FAQ)
Where is the back up light switch located on my 1993-2001 Jimmy?

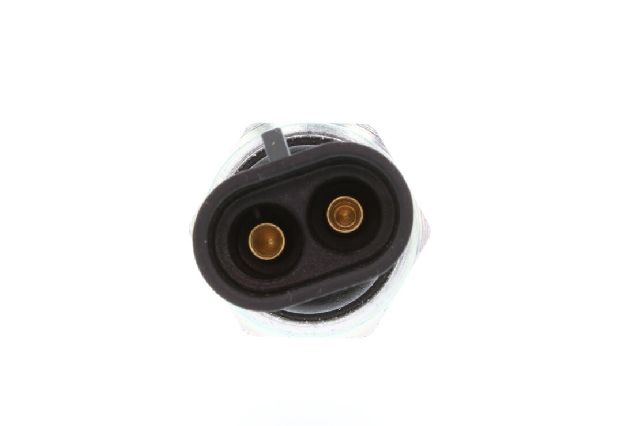

For automatic transmissions, it is part of the Neutral Safety Switch (NSS/MLPS) located on the driver's side of the transmission, where the shift linkage connects. For manual transmission models, it is a smaller, two-wire switch typically threaded into the transmission housing.
Can a bad back up light switch really prevent my truck from starting?
Yes. On automatic models, the Neutral Safety Switch part of the assembly must send a signal to the computer that the vehicle is safely in Park or Neutral before it will allow the starter to engage. If this signal is bad, your Jimmy will not crank.
Is the Neutral Safety Switch the same as the Back Up Light Switch?
On your automatic Jimmy, yes. The two functions are combined into one unit, often called the Manual Lever Position Switch (MLPS). It reads the gear position for multiple systems, including the starter safety interlock and the reverse lights.
Do I need a special tool to replace this switch?
No special tools are required, just common metric sockets and wrenches. However, the electrical connector can be brittle and difficult to remove without breaking the old switch. The most important part of the job is properly adjusting the new switch to ensure your vehicle starts and the reverse lights work correctly.
Technical Specifications
OEM Part Numbers: 24221125 12450016 88996477 23049569 14052375
Located on the driver's side of the 4L60E automatic transmission. Combines the function of a neutral safety switch and a back up light switch into one assembly (MLPS).
