Engine Coolant Thermostat Guide for the 1993-2002 Isuzu Trooper
Learn how to choose the right replacement thermostat to keep your Trooper's engine temperature in check.
- On V6 models, thermostat replacement is a difficult job requiring removal of the intake manifold.
- Always replace the thermostat gasket or seal to prevent coolant leaks.
- Ensure the thermostat's 'jiggle valve' is positioned at the top (12 o'clock) during installation to allow air to bleed from the system.
- A stuck-closed thermostat can cause critical engine damage; pull over immediately if you suspect overheating.
Symptoms of a Failing Thermostat in Your Trooper
A thermostat can fail in two ways: stuck closed or stuck open. Each has its own set of symptoms. Recognizing them early can save you from costly engine damage.
Stuck Closed: High Risk of Overheating
This is the most dangerous type of failure. When the thermostat is stuck closed, it prevents coolant from flowing to the radiator. Heat builds up quickly in the engine, leading to overheating. Signs include:
- Temperature gauge quickly rising to the red zone.
- Steam coming from under the hood.
- Gurgling or boiling sounds from the engine.
- A top radiator hose that is hot, while the bottom hose remains cold.
If you suspect your thermostat is stuck closed, pull over immediately and shut off the engine to prevent catastrophic damage.
Stuck Open: Inefficient Performance
If the thermostat is stuck open, coolant flows to the radiator constantly. This prevents the engine from reaching its proper operating temperature, especially in cooler weather. Signs include:
- Engine temperature gauge never reaching the normal operating range.
- Heater blowing lukewarm or cold air.
- Poor fuel economy.
- A Check Engine Light with code P0128 may appear. 🎬 Learn more about diagnosing the P0128 engine code
Choosing the Right Aftermarket Thermostat
For the 1993-2002 Isuzu Trooper, several aftermarket brands are available. Quality can vary, so it's important to understand the differences.

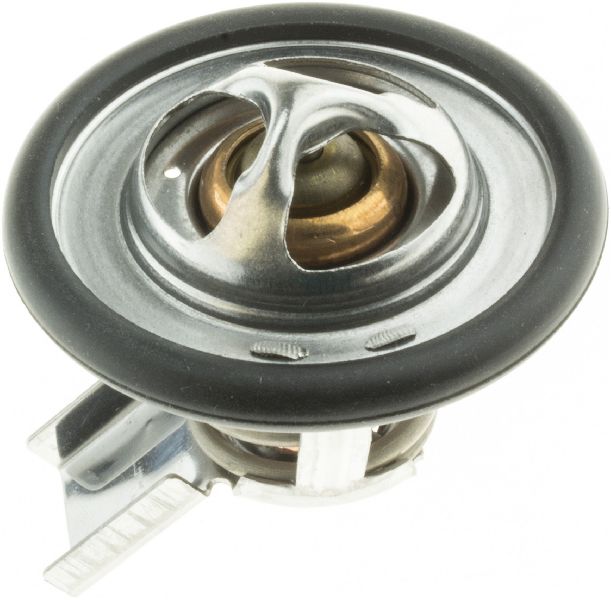

- Gates: A well-respected brand in cooling systems. Gates thermostats are generally considered a reliable, high-quality option that provides performance similar to the original part.

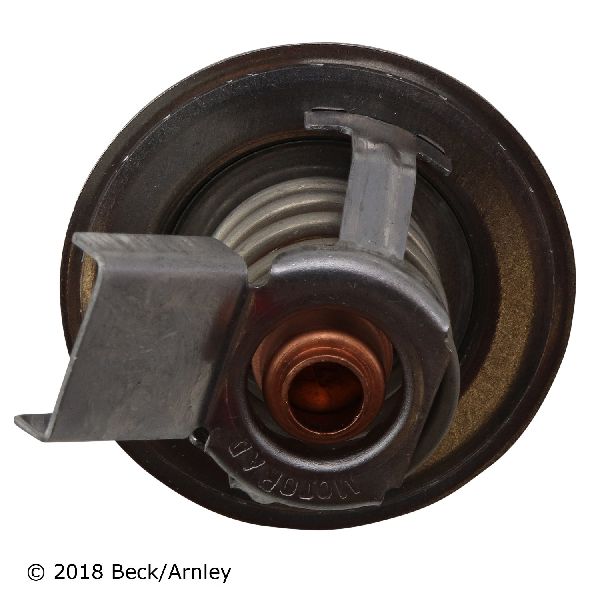

- Beck Arnley: This brand often sources parts from various manufacturers, sometimes even the original OEM supplier. While often a good choice, the part in the box could be from any number of sources. Quality is generally considered good.

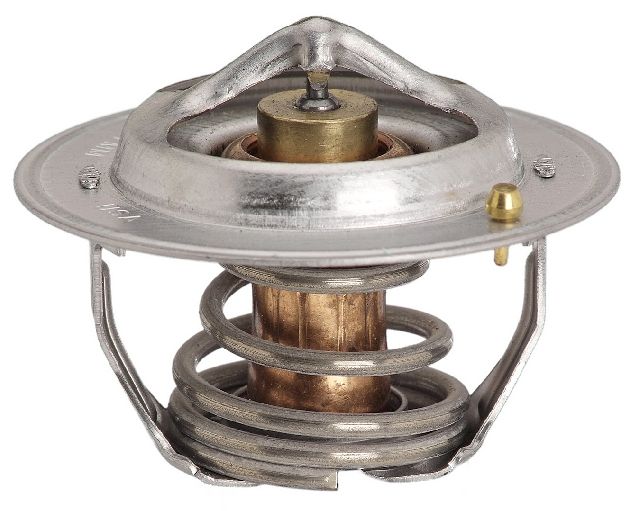

- Stant: A long-standing name in thermostats. While they were once a top-tier choice, some users in forums report a decline in quality compared to their older products. They are still a viable standard replacement option.
- Motorad: This brand has very mixed reviews. While some users and even some OEM manufacturers use them, there are numerous online reports of premature failure. It is often the most budget-friendly option, but carries a higher risk of failure.
Pro Tip: Always verify the correct temperature rating for your specific engine. Most Trooper V6 models use a 170°F or 180°F thermostat. Using the wrong temperature can affect performance and emissions. Also, always replace the gasket or seal 🎬 Watch: Step-by-step thermostat replacement guide for your Trooper when you replace the thermostat to prevent leaks.
Understanding Replacement Costs
The cost to replace the thermostat in a 1993-2002 Isuzu Trooper varies significantly depending on the engine. On V6 models (3.2L and 3.5L), the thermostat is located under the intake manifold, making the job labor-intensive. This drives up the professional installation cost considerably compared to a 4-cylinder model where access is easier.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Thermostat | $12.73 - $58.07 |
| Shop Labor (V6 Models) | $171 - $251+ |
| Total Professional Replacement (V6) | $185 - $310+ |
Cost estimates are for the part and labor only and do not include taxes, fees, or the cost of new coolant. Prices can vary by location and service center.
Frequently Asked Questions
Why is the replacement so expensive on my V6 Trooper?
The thermostat on the 3.2L and 3.5L V6 engines is located deep in the engine valley, underneath the entire intake manifold assembly. To access it, a mechanic must remove the intake, fuel rails, and various hoses and sensors, 🎬 See why the V6 intake manifold removal is so labor-intensive which takes several hours. This significant labor is what makes the job costly.
What is a 'jiggle valve' and is it important?
The jiggle valve, or air bleed valve, is a small pin in the thermostat flange that allows trapped air to escape the cooling system. When installing a new thermostat, it is critical to position this valve at the 12 o'clock (top) position to ensure the system can be properly bled of air. Failure to do so can lead to air pockets and overheating issues.
Should I replace my coolant at the same time?
Yes. Since the cooling system must be drained to replace the thermostat, it is the perfect time to refill it with fresh coolant. This ensures your cooling system has the proper corrosion and freeze protection.
Can I use a lower temperature thermostat to run my engine cooler?
It is not recommended. The engine management system is designed to operate most efficiently at the temperature set by the OEM thermostat. Using a lower temperature thermostat can lead to increased fuel consumption, higher emissions, and potentially a persistent Check Engine Light.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8973628940 8971231614 9032100090
Common Temperature Ratings: 170°F (77°C), 180°F (82°C). Location (V6): Under intake manifold. Location (4-Cyl): At front of engine, in thermostat housing at the end of the upper radiator hose.
