Land Rover Range Rover Universal Joint Guide (1993-2002)
Addressing the common clunks and vibrations from the driveline in your P38 or Range Rover Classic.
- Vibrations at speed and clunking when shifting are the most common signs of a bad U-joint on a P38 Range Rover.
- For reliability, choose a premium aftermarket brand like Dana Spicer or SKF; they are highly recommended by owners.
- If you replace the U-joints and a vibration is still present, the driveshaft itself may need to be professionally balanced.
- This is a DIY-possible job, but a bench vise is strongly recommended to avoid damaging the new joint during installation.
Is Your Range Rover Making a Clunking or Vibrating Noise?
A common source of driveline noise and vibration in the 1993-2002 Range Rover is a worn-out universal joint (U-joint). These parts take a lot of stress and can wear out over time, especially if they are not greased regularly. When a U-joint fails, it can cause symptoms ranging from annoying sounds to a dangerous failure that leaves you stranded.
Symptoms of a Failing Universal Joint
- Vibrations: A vibration that you can feel through the floor or seat is the most common sign. It often gets worse at highway speeds and can feel like you're driving on a rough or corrugated surface.
- Clunking Noises: A distinct "clunk" or "ping" when you shift into Drive or Reverse is a classic symptom of a loose U-joint.
- Squeaking or Chirping: A repetitive, bird-like chirp that changes with your speed often points to a U-joint that has lost its grease and is running dry.
Known Issues for the 1993-2002 Range Rover
While no official recalls or Technical Service Bulletins (TSBs) exist for universal joints on this specific Range Rover model, owners in forums report some common experiences. The front driveshaft, in particular, can be prone to wearing out U-joints. Sometimes, an imbalance in the driveshaft itself is the root cause, leading to repeated U-joint failure. If you replace a U-joint and the vibration persists or a new one appears, it may be wise to have the driveshaft professionally balanced.
Choosing the Right Aftermarket U-Joint
Not all aftermarket parts are created equal. For a critical component like a U-joint, quality matters. Based on owner experiences and brand reputation, here is a breakdown of available brands.
Tier 1: Premium & OEM Quality
These brands are known for meeting or exceeding original equipment standards and are highly recommended by experienced Land Rover owners.

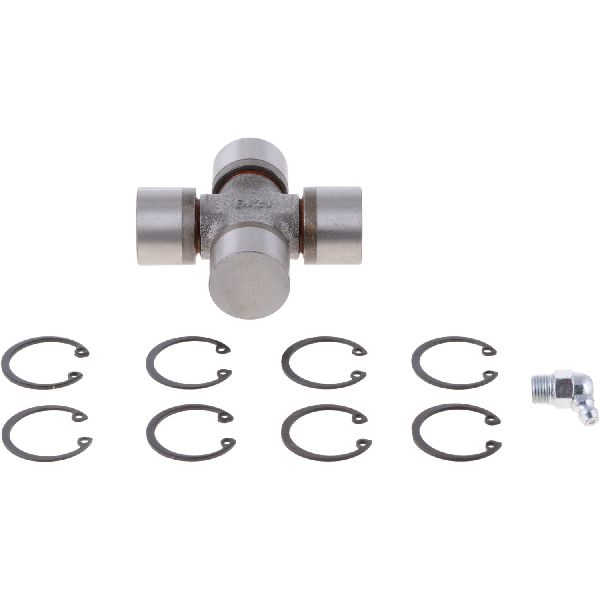

- Dana Spicer: Widely considered the gold standard for U-joints. They are known for durability and excellent manufacturing. Many owners will use nothing else.
- SKF: A well-respected brand known for high-quality bearings and driveline components. Owners report good fitment and long life with SKF U-joints.
Tier 2: Mid-Grade / Standard Replacement
These brands are a solid choice for daily driving and offer a good balance of price and quality.

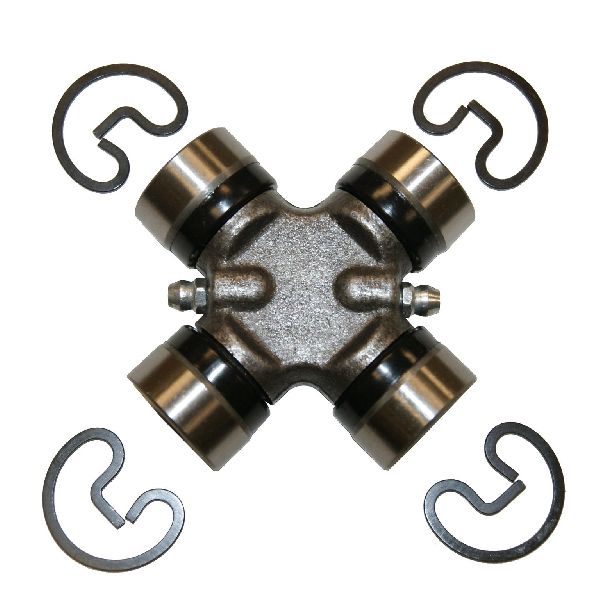

- GMB: A Japanese manufacturer with a reputation for producing reliable, good-quality parts that serve as a dependable alternative to premium brands.
- Moog: Moog's reputation is mixed. While traditionally a trusted name, some users have reported fitment issues with their U-joints on Land Rovers. Quality can be inconsistent, so it may be a hit-or-miss option.
Tier 3: Economy
These parts are the most affordable but may have a shorter service life. They are best suited for budget-conscious repairs where longevity is not the primary concern.
- URO Parts: This brand is known for its low prices, but forum discussions frequently mention inconsistent quality. For a part that requires significant labor to replace and can cause major damage if it fails, using an economy brand U-joint is a risk.
| Brand Tier | Brands | Typical Price Range (per joint) |
|---|---|---|
| Premium | Dana Spicer, SKF | $45 - $85 |
| Mid-Grade | GMB, Moog | $25 - $45 |
| Economy | URO Parts | $15 - $25 |
Pro Tip: Greasable vs. Sealed
U-joints come in two types: greasable (with a zerk fitting) and sealed (lubed-for-life). Greasable joints can last longer if you perform regular maintenance, but you must remember to grease them. Sealed joints are maintenance-free but must be replaced when they wear out. For many owners, the peace of mind and potential longevity of a high-quality sealed joint from a brand like Dana Spicer is worth the investment.
Frequently Asked Questions (FAQ)
Can I replace just one U-joint?
Yes, you can replace only the failed joint. However, the driveshaft has a U-joint at each end. If one has failed due to age and mileage, the other may not be far behind. It is often cost-effective from a labor standpoint to replace both U-joints on the same driveshaft at the same time.
Is this a difficult job to do at home?
Replacing a U-joint is a moderately difficult job that is feasible for a DIY mechanic. The hardest parts are often removing the old, seized circlips and pressing the old joint out of the yoke. A sturdy bench vise is the most recommended tool for pressing the joints in and out safely without damaging the new bearing caps.
Do I need to mark the driveshaft before removing it?
Yes, this is a critical step. Use a paint marker or punch to mark the driveshaft's orientation to the yokes on the transfer case and differential before you unbolt it. Re-installing it in the exact same position is essential to maintain its balance and prevent new vibrations.
What is the correct U-joint size for my Range Rover?
North American specification 1993-2002 Range Rovers typically use a U-joint that is 75mm wide with 27mm diameter cups. This crosses over to common part numbers like Precision 344 or Neapco 1-0005. Be aware that parts listings can sometimes be incorrect, so measuring your old joint is the best way to confirm fitment.
Technical Specifications
OEM Part Numbers: TVC100010
The common size for North American 1993-2002 models is 75mm wide with 27mm diameter bearing cups. This cross-references to parts like Precision 344 and Neapco 1-0005.
