Guide to Saturn SC1 Relays: Symptoms, Problems, and Replacement (1993-2002)
Understanding the small electrical switches that are critical to starting and running your 1993-2002 Saturn SC1.
- A faulty relay can cause a no-start condition that mimics a more expensive failure like a bad starter or fuel pump.
- Relay replacement is extremely simple (plug-and-play) and is a great first step in diagnosing electrical issues.
- Aftermarket relays from brands like 'Replacement' are a reliable and budget-friendly choice for the Saturn SC1.
- You can often diagnose a bad relay for free by swapping it with a known good, identical relay from a less critical system.
Symptoms of a Failing Relay in Your Saturn SC1
A bad relay can cause symptoms that mimic the failure of a much more expensive part. Knowing these signs can save you time and money on diagnostics. The most common failures are related to the fuel pump and starter relays.
- No-Crank, No-Start: If you turn the key and nothing happens, or you only hear a single click, the starter relay 🎬 Watch this diagnostic walkthrough for a Saturn SC1 that only clicks. could be the culprit. This prevents electricity from reaching the starter motor. However, these symptoms can also point to a dead battery or a bad starter, so proper diagnosis is key.
- Engine Cranks but Won't Start: If the engine turns over but never fires up, the fuel pump relay might have failed. This relay powers the fuel pump, and if it's not working, no fuel will reach the engine. You might notice the absence of the typical 2-3 second humming sound from the rear of the car when you first turn the key.

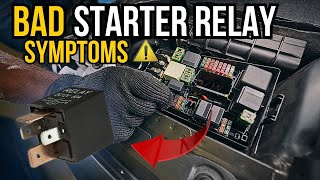

- Intermittent Starting Issues: The car might start perfectly one day and refuse to start the next. This can be a sign of a relay that is beginning to fail, with its internal contacts wearing out and only working 🎬 Learn more about the common symptoms of a failing starter relay. sometimes.
- Component Stops Working: If your cooling fan, headlights, or another electrical accessory suddenly stops working, the first thing to check after the fuse is its corresponding relay.
Choosing the Right Aftermarket Relay
For a vehicle like the 1993-2002 Saturn SC1, original equipment (OEM) relays from Saturn are likely discontinued or difficult to find. The good news is that automotive relays are highly standardized components, and aftermarket options are both reliable and affordable.
Pro Tip: Many relays in your SC1's fuse box are identical. If you suspect a bad fuel pump relay, for example, you can swap it with a known good relay from a non-essential system (like the horn) to see if the problem is resolved. If the car starts, you've found your bad relay.
The "Replacement" brand and similar aftermarket offerings are a cost-effective solution. For a simple, low-cost part like a relay, there is generally no significant quality or longevity difference compared to the original part, especially on an older vehicle. These parts are designed to meet or exceed original specifications and are a practical choice for keeping your Saturn on the road.
Known Issues, Recalls, and Service Bulletins
Searches for the 1993-2002 Saturn SC1 did not reveal any specific recalls or Technical Service Bulletins (TSBs) directly related to relay failures. Most relay issues on these cars are due to normal age and wear. Forum discussions among owners frequently point to the fuel pump relay and starter relay as common points of failure, which is typical for cars of this vintage. Some owners report that wiggling a loose relay can temporarily solve a starting problem, indicating a poor connection in the fuse box itself, which can sometimes be resolved by simply replacing the relay for a tighter fit.
Estimated Cost Comparison
| Part Type | Estimated Price |
|---|---|
| New Aftermarket Relay | $17.03 - $18.62 |
| New OEM Relay | Likely Discontinued |
| Shop Labor for Diagnosis & Replacement | $50 - $100 |
Frequently Asked Questions (FAQ)
Where are the relays located on a Saturn SC1?

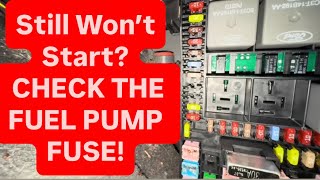

Most of the critical relays for your SC1, including the fuel pump relay, are located in the under-hood fuse box. 🎬 See exactly where to find your fuel pump fuse and relay. The fuse box cover should have a diagram indicating which relay corresponds to which system. Some models may have additional relays inside the car, such as near the passenger's footwell.
Can I replace a relay myself?
Yes, replacing a relay is one of the easiest repairs you can do. It is a simple plug-and-play component. Simply locate the old relay using the fuse box diagram, pull it straight out, and push the new one firmly into place. No special tools are required.
How do I test a relay?
The easiest test is to swap the suspect relay with an identical, known-good one from another circuit (like the horn). If the problem moves to the other circuit, the relay is bad. You can also test a relay with a multimeter and a 9V or 12V power source by checking for continuity and listening for the internal 'click' when power is applied, but the swap method is faster for most DIYers.
Should I replace fuses or relays first?
Always check the fuse first. A fuse is designed to be the weak link to protect the circuit. If a fuse is blown, replace it. If the new fuse blows immediately, there is a short in the circuit. If the fuse is good but the component doesn't work, the relay is the next logical part to test and replace.
Helpful Videos
Technical Specifications
Standard 4-pin or 5-pin configuration, matching the original relay's amperage and pin layout.
