Ford F-150 Ignition Switch Guide for 1993-2003 Models
Having trouble starting your truck, or are the electronics acting up? Your ignition switch might be the culprit.
- Symptoms often appear as random electrical issues, a no-start condition, or stalling.
- This is a DIY-friendly repair that can be done with basic tools in about an hour.
- The ignition switch is the electronic part; if your key is physically sticking, the lock cylinder may be the issue.
- Driving with a faulty ignition switch is not recommended due to the risk of the engine stalling.
Is Your F-150 Ignition Switch Failing?
Ignition switch problems are common in Ford F-150s from the 1993-2003 era. The internal electrical contacts wear out over time, leading to a poor connection. This can cause frustrating and sometimes dangerous issues. If you notice any of the symptoms below, it's a good idea to inspect your ignition switch.
Top 5 Failure Symptoms
- Engine Won't Crank or Start: You turn the key and nothing happens, or you just hear a single click. The switch isn't sending the 'start' signal to the starter relay.

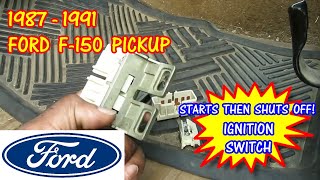

- Starts and Immediately Stalls: The engine fires up but dies as soon as you release the key from the 'Start' to 'On' position. This means the switch isn't maintaining power to the ignition system. 🎬 Watch: Fixing an F-150 that starts and immediately stalls.
- Flickering Dashboard Lights & Accessories: Your radio, climate control, or dash lights may cut out intermittently while driving. This is a sign of a loose internal connection, often triggered by bumps in the road.
- Key Feels Stuck or Won't Spring Back: If the key doesn't return from the 'Start' to 'On' position on its own, it can damage the starter. This can be a problem with the switch or the lock cylinder it connects to.
- Engine Stalls While Driving: This is the most serious symptom. A sudden loss of connection inside the switch can cut power to the engine, which also results in a loss of power steering and power brakes, creating a major safety risk.
Recall Information for 1993 F-150
Ford issued a major recall in 1996 for ignition switches on 1988-1993 models, including the F-Series trucks. The original switches could develop an internal short circuit, creating a fire risk even when the vehicle was turned off. While most of these vehicles should have been repaired, it's a critical point to be aware of for owners of 1993 models.
Choosing the Right Aftermarket Ignition Switch
For a part like the ignition switch on this generation of F-150, aftermarket options provide excellent value. The technology is straightforward, and reputable brands produce reliable replacements. You don't need to pay a premium for an OEM part in this case.
- Dorman: A well-known brand that often re-engineers parts to fix common OEM flaws. They are a popular choice for DIY repairs and offer a good balance of quality and price.
- Standard Ignition (Standard Motor Products): A trusted name among professional mechanics, known for producing high-quality electronic components that meet or exceed original specifications.

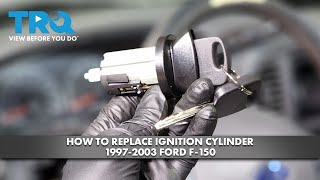

Pro Tip: The ignition switch is the electronic part located on the steering column. It is separate from the ignition lock cylinder, which is the mechanical part your key goes into. If your key is physically hard to turn or getting stuck, the problem might be the lock cylinder, not the switch. 🎬 See how to replace the ignition lock cylinder yourself. However, the two issues can sometimes be related.
Replacement Cost
Replacing the ignition switch is an affordable repair. The parts are inexpensive, and the labor is straightforward for a mechanic.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Ignition Switch | $32 - $34 |
| Shop Labor | $110 - $161 |
| Total Professional Replacement | $142 - $195 |
Frequently Asked Questions
Can I replace the F-150 ignition switch myself?
Yes, this is a very DIY-friendly job. The switch is typically located on the steering column and can be accessed by removing the lower plastic covers. It's held in by a couple of small screws and an electrical connector. The entire job can usually be done in under an hour with basic hand tools like a Torx screwdriver set. Always disconnect the battery before starting.
🎬 Follow this step-by-step F-150 ignition switch replacement guide.Do I need to reprogram my keys after replacing the ignition switch?
No. For the 1993-2003 F-150, replacing the electronic ignition switch does not require key reprogramming. You are not changing the lock cylinder or the key, so the vehicle's anti-theft system (if equipped) is not affected.
What is the difference between an ignition switch and an actuator rod?
The ignition lock cylinder (where you put the key) connects to an actuator rod inside the steering column. This rod then moves the electronic ignition switch. On older F-150s, this actuator rod can sometimes break, causing the key to spin freely without engaging the switch. If your key feels disconnected, the actuator rod could be the problem rather than the switch itself.
Will a bad ignition switch cause a 'no crank, no start'?
Yes, this is a classic symptom. A faulty switch can fail to send power to the starter motor, resulting in silence when you turn the key. However, if you hear rapid clicking, the problem is more likely a dead or weak battery.
Helpful Videos
Technical Specifications
OEM Part Numbers: 98AZ-11572-A SW-6343 YS4Z-11572-AC
Located on the steering column, activated by the ignition lock cylinder via an actuator rod. Controls power distribution to accessory, ignition, and starter circuits.
