Nissan Quest Vehicle Speed Sensor Guide for 1993-2003 Models
Fix your Quest's erratic speedometer and shifting issues by understanding the Vehicle Speed Sensor.
- A failing VSS is a common issue on 1993-2003 Quests, causing speedometer failure and erratic shifting.
- Look for a P0500 diagnostic code to help confirm the VSS is the problem.
- Replacement is DIY-friendly and involves a single bolt, but be sure to also inspect or replace the plastic pinion gear.
- Quality aftermarket brands like Standard Ignition and Walker Products offer reliable, cost-effective replacements.
Is Your Nissan Quest Speedometer Acting Up?
If you own a 1993-2003 Nissan Quest, a faulty Vehicle Speed Sensor (VSS) is a common problem that can cause more than just an incorrect speedometer reading. This sensor is essential for proper transmission function. When it fails, it can lead to frustrating and potentially unsafe driving conditions. Understanding the symptoms and your replacement options can help you get your minivan running smoothly again.
Symptoms of a Failing Vehicle Speed Sensor
A bad VSS will usually make itself known through several clear symptoms. The most common issue is an erratic or completely dead speedometer. You might also experience harsh or delayed shifting from the automatic transmission, as it doesn't know the correct vehicle speed to time the gear changes. Other signs include the cruise control not working and the Check Engine Light coming on, often with a P0500 trouble code.
🎬 Watch a detailed breakdown of common speed sensor failure symptoms.Known Issues for 1993-2003 Nissan Quest
While no specific recalls or Technical Service Bulletins (TSBs) for the Vehicle Speed Sensor on the 1993-2003 Quest were found during research, owner forums and repair videos confirm that VSS failure is a frequent issue for this generation. The symptoms are consistent: speedometer failure followed by transmission shifting problems. A diagnostic scan for a P0500 code is a strong first step in confirming the VSS is the culprit.
Choosing the Right Aftermarket Speed Sensor
For a vehicle of this age, an aftermarket VSS is a cost-effective and reliable choice. The original equipment (OEM) part may be harder to find or significantly more expensive. Aftermarket brands like Standard Ignition and Walker Products manufacture direct-fit replacement sensors designed to meet or exceed original specifications.
- Standard Ignition: A well-known brand in the aftermarket, Standard produces a wide range of sensors. They emphasize quality control and precision manufacturing to ensure their parts perform reliably.
- Walker Products: Walker also specializes in engine management components and states their sensors are made in certified facilities to meet OEM standards. They focus on restoring original speedometer, cruise control, and transmission function.
Pro Tip: When replacing the sensor, it's highly recommended to also purchase a new pinion gear if it is not included. The old plastic gear can become brittle or stripped, and reusing it with a new sensor can lead to continued problems. The pinion gear is often an inexpensive, dealer-only part.

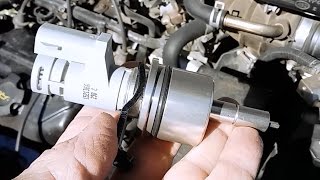

🎬 See how to change the speed sensor on your van.Cost of Replacing a Nissan Quest Vehicle Speed Sensor
The total cost will depend on the part you choose and whether you do the work yourself or hire a mechanic. The job is feasible for a DIYer with basic tools.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $62 - $174 |
| Shop Labor | $90 - $150 |
| Total Estimated Cost | $152 - $324 |
Frequently Asked Questions
Where is the Vehicle Speed Sensor located on a 1993-2003 Nissan Quest?
The VSS is located on the automatic transmission (transaxle). It is typically found on the top or side of the transmission housing, held in by a single 10mm bolt. Access is usually from underneath the vehicle, though some mechanics may work from the top after removing the air intake components.
Can I replace the VSS myself?
Yes, this is a DIY-friendly repair for most home mechanics. The process involves raising the vehicle safely, locating the sensor on the transmission, disconnecting the electrical connector, removing one 10mm bolt, and carefully twisting and pulling the old sensor out. It's important to be gentle, as the old sensor can be brittle. You will likely need to swap the small plastic gear from the old sensor to the new one.
🎬 Follow this step-by-step guide for replacing the VSS yourself.What happens if I don't replace a bad speed sensor?
Continuing to drive with a bad VSS can be unsafe and lead to more problems. Your speedometer will be unreliable, increasing the risk of speeding tickets. More importantly, the transmission will shift erratically, which can cause poor performance, reduced fuel economy, and potentially damage the transmission over time due to stress from hard shifts.
Is an aftermarket VSS a good choice for my Quest?
Yes, for this vehicle generation, a quality aftermarket sensor from a reputable brand like Standard Ignition or Walker Products is a perfectly acceptable and budget-friendly alternative to an OEM part. These brands design their parts to be direct-fit replacements that restore the original function.
Helpful Videos
Technical Specifications
OEM Part Numbers: 31935-80X00 25015-0B001

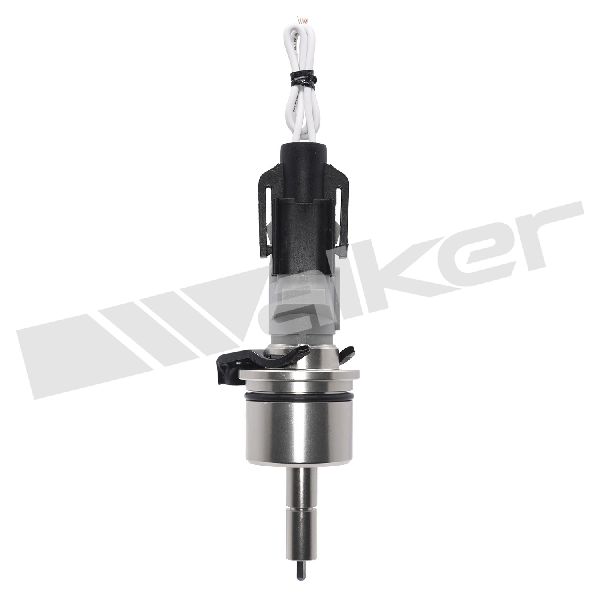

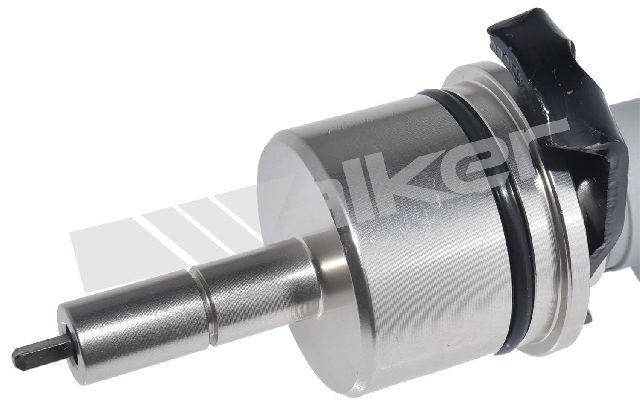

The Vehicle Speed Sensor for the 1993-2003 Nissan Quest is a variable reluctance sensor located on the automatic transaxle. It is held in place by a single 10mm bolt and uses a plastic pinion gear to measure the transmission output shaft's rotation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
