Toyota Corolla Window Motor & Regulator Guide: 1993-2003
If your Corolla's window is slow, noisy, or stuck, this guide will help you understand and fix the problem.
- Symptoms often start with slow movement or noise before total failure; replace it before the window gets stuck down.
- For this Corolla, it is highly recommended to replace the motor and regulator as a single assembly.
- An aftermarket assembly from a brand like Dorman or Cardone is a reliable and cost-effective repair.
- This is a very DIY-friendly repair that can be done in 1-2 hours with basic hand tools.
Is Your Corolla's Window Acting Up?
A failing window motor is a common issue on older cars like the 1993-2003 Toyota Corolla as parts simply wear out from years of use. Symptoms often start small and get worse, so it's a good idea to address them before the window gets stuck completely, which can expose your car to rain or theft. The most common cause of failure is just age; the internal components of the motor wear down after thousands of up-and-down cycles.
Symptoms of a Failing Window Motor
Knowing the signs of a bad window motor can help you diagnose the problem correctly. The issue is rarely the window switch itself, but it's worth checking the window lock button first. Here are the most common symptoms:
- Slow Operation: The window moves much slower than it used to, either going up or down. This is often the first sign that the motor is getting weak.
- Noise: You might hear a grinding, clicking, or humming sound from inside the door when you press the switch, but the window moves little or not at all. This points to a problem with the motor or the attached regulator.
- Window Stops or Jams: The window might go up a few inches and then stop, requiring you to press the switch multiple times to get it fully closed.
- No Movement, But You Hear a Click: If you hear a click from the door but the window doesn't move, the motor is likely receiving power but is unable to operate.
- Total Failure: The window doesn't move at all, and you don't hear any noise from the door. This can also be caused by a blown fuse, so it's worth checking the fuse box first.
A Note on Recalls and TSBs
There was a safety recall (NHTSA campaign 04V011000) for 2003 model year Corollas concerning door glass bolts that could loosen, causing the glass to separate from the window regulator. This could produce a rattling noise when operating the window. While this recall doesn't directly involve the motor, it affects the window's operation. No other window motor-specific recalls or Technical Service Bulletins (TSBs) were found for the 1993-2003 model years during our search.
Choosing an Aftermarket Window Motor
For a vehicle of this age, an aftermarket window motor or motor/regulator assembly is a cost-effective choice. The original Toyota parts are high quality, but can be expensive. Aftermarket brands like Dorman and Cardone offer direct-fit replacements that perform well for daily use.
- Good (Value Tier): Brands like Surtrak Axle or other lower-cost options can be a good value for a car that sees limited use. Quality can be inconsistent, but they get the job done on a budget.
- Better (Standard Tier): Cardone is a well-known remanufacturer and aftermarket producer. Their parts are generally considered a reliable, standard replacement option.
- Best (Enhanced/OEM-Quality Tier): Dorman is a popular aftermarket brand that often re-engineers parts to fix common failure points of the original design. Many Dorman regulators for this Corolla come as a complete, pre-assembled unit with the motor, which can make installation easier.
Pro Tip: Replace the Assembly
On the 1993-2003 Corolla, the window motor and the regulator (the track assembly) work together. Often, when the motor fails, the regulator is also old and worn. It is highly recommended to buy and install a complete window motor and regulator assembly. 🎬 Watch this step-by-step motor and regulator replacement guide. This prevents you from having to take the door apart a second time if the old regulator fails shortly after you replace the motor.
Cost to Replace a Toyota Corolla Window Motor
Here is a general breakdown of what you can expect to pay. Prices vary based on your location and chosen part quality.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Motor/Assembly | $51.95 - $186.56 |
| New OEM Motor (Part Only) | $300 - $450+ |
| Shop Labor | $120 - $200 |
| Total (DIY) | $51.95 - $186.56 |
| Total (Professional) | $170 - $390+ |
Frequently Asked Questions
Is it hard to replace a Corolla window motor myself?
For a DIYer with basic tools, this is a manageable job. The process involves removing the interior door panel, peeling back the weather barrier, unplugging the old motor, unbolting the motor and regulator assembly, and then installing the new one. The trickiest part can be aligning the window glass with the new regulator. 🎬 Follow this walkthrough for replacing a front window regulator. Expect it to take 1-2 hours.

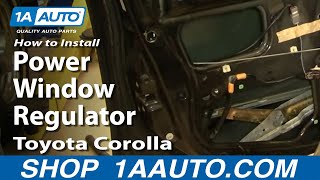

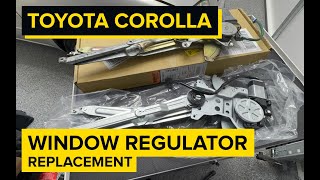

🎬 See how to replace the regulator on 1998-2002 models.Should I buy just the motor or the whole regulator assembly?
It is strongly recommended to buy the complete motor and regulator assembly. The plastic parts and cables on the original regulator are likely brittle and worn after 20+ years. Replacing the whole unit at once saves you from a future repair and ensures all components are new.
My window is crooked. Is that the motor?
A crooked window is usually a sign of a broken or damaged window regulator, not the motor itself. The regulator is the track that guides the glass. When its plastic guides or cables break, the window can tilt inside the door. Since the motor and regulator are sold as an assembly, replacing it will fix this issue.
The window works from the driver's master switch but not the passenger switch. What's wrong?
This almost always indicates a faulty switch on the passenger door, not a bad window motor. Since the motor works when commanded by the driver's switch, you know the motor and its wiring are good. You likely only need to replace the individual door switch.

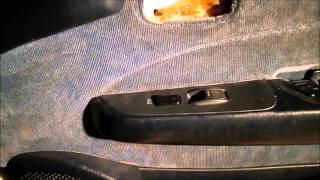

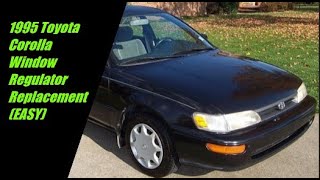

Helpful Videos
Technical Specifications

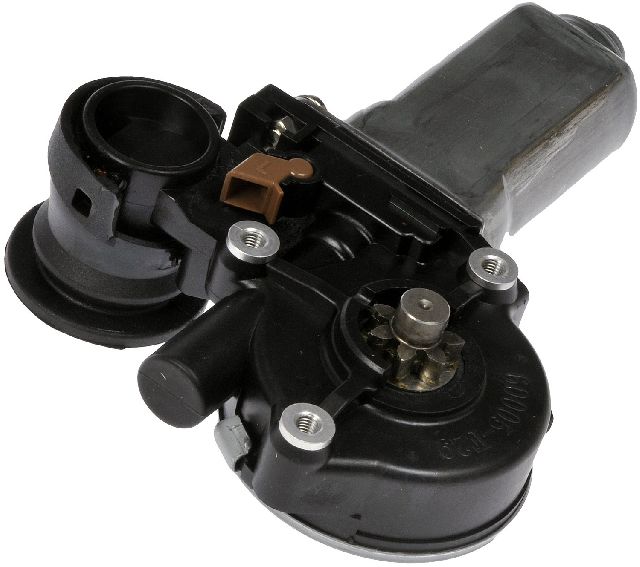

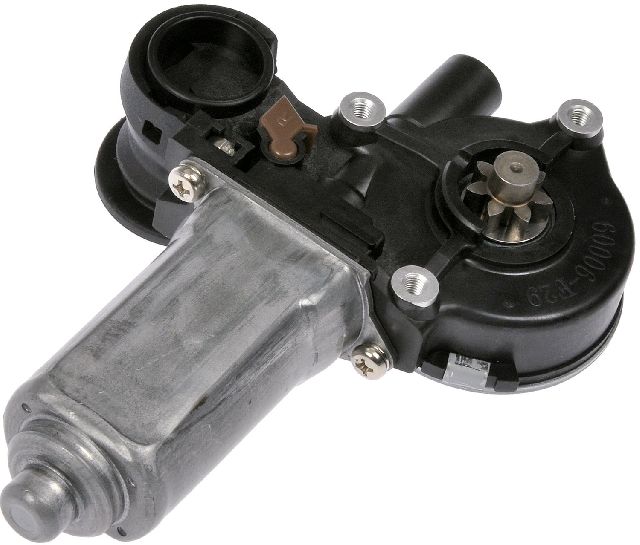

OEM Part Numbers: 85720-02040 85710-02040 85720-02050 85710-02050 69820-02050
The window motor is a 12-volt DC electric motor. For the 1993-2003 Corolla, it is typically sold as part of the window regulator assembly. There are different part numbers for the front driver, front passenger, and rear positions. The 7th generation (1993-1997) and 8th generation (1998-2002) may use different parts, so it is critical to verify fitment by year.
