Chevrolet Corvette 1993-2004 Engine Coolant Thermostat Guide
Learn how to spot a failing thermostat on your C4 or C5 Corvette and choose the right replacement part.
- A stuck-open thermostat is the most common failure, causing a P0128 code and a slow-to-warm engine.
- For most owners, an OEM-temperature (180°F for C4, ~187°F for C5) thermostat from a brand like ACDelco is the best choice.
- Replacement is a simple DIY task that can be done in under 2 hours with basic tools, saving significant labor costs.
- Verify if your C5 needs a separate thermostat or an integrated housing/thermostat assembly before purchasing.
Symptoms of a Failing Corvette Thermostat
A thermostat can fail in a few ways, and each has distinct symptoms. Being able to recognize them can save you from a much bigger headache down the road.
| Symptom | Cause | Description |
|---|---|---|
| Engine Overheating | Stuck Closed | The most dangerous failure. The temperature gauge will climb rapidly, often past 240°F. You might see coolant boiling over from the reservoir. This happens because coolant is blocked from reaching the radiator. | 🎬 Watch how to fix an overheating C5 with a new thermostat.
| Engine Too Cold / Slow to Warm Up | Stuck Open | The temperature gauge may never reach the normal operating range, or it will take an extremely long time. Your heater may also blow cool air instead of hot. This can trigger a Check Engine Light with code P0128. |
| Erratic Temperature Readings | Sticking / Intermittent | The temperature gauge may swing wildly from cool to hot and back again. This indicates the thermostat is sticking and then suddenly releasing. |
| Coolant Leaks | Bad Gasket / Housing | You may notice coolant weeping or dripping from around the thermostat housing on the front of the engine. This can be from a failed gasket or a porous, aging housing. |
Known Issues, Recalls, or TSBs
For the 1993-2004 Corvette, there are no specific recalls or widespread Technical Service Bulletins (TSBs) issued by GM or the NHTSA for the engine coolant thermostat. Failures are typically due to normal wear and tear over time. The most common issue reported by owners is the thermostat failing in the open position, which leads to a P0128 trouble code.
Choosing the Right Aftermarket Thermostat
For a stock or lightly modified Corvette, sticking with an OEM temperature thermostat is the most reliable choice. Lower temperature thermostats (e.g., 160°F) are popular in the performance community but can cause issues on a stock vehicle.
A Note on Low-Temp Thermostats (160°F)
Installing a 160°F thermostat on a stock C4 or C5 Corvette will likely cause a P0128 Check Engine Light. The engine's computer expects the coolant to reach a certain temperature within a set time, and a low-temp thermostat can prevent this. To use a low-temp thermostat without issues, you typically need to have the engine's computer tuned to adjust the fan activation temperatures and avoid the trouble code.
Brand Quality Tiers
- OEM-Equivalent (Best for most owners): ACDelco is the original equipment manufacturer and the benchmark for quality and fit. Motorad has also been cited as an OEM supplier for some C5 models and is considered a good quality brand.
- Quality Aftermarket: Brands like Gates and Stant are widely available and considered reliable choices by many owners for a standard replacement.
- Performance Brands: Mishimoto specializes in performance cooling products, including lower-temperature thermostats. These are best for modified cars and may require a tune. Some users have reported issues with their included gaskets.
- Brands to be Cautious With: Some owners advise against using "fail-safe" thermostats (like some offered by Motorad) which are designed to lock open permanently after a single overheating event, requiring replacement.
Pro Tip: Check Your Housing Style

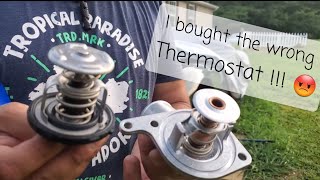

On C5 Corvettes (1997-2004), some models have a thermostat that is separate from its housing, while others have an integrated unit. Before ordering, it's a good idea to visually inspect your current setup or remove it to confirm which style you need 🎬 See a quick walkthrough of the C5 thermostat replacement process. to avoid buying the wrong part.
Replacement Cost
Replacing the thermostat on a C4 or C5 Corvette is a straightforward and affordable job.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Thermostat | $18 - $97 |
| Shop Labor | $100 - $250 |
| DIY vs. Shop | Doing it yourself can save you over $150 in labor costs. |
Frequently Asked Questions (FAQ)
Can I replace the thermostat myself?
Yes, this is one of the easiest maintenance jobs you can do on a 1993-2004 Corvette. It typically requires only basic hand tools like a 10mm socket/wrench and pliers. The job involves draining a small amount of coolant, removing two bolts, and swapping the part.
What temperature thermostat should I use?

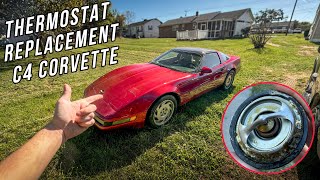

For a stock daily-driven Corvette, use the OEM temperature: 180°F for a 1993-1996 C4 LT1, and a 🎬 Watch this step-by-step guide for replacing a C4 LT1 thermostat. 187°F (often sold as 186°F) for a 1997-2004 C5 LS1. Using a lower temperature thermostat like a 160°F model without a corresponding computer tune will likely trigger a P0128 check engine light.
Should I replace the thermostat housing at the same time?
It's not always necessary, but it's a good idea to inspect it. Over time, the original aluminum housings can become porous or corroded, causing small leaks. Since aftermarket housings are inexpensive, many owners choose to replace it as a preventative measure while they are already working in that area.
Do I need to use RTV sealant or a gasket?
No, you should not use RTV silicone. The C4 and C5 thermostats use a rubber O-ring or integrated seal that provides a sufficient seal when installed correctly. Make sure the sealing surfaces on the engine and housing are clean and free of old debris before installing the new part.
Helpful Videos
Technical Specifications

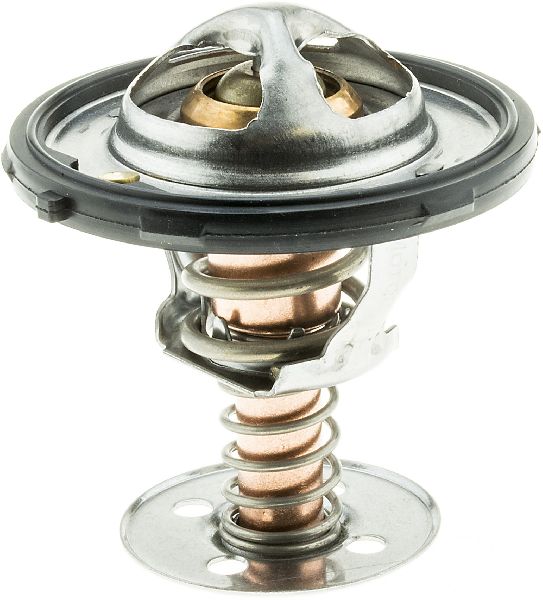

OEM Part Numbers: 12555290 12527739
C4 LT1 (1993-1996) Stock Temp: 180°F. C5 LS1/LS6 (1997-2004) Stock Temp: ~187°F (186°F) or 195°F. Housing is attached with two 10mm bolts. System requires DEX-COOL coolant or equivalent.
