Chevrolet Corvette C4 & C5 Engine Mounts: A Complete Guide (1993-2005)
Feeling vibrations or hearing clunks? Your Corvette's engine mounts might be trying to tell you something.
- Failing engine mounts on a 1993-2005 Corvette cause vibrations, clunking noises, and excessive engine movement.
- The original C5 mounts are fluid-filled and prone to leaking and failure over time.
- For most owners, ACDelco (OE) or Pioneer are reliable replacement choices that preserve ride quality.
- Replacing all mounts at once is recommended, as they wear out at a similar rate.
Understanding Engine Mount Failure in Your Corvette
The engine mounts in the 1993-2005 Chevrolet Corvette (C4 and C5 generations) are critical for both performance and comfort. They are essentially rubber and metal sandwiches, often filled with hydraulic fluid, that hold your engine in place. Over time, the rubber can crack, dry out, or the internal fluid can leak, causing the mount to fail. This is a common issue as these cars age, with failures sometimes occurring between 60,000 and 80,000 miles. A bad mount allows for excessive engine movement, which can lead to a range of symptoms from annoying vibrations to potential damage to other components.
🎬 Watch: How to identify the symptoms of failed mounts.Symptoms of a Failing Engine Mount
Spotting a bad engine mount early can save you from more significant repairs. Here’s what to look and listen for:
- Increased Vibration: This is the most common sign. You might feel a new or stronger vibration through the steering wheel, floor, or seats, especially at idle, when in gear, or when the A/C is on.
- Clunking or Thumping Noises: A loud clunk when you accelerate, shift from drive to reverse, or shut off the engine often points to a failed mount. This is the sound of the engine moving too much and hitting other parts of the engine bay.
- Visible Engine Movement: With the hood open and the car in park (with the parking brake on), have a helper briefly rev the engine or shift between drive and reverse. If you see the engine lift or shift excessively, a mount is likely broken.
- Rough Ride: A jolt when changing gears or a generally less smooth driving experience can also be a symptom.
A Note on C5 Corvette Mounts
The C5 Corvette (1997-2004) uses fluid-filled hydraulic mounts that are known to fail and leak. When they break, they can allow significant engine movement, which is not ideal for a performance car. Some owners of modified, high-horsepower cars have reported breaking stock mounts.
Choosing the Right Aftermarket Engine Mount
When replacing your Corvette's engine mounts, you have several options. For most owners, a quality aftermarket replacement that mimics the original equipment (OE) design is the best choice. Here's a look at the available brands:
| Brand Tier | Brands | Best For | Notes |
|---|---|---|---|

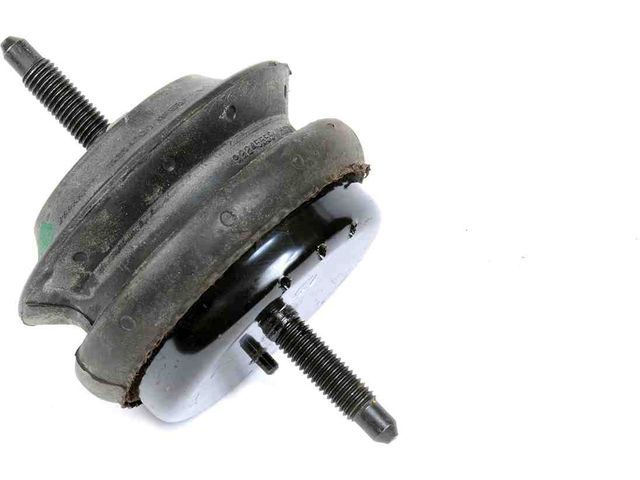

| OE Replacement | ACDelco | Owners who want the original factory ride and feel. | ACDelco is the original equipment supplier for GM. These hydraulic mounts offer the best vibration dampening for a comfortable ride but can be more expensive. They are the safest bet for a stock vehicle. |
| Quality Aftermarket | Pioneer | A good balance of quality and price for daily drivers. | Pioneer mounts are often viewed as a good quality stock replacement. They are manufactured to OE specifications and use quality rubber and bonding agents to ensure durability. |

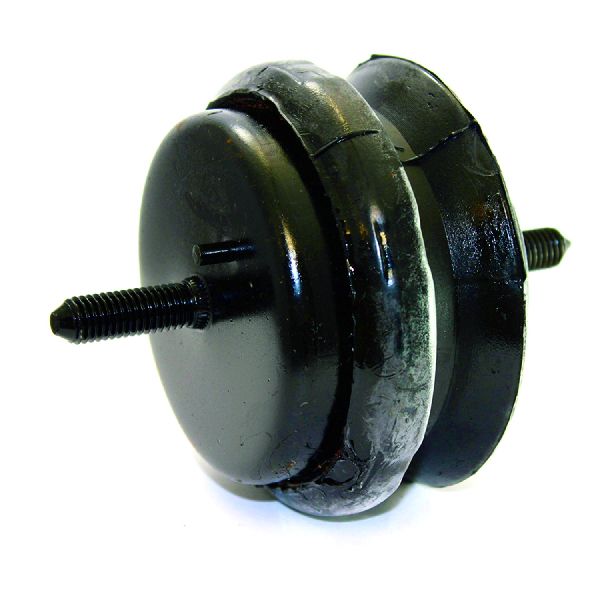

| Economy | Anchor, DEA | Budget-conscious repairs where ride quality is less of a concern. | These brands offer a low-cost solution. However, owner reviews are mixed. Some have experienced premature failure or poor fitment with Anchor mounts. DEA is a similar budget-friendly option. These may be solid rubber instead of hydraulic, leading to more vibration. |
Pro Tip: Polyurethane vs. Rubber
For track use or spirited driving, some owners upgrade to polyurethane (poly) engine mounts from brands like Hinson or AMT. These are much stiffer, reduce engine movement for better performance, but significantly increase noise, vibration, and harshness (NVH) in the cabin. For a daily driven car, sticking with a quality rubber or hydraulic mount is usually recommended.
🎬 See this walkthrough for installing polyurethane mounts on a C4.Frequently Asked Questions (FAQ)
Should I replace all engine mounts at the same time?
Yes, it is highly recommended. Engine mounts wear at a similar rate. If one has failed, the others are likely not far behind. Replacing them all at once ensures proper engine alignment and saves you from having to do the same job again soon.
Are there any recalls for 1993-2005 Corvette engine mounts?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database did not find any safety recalls specifically for engine mounts on the 1993-2005 Chevrolet Corvette. Recalls for this period were related to other issues like the steering column.
How difficult is it to replace Corvette engine mounts?
This is a moderately difficult job. It requires lifting the engine slightly with a hoist or a jack and wood block under the oil pan. Access to the mount bolts can be tight, especially on the driver's side, and may require removing other components like exhaust manifolds. It is a feasible DIY for an experienced home mechanic, but a professional shop can do it in a few hours.
🎬 Watch: Step-by-step guide to replacing your C5 motor mounts.What is the difference between C4 and C5 engine mounts?
While they serve the same function, the specific part numbers and designs differ between the C4 (1993-1996) and C5 (1997-2005) generations. The C5 mounts, in particular, are hydraulic and known for leaking. Always ensure you are ordering the correct part for your specific year and model.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10284134
The C5 Corvette (1997-2004) and some late C4 models use a hydraulic, fluid-filled engine mount design to dampen vibration.
