A Mechanic's Guide to 1993-2005 Ford Mustang Disc Brake Hardware
Don't let worn-out clips and pins ruin your Mustang's braking performance and cause annoying noises.
- Always replace your disc brake hardware when changing brake pads to ensure quiet operation and even wear.
- You must buy the correct hardware kit for your Mustang's trim level (V6, GT, or Cobra), as the brake systems are different.
- Use a high-temperature synthetic brake lubricant on all slide points to prevent pads from sticking.
- Aftermarket brands like Centric and Raybestos are considered reliable, OE-quality options by many mechanics.
Is Replacing Your Brake Hardware Really Necessary?
Yes. When you're putting on new brake pads and rotors, you should always use a new disc brake hardware kit. The old clips and springs have been through thousands of heat cycles, which makes them lose their springiness. Reusing them can lead to brake noise, uneven pad wear, and even brake drag if a pad gets stuck. For the small cost of a kit, it's cheap insurance for a quiet and effective brake job.
🎬 Watch: Step-by-step front brake pad and rotor replacement guide.Don't Forget to Lube!
One of the most important steps is properly lubricating the new hardware. Use a high-temperature synthetic brake grease on the points where the brake pads slide on the abutment clips. This allows the pads to move freely and prevents them from seizing. Ford issued a technical service bulletin (TSB) advising against using petroleum-based grease, so be sure to use a proper silicone or synthetic-based brake lubricant.
Symptoms of Failing Disc Brake Hardware
Worn brake hardware can cause problems that are often mistaken for bad pads or rotors. Here’s what to look and listen for:
- Squealing or Chirping: This is often the first sign. As the anti-rattle clips lose tension, the pads can vibrate at a high frequency when you apply the brakes.
- Rattling or Clicking: You might hear a metallic rattle when going over bumps. This happens when the hardware is too loose to hold the pads snugly in the caliper bracket.
- Uneven Pad Wear: If you notice one pad is much more worn than the other, it could be because seized or binding hardware is preventing the pad from moving correctly.
- Brake Drag: In some cases, a pad can get stuck against the rotor because of a rusted or bent clip, causing constant friction, heat, and a burning smell.
Choosing the Right Aftermarket Hardware Kit
For the 1993-2005 Mustang, several aftermarket brands offer quality hardware kits. There isn't a huge performance difference in the hardware itself, but fit and material quality are key. Brands like Centric and Raybestos are well-regarded in forums for providing OE-quality fit and materials. Dorman is another reliable option, often providing solutions for common failure points. Carlson and Dynamic Friction offer budget-friendly kits that meet basic requirements.
Pro Tip: Know Your Brakes (V6, GT, or Cobra)
The single most important factor is buying the kit that matches your Mustang's specific model. The V6, GT, and Cobra models from 1993-2005 used different brake calipers and rotors, which require different hardware. For example, 1999-2004 GT models use a twin-piston PBR front caliper, while Cobras from the same years use a larger PBR caliper designed for a 13-inch rotor. The rear brakes also differ, with Cobras featuring larger, vented rotors that require different caliper brackets and hardware. Always verify the kit is for your exact year and trim level before purchasing.
| Tier | Brands | Typical Price Range | Notes |
|---|---|---|---|
| Standard OE-Quality | Centric, Raybestos | $10 - $45 | Often preferred by mechanics for good fitment and durability. Many consider Centric and Raybestos to be part of the same parent company, offering similar quality. |
| Problem-Solver / Standard | Dorman | $8 - $30 | Known for making reliable replacement parts and sometimes offering improved-upon-OEM designs. A solid choice for a standard replacement. |
| Economy | Carlson, Dynamic Friction | $6 - $25 | Basic, functional hardware that will get the job done. A good choice for budget-conscious repairs. Dynamic Friction and Centric/Raybestos are sometimes linked. |
Known Issues, Recalls, and TSBs
While there were no specific recalls for the disc brake hardware itself on 1993-2005 Mustangs, Ford did issue several Technical Service Bulletins (TSBs) related to brake service. One notable TSB from 1998 advised technicians to stop using petroleum-based grease on brake components, as it can damage rubber parts. Another TSB for 2005 models addressed potential park brake cable freezing, which could cause the rear brakes to drag. Always check for the latest TSBs when diagnosing brake issues.
Frequently Asked Questions (FAQ)
Can I reuse my old brake hardware?
It is strongly recommended not to. Old hardware loses its tension from heat and can be corroded, leading to noise and improper brake function. For the low cost, new hardware is always the best practice.
What is an abutment clip?
Abutment clips, also called anti-rattle clips, are the metal pieces that snap into the caliper bracket. The brake pads' metal backing plates rest on and slide against these clips. They provide a smooth, clean surface for the pads to move on and prevent rattling.
Is the hardware different for the front and rear brakes?
Yes, absolutely. The front and rear calipers are different sizes and designs, so they require specific hardware kits. You must purchase separate kits for the front and rear axles.

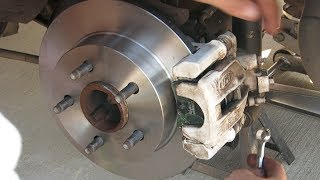

🎬 See this walkthrough for replacing rear brake pads and rotors.What's the difference in hardware for a GT vs. a Cobra?
The 1994-2004 Cobra models came with larger, more powerful brakes than the GTs, including larger calipers and rotors. For example, the rear Cobra rotors are vented and thicker than the solid GT rotors, requiring a different caliper bracket and pad clips to accommodate the size difference. You must buy the hardware kit specific to your car's trim level.

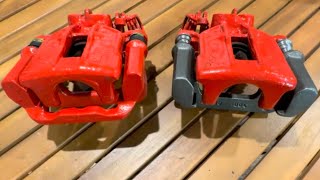

🎬 Watch: Visual comparison of Cobra vs GT rear caliper differences.Helpful Videos
Technical Specifications
Hardware kits vary based on front/rear axle and vehicle trim (V6, GT, Cobra). Cobra models (1994-2004) use hardware compatible with PBR twin-piston calipers and larger rotors (13" front, 11.65" rear). GT models (1999-2004) also use twin-piston front calipers but for smaller 10.8" rotors. Rear hardware for Cobras accommodates thicker, vented rotors compared to the GT's solid rotors.
