GMC Jimmy 4WD Actuator Guide for 1993-2005 Models
If your Jimmy's four-wheel drive won't engage, the 4WD actuator is a common and fixable problem.
- The 4WD actuator on the '93-'05 Jimmy is a vacuum-operated part under the battery that pulls a cable to engage the front axle.
- Failure is common and usually presents as blinking 4WD lights or a complete inability to engage four-wheel drive.
- Before replacing, check for cracked vacuum lines or transmission fluid in the lines, as these can cause the same symptoms.
- Aftermarket brands like Dorman offer improved designs that are more durable than the original factory part.
Is Your Jimmy's 4WD Failing to Engage?
When you need four-wheel drive, the last thing you want to see is a blinking light on the dash or feel no response from the front wheels. For the 1993-2005 GMC Jimmy, a failure to engage 4WD often points to a problem with the vacuum-operated 4WD system. The actuator, a small diaphragm-powered device, is a frequent point of failure. It can prevent your truck from going into or coming out of four-wheel drive.
Common Symptoms of a Bad 4WD Actuator
- 4WD Won't Engage: This is the most common sign. You press the 4HI or 4LO button, and nothing happens, or the light just blinks without ever going solid.
- Stuck in 4WD: The actuator can fail in the engaged position, leaving you stuck in four-wheel drive.
- Dash Lights Indicate 4WD, But No Power to Front Wheels: The system might think it's in 4WD, but if the actuator hasn't physically engaged the front axle, you'll only have rear-wheel power.
Check for Related Problems First!
Before replacing the actuator, it's wise to check for two other common issues. A bad seal between the transmission and transfer case can leak fluid into the vacuum lines, destroying the actuator and the vacuum switch on the transfer case. If you see transmission fluid in the vacuum lines, you have a bigger problem that must be fixed. Also, check all vacuum lines for cracks and leaks, as a simple vacuum leak can mimic a failed actuator.
Choosing the Right Aftermarket 4WD Actuator
For this specific part, aftermarket options are often considered an upgrade over the original factory part. The original design is known to fail when its internal rubber diaphragm tears. Many aftermarket brands have addressed this weakness.

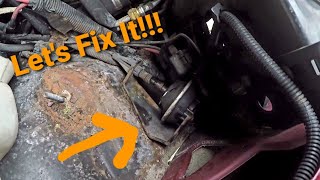

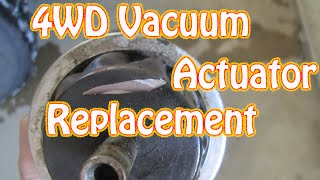

- Dorman: Dorman is a widely available and popular choice. Their "OE FIX" actuator (part number 600-102XD) features an improved diaphragm with a mesh reinforcement, designed to be more durable than the original GM part. It is a common DIY replacement that reliably solves the issue. 🎬 See this step-by-step guide to replacing your vacuum actuator
- Standard Ignition (SMP): A well-regarded brand, Standard Ignition offers direct-fit replacement actuators that are tested for reliability and built to withstand tough conditions. They are a solid alternative to the OEM part.
- Rostra Powertrain: Rostra manufactures a wide range of transmission and drivetrain components and states their parts are designed to meet or exceed original equipment performance. They are a viable option if available for your vehicle.
Pro Tip: Test the Cable
While the battery and tray are removed to access the actuator, manually pull on the actuator cable that runs down to the differential. It should move smoothly. If the cable is seized from rust or damage, replacing only the actuator will not fix your 4WD.
| Part Type | Estimated Cost |
|---|---|
| New OEM (AC Delco) | $100 - $170 |
| New Aftermarket | $95 - $124 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions
Why is my 4WD light blinking?
A blinking 4WD light on your GMC Jimmy means the system is trying to engage but hasn't received confirmation that the action is complete. This can be caused by a bad actuator, a vacuum leak, a faulty transfer case switch, or an issue with the front axle engagement sensor.

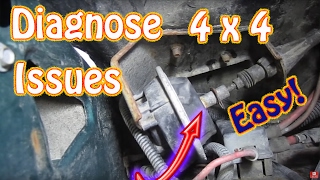

🎬 Watch: How to diagnose and repair common Jimmy 4WD issuesCan I test my 4WD actuator?
Yes. With the engine running, have a helper press the 4WD button. You should see the actuator under the battery tray pull the attached cable. If it doesn't move, you can use a hand-held vacuum pump on the actuator's vacuum port to see if it holds vacuum and retracts. If it doesn't, the diaphragm is torn and the actuator is bad.
Is this the same as a hub actuator?
No. The 1993-2005 GMC Jimmy does not have locking hubs that are actuated. The front hubs are always engaged with the axles. This part is a front axle actuator that engages a disconnect system within the front differential itself.
What is the difference between the actuator and the transfer case switch?
The transfer case switch is a small, inexpensive vacuum valve located on the transfer case. It's the part that tells the actuator when to engage by routing engine vacuum to it. The actuator is the part under the battery that does the physical work of pulling the cable to lock the front axle. The switch can fail and is often replaced as a precaution.

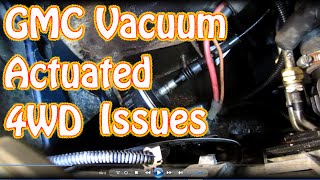

🎬 Watch: How to replace the transfer case vacuum switchHelpful Videos
Technical Specifications
OEM Part Numbers: 25031740
Vacuum Operated Front Axle Actuator
