Guide to the 1993-2006 BMW M3 Electric Fuel Pump
Keep your high-performance S50, S52, or S54 engine running strong by understanding its fuel pump.
- A failing fuel pump is a common issue on E36 and E46 M3s, often occurring after 100,000 miles.
- Key symptoms include the engine cranking but not starting, sudden stalling, and hesitation under acceleration.
- Replacement is a DIY-friendly job, accessed under the rear seat, and should take 1-2 hours.
- For reliability, choose an OEM supplier like Delphi over cheaper, unproven brands.
Is Your M3's Fuel Pump Failing?
A failing fuel pump is one of the few parts that can leave you stranded with little warning. For both the E36 and E46 M3, the fuel pump is a known wear item that typically needs replacement. Owners report failures anywhere from 70,000 to over 140,000 miles. If your M3 has over 100,000 miles and is on its original pump, it's wise to consider a replacement as preventative maintenance.
Common Symptoms of a Bad Fuel Pump
- Engine Cranks but Won't Start: The most common and serious symptom. You may hear the engine turn over, but it won't fire up because it's not getting fuel.
- Sudden Engine Stalling: The car might start and run for a moment before dying, or it may stall unexpectedly while driving.
- Hesitation and Power Loss: Under acceleration, the car may sputter, hesitate, or feel sluggish as the failing pump struggles to supply enough fuel.
- Long Crank Time: The engine takes longer than usual to start, especially on the first try of the day.
- Whining Noise: You may hear a loud whining or buzzing sound from the rear seat area, which is where the fuel pump is located.
Choosing the Right Aftermarket Fuel Pump
When your M3's fuel pump fails, you have a few options. A genuine BMW pump assembly is the most expensive choice. Aftermarket options provide a more affordable solution, but quality can vary.
OEM vs. Aftermarket Quality:
The original fuel pump for the E46 M3 was made by Delphi. Buying an OEM-branded part like Delphi often gets you the same quality as the genuine BMW part without the dealership price tag. Many M3 owners and specialists recommend sticking with OEM or a reputable OEM supplier for critical components like the fuel pump to ensure reliability, especially on modified cars.
Available Brands:
- Delphi: As an Original Equipment Manufacturer (OEM) for BMW, Delphi is a trusted choice. It is designed to meet all original specifications for performance and fitment. Choosing a Delphi pump is a reliable way to restore original performance without paying for the BMW logo.

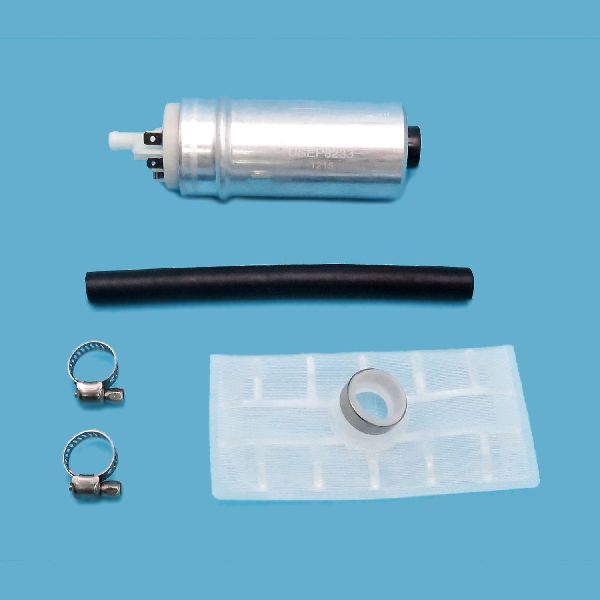

- US Motor Works: This brand offers a more budget-friendly alternative. While some users report good experiences, others note that cheaper pumps can have a shorter lifespan. For a high-performance vehicle like an M3, a proven OEM-quality pump is generally the safer long-term investment.
Pro Tip: Replace the Assembly and Filter
For the E46 M3, it's often recommended to replace the entire fuel pump assembly, which includes the housing and fuel level sender. For both E36 and E46 models, it is critical to also replace the fuel filter at the same time as the pump. A clogged filter can strain a new pump and cause it to fail prematurely.
Known Issues, Recalls, and Service Bulletins
While searches for the 1993-2006 M3 specifically did not show any fuel pump recalls, BMW has issued recalls for fuel pump issues on other models from similar eras. These often involved issues like cracked connectors leading to fuel leaks or electrical failures causing the pump to stop working. On the E36, a melted electrical connector on the pump's top plate can be a sign of the pump drawing too much power and nearing failure. No specific Technical Service Bulletins (TSBs) for fuel pump failure on the 1993-2006 M3 were found during the search.
Cost of Replacing an M3 Fuel Pump
| Item | Estimated Cost |
|---|---|
| New Aftermarket Fuel Pump Assembly | $49 - $97 |
| New OEM (Delphi) Fuel Pump Assembly | $100 - $370 |
| New Genuine BMW Fuel Pump Assembly | $400 - $620+ |
| Shop Labor for Installation | $150 - $300 |
Frequently Asked Questions
Is it hard to replace the fuel pump on an M3?
No, it is a relatively easy DIY job for both E36 and E46 models. The pump is accessed by removing the rear seat bottom cushion. The main challenge is safely working with gasoline and removing the lock ring that secures the pump, which can be done with a hammer and a blunt screwdriver if you don't have the special tool.
Do I need to replace the whole assembly or just the pump?
You can buy just the pump motor and install it into your existing cradle, which is a cheaper option. However, this requires more work and carries a risk of installation error. Buying a complete assembly from a brand like Delphi is a more straightforward, plug-and-play solution that also replaces the level sender, which can also fail.
What's the difference between the E36 and E46 M3 fuel pump?
While the basic function and location are similar, the specific pump assemblies are different between the E36 and E46 generations and are not interchangeable. The E46 system, in particular, relies on a siphoning jet pump to transfer fuel across the saddle tank, which can be affected by a weak main pump. Always ensure you are ordering the correct part for your specific year and model.
Can I drive with a failing fuel pump?
It is not recommended. A failing pump can cause the car to stall at any time, which is a major safety risk, especially in traffic or on a highway. If you experience symptoms of fuel pump failure, you should have the vehicle inspected and repaired as soon as possible.
Technical Specifications
OEM Part Numbers: 16142229684
The fuel pump is a submerged electric pump located in the right side of the fuel tank. It works in conjunction with a siphoning jet pump to draw fuel from the left side of the M3's saddle-style tank. The system is designed to supply constant pressure to the fuel rail.
