Your 1993-2006 Chevrolet Blazer Engine Coolant Bypass Hose Explained
Understand this critical coolant hose on your Blazer's 4.3L V6 and how to replace it before a small leak causes major engine damage.
- A leaking bypass hose is a serious issue that can lead to engine overheating and catastrophic failure.
- Symptoms include visible coolant leaks, a sweet smell, and a rising temperature gauge.
- Use a pre-molded hose from a quality brand like ACDelco, Gates, or Dayco for a reliable repair.
- This is a very feasible DIY project for owners with basic tools, and can be completed in under an hour.
Is a Leaking Bypass Hose a Big Deal?
Yes, even a small leak from the engine coolant bypass hose should be fixed right away. This hose is under constant pressure and heat. A tiny crack can quickly turn into a big split, causing you to lose a large amount of coolant in a short time. This can lead to your engine overheating, which may cause serious and expensive damage like a warped cylinder head or blown head gasket.
Symptoms of a Failing Bypass Hose
Look for these common signs that your bypass hose needs to be replaced:
- Visible Coolant Leaks: You might see green, orange, or pink fluid dripping from the front of the engine, often onto the motor mount.
- Sweet Smell: Leaking antifreeze has a distinct sweet smell. You'll likely notice it around the front of the vehicle after driving.
- Engine Running Hot: If you're losing coolant, your temperature gauge may start to climb higher than normal, especially when going up hills or sitting in traffic.
- Steam from Under the Hood: Coolant dripping onto the hot engine will create steam or white smoke.
Check Your Fittings
The metal fittings on the water pump and intake manifold where the hose connects can rust and corrode over time. Before installing a new hose, inspect these fittings. If they are badly rusted or crumbling, they should be replaced to ensure the new hose seals properly.
Choosing the Right Aftermarket Hose
For a vehicle like the 1993-2006 Blazer, aftermarket hoses offer excellent quality and value. The key is to choose a reputable brand and ensure the hose is molded to the correct shape. A straight piece of hose can kink and restrict coolant flow.
- Premium Aftermarket (ACDelco, Gates): ACDelco is the original equipment (OE) supplier for GM, so their parts are a direct replacement. Gates is a highly respected brand that is also an OE supplier for many carmakers, including GM. Both are trusted choices for fit and durability.
- Quality Aftermarket (Dayco, Continental): Dayco and Continental are also well-known brands that produce reliable hoses. They provide a great balance of quality and price and are a solid choice for this repair.
Honestly, for this part on a Blazer, you can't go wrong with any of these four brands. The most important factor is getting the correct pre-molded hose for your vehicle to ensure a perfect fit.
Always Replace the Clamps
The original spring-style clamps can lose their tension over time. It's a good idea to replace the hose clamps whenever you replace a hose. Simple worm-gear style clamps are inexpensive and provide a tight, reliable seal.
Cost to Replace a Coolant Bypass Hose
| Part or Service | Estimated Cost |
|---|---|
| DIY: Aftermarket Hose | $21 - $45 |
| Professional Installation (Parts & Labor) | $120 - $250 |
Cost estimates are for the part itself and do not include the cost of new coolant or specialized tools. Professional installation costs can vary based on local labor rates.
Frequently Asked Questions
Can I replace the bypass hose myself?
Yes, this is a DIY-friendly job for most people with basic hand tools. The job involves draining some coolant, using pliers to remove the old clamps, and swapping the hose. The most difficult part is often just reaching the hose, which can be in a tight spot.
Are there any recalls for the Blazer bypass hose?
No, there are no active recalls or widespread Technical Service Bulletins (TSBs) from General Motors for the engine coolant bypass hose on the 1993-2006 Chevrolet Blazer.
Should I use a special type of coolant?
Yes. These Blazers originally used DEX-COOL (orange) coolant. It is important not to mix it with conventional green coolant, as this can cause sludge to form in your cooling system. When you refill the system, use a coolant that is compatible with DEX-COOL.
What is "burping" the cooling system?
After replacing the hose and refilling with coolant, you need to remove any trapped air from the system. You can do this by leaving the radiator cap off, starting the engine, and letting it run for several minutes until it reaches operating temperature. You will see bubbles come out of the radiator neck. Once the bubbles stop and the coolant level is stable, top it off and replace the cap.
Technical Specifications

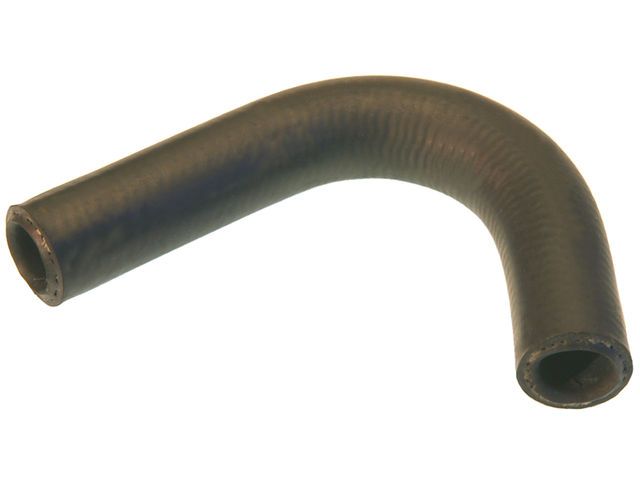

OEM Part Numbers: 14155S
Typically made of EPDM rubber, molded to fit the 4.3L V6 engine. Connects the water pump housing to the intake manifold.
