Nissan Maxima Engine Oil Pressure Switch Guide (1993-2008)
Is your oil light on or do you see a leak? Here’s what you need to know about your Maxima's oil pressure switch.
- The most common failure is an oil leak from the switch itself; check this first.
- Never drive with the oil pressure light on; the risk of catastrophic engine damage is too high.
- Replacement is simple, but you must use Teflon tape on the threads to prevent leaks.
- For reliability, choose a quality aftermarket brand like Beck Arnley or Standard Ignition.
Is Your Maxima's Oil Pressure Switch Failing?
The engine oil pressure switch, also called a sending unit, is a common failure point on the 1993-2008 Nissan Maxima. Fortunately, the signs of failure are usually obvious. Knowing what to look for can help you decide if it's time for a replacement.
Top Symptoms of a Bad Oil Pressure Switch
- Oil Leaks: The most common failure is the switch itself leaking oil. You may notice a few drops of oil on the ground under the engine or see oil residue around the sensor, which is located near the oil filter. On 4th generation Maximas (1995-1999), this is a very well-known issue. 🎬 Watch: See what a leaking switch looks like on a Maxima.
- Oil Light On or Flickering: The oil light on your dashboard may turn on, flicker, or stay on, even when the engine oil level is full. This can happen because the sensor has failed internally and is sending a false signal. Do not ignore this light; always check your oil level first. 🎬 Learn more about why your oil light might be blinking.
- Incorrect Gauge Reading: If your Maxima has a factory oil pressure gauge instead of just a light, a bad sending unit can cause the needle to read zero, max out, or jump around erratically.
Do Not Drive With the Oil Light On
An illuminated oil pressure light could mean two things: either this inexpensive switch has failed, or your engine has lost oil pressure for a much more serious reason (like a failed oil pump). Driving the car could turn a $20 fix into a catastrophic engine failure. It is not worth the risk.
Choosing the Right Aftermarket Switch
For a part this critical, quality matters. While an OEM switch from Nissan is an option, several aftermarket brands offer excellent quality, sometimes from the same factory that supplies Nissan.
- Tier 1 (OEM Quality): Beck Arnley and Standard Ignition (SMP) are top choices. Beck Arnley is well-known for sourcing parts from original equipment manufacturers, so you might get an OEM part in their box. Standard Ignition has a long history of making reliable electronic parts in North America.
- Tier 2 (Reputable Aftermarket): Facet is an established European brand that produces quality components and is a solid choice.
- Tier 3 (Economy): Brands like Global Parts and Rostra Powertrain are typically budget-focused. While they offer a low price, for a sensor that protects your engine, investing in a higher-tier brand is strongly recommended for long-term reliability.
Pro Tip: The original switch often requires a 27mm deep socket for removal, but many aftermarket replacements use a different size, like 22mm. Check your new part and make sure you have the right tool before you start the job.
Cost of Replacing the Oil Pressure Switch
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $14 - $125 |
| Shop Labor | $66 - $140 |
| Total Professional Replacement | $80 - $265 |
Costs are estimates and can vary by location and vehicle condition.
Frequently Asked Questions
Can I really not drive my car if the oil light is on?
You should not. The risk of destroying your engine is too high. The light indicates low pressure, not low oil level. If the oil pump has failed, you could ruin the engine in minutes. Have the vehicle towed to a safe location for diagnosis.
Why is my new switch leaking?
The most common reason for a new switch to leak is improper installation. The threads on the switch must be sealed. Many new switches come with a pre-applied sealant, but if yours doesn't, you must wrap the threads with Teflon tape (plumber's tape) before installing it to ensure a leak-proof seal.
Where is the oil pressure switch located on my Maxima?
On the 1993-2008 Maxima, the oil pressure switch is screwed into the engine block, typically right next to the oil filter. This makes it relatively easy to access from underneath the vehicle during an oil change.
Is this a good DIY job for a beginner?

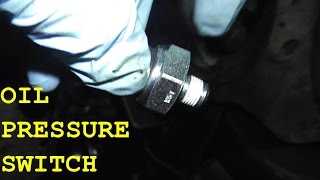

Yes, this is a great beginner-level repair. It involves unplugging the electrical connector, unscrewing the old switch with a special socket, sealing and installing the new switch, and reconnecting the wire. 🎬 Watch this step-by-step guide to replacing the switch yourself. The main challenge is dealing with the oil that will spill out if you don't drain the engine first.
Helpful Videos
Technical Specifications
The switch is typically a single-pin sensor located on the engine block, adjacent to the oil filter.
