Choosing the Right Spark Plug for Your 1993-2011 Honda XR650L
Keep your legendary dual-sport running strong by selecting the correct new aftermarket spark plug.
- The standard OEM spark plug is NGK DPR8EA-9 or the Denso equivalent X24EPR-U9; these are highly recommended and affordable.
- Replacement is a simple, 15-minute DIY job requiring a basic 18mm spark plug socket.
- While iridium plugs offer longer life, the performance benefit on the XR650L is minimal for the extra cost.
- Hard starting or no-spark issues are often caused by a failing CDI unit, not the spark plug itself.
Symptoms of a Failing Spark Plug
A worn or fouled spark plug can cause several noticeable problems on your XR650L. Because it's a single-cylinder engine, any issue with the spark is immediately apparent. You might experience difficulty starting the bike, especially when cold. Other signs include a rough idle, engine misfires (a popping or sputtering sound), reduced power, and worse fuel economy. In some cases, a very bad plug can prevent the bike from starting at all. 🎬 Watch: Troubleshooting a no-spark condition on your XR650L Checking the plug is often the first step in diagnosing running issues.
Choosing the Right Aftermarket Spark Plug

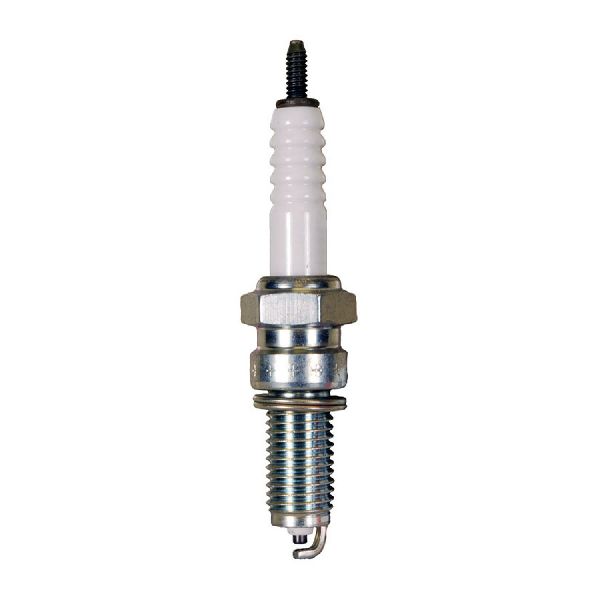

When shopping for a new spark plug, you have a few options. The original equipment (OEM) plug for the XR650L is the NGK DPR8EA-9. Denso's equivalent is the X24EPR-U9. Both are excellent, reliable choices. Aftermarket brands offer different types of plugs at various price points.
Brand & Type Comparison
| Brand/Type | Assessment |
|---|---|

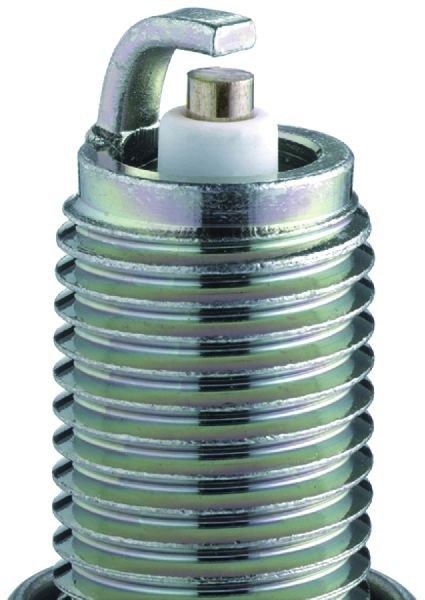

| NGK / Denso (Standard) | These are the OEM-spec plugs. They are affordable, reliable, and designed specifically for the XR650L's engine. You cannot go wrong with the standard NGK DPR8EA-9 or Denso X24EPR-U9. They provide consistent performance and are the go-to for most riders. |

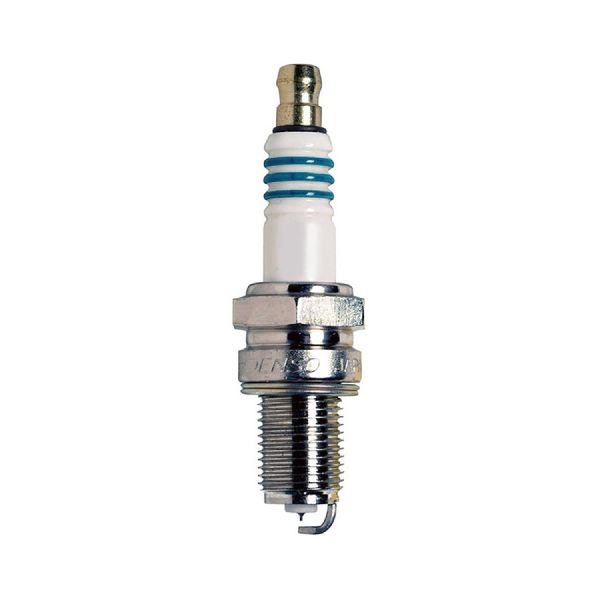

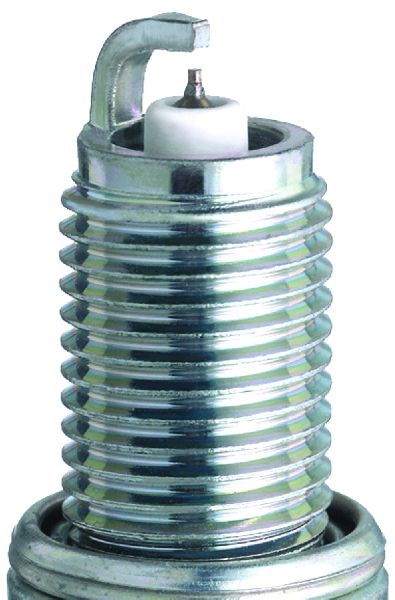

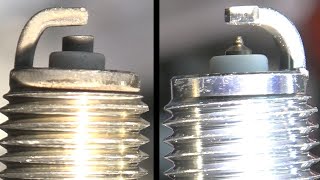

| NGK / Denso (Iridium) | Iridium plugs, like the NGK DPR8EIX-9, 🎬 See a quick demonstration of an Iridium plug installation have a very fine center electrode. This allows for a more consistent and stable spark. They are designed for high-performance and have a much longer service life than standard plugs. While more expensive, they can offer slightly better starting and throttle response. However, for the XR650L's relatively simple engine, the benefits may not be as dramatic as in a high-tech, high-revving sportbike. |
| Champion | Champion offers compatible plugs like the RA6HC. They are a well-known brand and provide a functional, budget-friendly alternative. While they will work, most XR650L owners and mechanics prefer to stick with the Japanese OEM brands (NGK, Denso) which have a long-standing reputation for quality and compatibility with Honda engines. |
A Note on Heat Range
You may see plugs with different numbers, like DPR7EA-9 or DPR9EA-9. This number indicates the heat range of the plug. The '8' in the standard plug is the factory-recommended heat range. A lower number ('7') is a hotter plug, and a higher number ('9') is a colder plug. Unless you have a heavily modified engine or are riding in extreme conditions, it is always best to stick with the manufacturer's recommended heat range.
Cost of Aftermarket Spark Plugs
The cost for a new spark plug is low, making it an easy maintenance item to keep up with. Prices will vary based on the type and brand you choose.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Copper/Nickel) | $4 - $8 |
| New Aftermarket (Iridium) | $10 - $18 |
Frequently Asked Questions
How do I replace the spark plug on my XR650L?
Replacement is straightforward. The plug is located on the right side of the engine. First, let the engine cool completely. Clean the area around the plug with compressed air to prevent dirt from falling into the cylinder. Pull the spark plug cap straight off. Using an 18mm spark plug socket, turn the plug counter-clockwise to remove it. Thread the new plug in by hand to avoid cross-threading, then tighten it with a torque wrench to the specified torque (around 13 lb-ft). Apply a small amount of dielectric grease to the inside of the plug cap and press it firmly back onto the new plug.
What is the correct spark plug gap for the XR650L?
The correct gap is 0.8mm to 0.9mm (0.031" - 0.035"). Most NGK and Denso plugs come pre-gapped from the factory. However, it is always a good practice to verify the gap with a feeler gauge before installation, 🎬 Learn how to read your spark plug to validate engine tune as they can be knocked out of spec during shipping.
Are expensive iridium plugs worth it for my XR650L?
It depends. Iridium plugs offer a longer lifespan and a more stable spark, which can contribute to easier starting and a smoother idle. For a daily rider or long-distance traveler, the extended service interval can be a convenience. For most riders, however, the standard NGK or Denso plug is more than adequate and very affordable. The performance gains on an XR650L are typically minimal.
How often should I change my spark plug?
The Honda service manual recommends inspecting the spark plug every 4,000 miles and replacing it every 8,000 miles. Given the low cost, many owners replace it every year or every 4,000 miles as preventative maintenance. A fresh plug is cheap insurance against starting and running issues.
Are there any recalls or TSBs for the XR650L spark plug?
No, there are no recalls or Technical Service Bulletins (TSBs) from Honda or the NHTSA specifically related to the spark plug for the 1993-2011 Honda XR650L. Intermittent starting or "no-spark" issues on these bikes are more commonly traced to a failing CDI (Capacitor Discharge Ignition) unit, not the spark plug itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 98069-58916
Standard Plug: NGK DPR8EA-9. Iridium Plug: NGK DPR8EIX-9. Denso Alternative: X24EPR-U9. Thread Diameter: 12mm. Hex Size: 18mm. Gap: 0.9mm (0.035").
