Toyota Corolla Back Up Light Switch: A Guide for 1993-2012 Models
If your reverse lights are flickering or have stopped working, your back up light switch may be the culprit.
- The most common symptom of failure is your reverse lights not turning on at all.
- This is a DIY-friendly repair for most owners with basic tools; a 27mm socket is often required.
- Quality aftermarket brands like Beck Arnley and Standard Ignition offer a reliable alternative to the more expensive OEM part.
- Always check the bulbs and fuses first before condemning the switch.
Is Your Corolla's Back Up Light Switch Failing?
A faulty back up light switch is more than an inconvenience; it's a safety hazard that can increase the risk of an accident while reversing. Before you assume the switch is bad, always check the bulbs and the fuse first. On many Corollas, the fuse for the reverse lights may be labeled "ECU-IG" or similar in the interior fuse panel. If the bulbs and fuse are good, the switch itself is the next logical part to inspect.
🎬 Watch: How to diagnose wiring if the switch isn't the problemCommon Symptoms of a Bad Switch:
- Reverse Lights Don't Turn On: This is the most common sign. The switch fails to complete the circuit, and the lights never illuminate.
- Intermittent or Flickering Lights: The internal contacts of the switch may be worn, causing the lights to flicker or only work sometimes when you shift into reverse.
- Lights Stay On: In rare cases, the switch can short internally, causing the reverse lights to remain on even when the car is not in reverse.
Safety & Legal Warning
Functioning reverse lights are a mandatory safety feature on all vehicles. Driving without them can make you less visible to others, increasing crash risk, and may result in a traffic ticket or failed safety inspection.
Choosing the Right Aftermarket Back Up Light Switch
For the 1993-2012 Toyota Corolla, the original equipment (OEM) switch is a reliable part, but quality aftermarket options provide excellent value. The key is choosing a brand known for durable electronic components.
Aftermarket Brand Tiers
- Top Tier (Premium Aftermarket): Brands like Standard Ignition (SMP) and Beck Arnley are often considered top-tier aftermarket choices. Standard is known for robust testing and sometimes supplies original manufacturers. Beck Arnley focuses on matching the original part's form, fit, and function, often sourcing from the same suppliers as Toyota.
- Mid-Grade (Quality Aftermarket): Rostra Powertrain and Facet fall into this category. Rostra is a long-standing manufacturer of transmission electronics and is an OEM supplier for some car brands. Facet is an established European parts maker known for electronic switches and sensors. These brands offer a good balance of quality and price.
Pro Tip: For a simple, low-cost part like a back up light switch, a quality aftermarket brand is often a smart financial choice without a significant compromise in quality compared to the more expensive OEM part. Many owners and DIY videos report good results with aftermarket switches.
Cost Comparison for Toyota Corolla Back Up Light Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $29.93 - $56.37 |
| New OEM (Genuine Toyota) | $42 - $70 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions (FAQ)
Where is the back up light switch located on my Corolla?
On most 1993-2012 Corollas with a manual transmission, the switch is screwed into the top or side of the transmission case. To access it, you may need to remove the air filter box and battery. On automatic models, it is often part of the neutral safety switch assembly, also located on the transmission.
Can I replace the back up light switch myself?

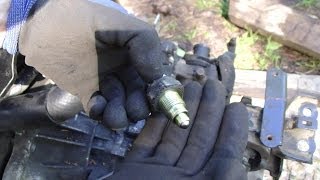

Yes, this is a DIY-friendly job for many owners. The process involves disconnecting the electrical connector, unscrewing the old switch (often with a 27mm or 1-1/16" deep socket), and installing the new one. 🎬 Watch: Step-by-step replacement for manual Corolla gearboxes Ensure the new switch includes a new crush washer to prevent leaks. The torque specification is typically around 30 ft-lbs.
Are there any recalls for this part on my Corolla?
Our search found no specific recalls or Technical Service Bulletins (TSBs) for the back up light switch on the 1993-2012 Toyota Corolla. Recalls for reverse light issues on other Toyota models, like the 2020 Corolla Hatchback, were related to wiring harnesses, not the switch itself.
What is the difference between a back up light switch and a neutral safety switch?
On a manual transmission, the back up light switch has one job: to turn on the reverse lights. On an automatic transmission, this function is often built into the neutral safety switch (or transmission range sensor). This more complex switch also prevents the car from starting while in gear and communicates the selected gear to the car's computer.
🎬 See how to diagnose the neutral safety switch on automaticsHelpful Videos
Technical Specifications
OEM Part Numbers: 84210-52050 84210-12040 84210-52010

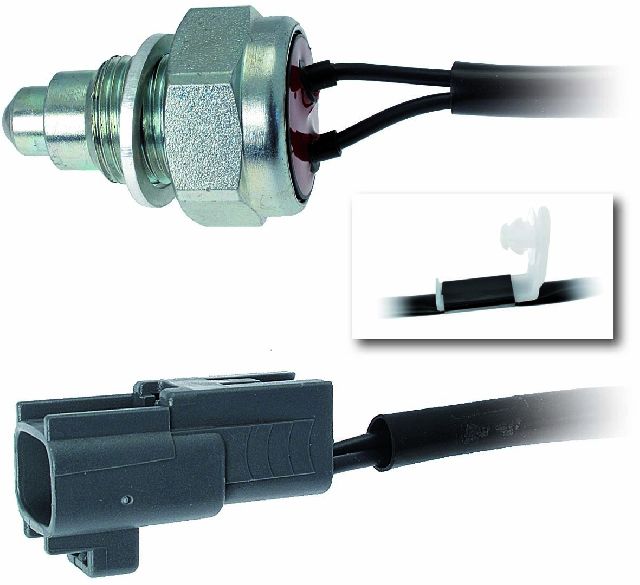

Typically a 2-pin, plunger-style mechanical switch that screws into the transmission housing. Requires a new crush washer for proper sealing upon installation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
