Ford Probe Neutral Safety Switch Guide for 1994-1997 Models
Having trouble starting your 1994-1997 Ford Probe? Your neutral safety switch could be the culprit.
- Before ordering, you MUST check if your Probe needs the 9-pin or 11-pin version of the switch.
- Common symptoms include the car not starting, or only starting in Neutral instead of Park.
- Replacement is a manageable DIY job for those with basic tools, taking about one to two hours.
- A faulty switch is a safety issue; replace it promptly to avoid being stranded or having the car start in gear.
Is Your Ford Probe Having Trouble Starting?
If your 1994-1997 Ford Probe won't start, or only starts intermittently, the neutral safety switch is a common part to check. This switch, also known as a transmission range sensor, ensures your car only starts in Park or Neutral. When it fails, it can leave you stranded or create a serious safety risk if the car starts in gear. This guide will help you understand the symptoms, choose the right replacement part, and know what to expect for costs.
Common Failure Symptoms
A failing neutral safety switch on a Probe can show several signs. You might not get a Check Engine Light, so it's important to recognize these symptoms:
- No-Start Condition: You turn the key, the dashboard lights up, but the engine doesn't crank at all. 🎬 Watch: How to diagnose a no-crank no-start issue
- Starts in Neutral but Not Park: The car starts reliably when the shifter is in Neutral, but not when it's in Park. This is a classic sign of a misaligned or failing switch.
- Starts in Park but Not Neutral: Less common, but this also points to a problem with the switch.
- Engine Cranks in Any Gear: This is a critical safety failure. If your Probe attempts to start in Drive or Reverse, the switch is bad and must be replaced immediately.
- Reverse Lights Don't Work: If your backup lights are out and you're also having starting issues, the neutral safety switch is the most likely cause.
Important: Check Your Pins!
The most common mistake when ordering this part for a 1994-1997 Probe is getting the wrong electrical connector. There are two different versions of the neutral safety switch for these model years: one with an 11-pin connector and one with a 9-pin connector. Before you order a new part, you must inspect the switch on your vehicle and count the number of pins in the connector. They are not interchangeable.
Choosing the Right Aftermarket Part
For a vehicle like the second-generation Probe, finding New Old Stock (NOS) OEM parts can be difficult and expensive. Aftermarket parts from a reputable brand like Standard Ignition are a reliable and cost-effective solution. Standard Ignition offers both the 9-pin and 11-pin versions for the Probe, covering the needs of all automatic transmission models in this year range. These parts are designed to meet or exceed original factory specifications and are a common choice for repairs. Given the age of the vehicle, there is no significant quality trade-off for this part by choosing a quality aftermarket brand over a hard-to-find OEM unit.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Neutral Safety Switch | $56 - $142 |
| Shop Labor | $100 - $150 |
| Total Estimated Cost (Installed) | $156 - $292 |
Note: Prices are estimates and can vary based on your location and the specific part required (9-pin vs. 11-pin).
Frequently Asked Questions (FAQ)
Where is the neutral safety switch located on my Ford Probe?
The neutral safety switch is mounted on the exterior of the automatic transmission case, on the driver's side. 🎬 See this video to locate the transmission range sensor You will see the gear shift lever and cable attaching to it. You will likely need to raise the front of the vehicle to access it from underneath.
Can I replace the neutral safety switch myself?
Yes, this is a DIY-feasible job for someone with basic mechanical skills and tools. The process involves raising the vehicle safely, disconnecting the battery, removing the shift linkage and electrical connector, and unbolting the old switch. The most critical step is ensuring the new switch is properly aligned in the Neutral position during installation. If you are not comfortable working under your vehicle, a professional mechanic can complete the job in about an hour.

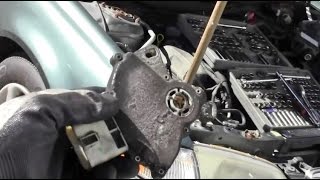

🎬 Watch: How to remove and install the sensorWere there any recalls for the Ford Probe neutral safety switch?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any specific recalls or technical service bulletins (TSBs) for the neutral safety switch on the 1994-1997 Ford Probe.
What happens if I order the wrong pin count?
The part will not work. The electrical connector simply will not plug into your vehicle's wiring harness. It is essential to verify if your car has a 9-pin or 11-pin connector before purchasing a replacement.
Helpful Videos
Technical Specifications
OEM Part Numbers: F32Z-7A247-A F4BZ-7A247-A F3RZ7F293A
Available with either a 9-pin or 11-pin electrical connector. Vehicle must be checked prior to ordering.
