Ignition Control Module Guide for 1994-1997 Mazda B2300
If your truck is stalling, misfiring, or won't start, the ignition control module could be the problem.
- The 1994-1997 Mazda B2300 is a rebadged Ford Ranger; parts and repair information are interchangeable.
- Failure is often heat-related, causing stalling when hot with a no-start condition until the module cools down.
- When replacing the ICM, you MUST use the included thermal paste to prevent the new part from failing prematurely.
- Symptoms like a no-start condition, stalling, and loss of power are the most common indicators of a bad ICM on this truck.
Understanding the Ignition Control Module in Your Mazda B2300
The 1994-1997 Mazda B2300 is mechanically identical to the Ford Ranger with the 2.3L engine. This means parts and problems are often the same. The ignition control module (ICM) is a common failure point on these trucks. It is located on the front of the intake manifold, sometimes tucked behind the A/C compressor 🎬 Watch this step-by-step guide to replacing the module., making it a little tricky to see. Heat is a major enemy of the ICM, and its location in the hot engine bay contributes to its eventual failure.
Top 5 Signs of a Failing Ignition Control Module
When the ICM starts to go bad, it can cause a range of frustrating problems. You might notice one or more of these symptoms:
- Engine Won't Start: This is the most severe symptom. The engine will crank over, but it won't start because there's no spark. This can be intermittent, especially when the engine is hot.
- Stalling for No Reason: The truck may start and run fine, then suddenly stall while driving or idling. It might start back up after it cools down.
- Rough Running and Misfires: A failing module can cause weak or inconsistent spark, leading to a rough idle, shaking, and hesitation during acceleration.

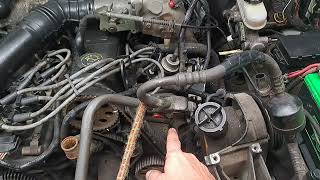

- Loss of Power: Your truck may feel sluggish and struggle to get up to speed or maintain speed on hills. This happens when one side of the dual coil pack system isn't firing correctly due to a bad ICM signal. 🎬 See how to diagnose a no-spark issue on one coil.
- Check Engine Light: While not always guaranteed on these older trucks, a failing ICM can sometimes trigger a Check Engine Light with codes related to the ignition system or cylinder misfires (P0300-P0304).
Heat is the Enemy
ICM failures are often related to heat. The module may work fine when the engine is cold but fail once it warms up. If your truck stalls and refuses to restart, but then starts perfectly after cooling down 🎬 Watch a professional diagnosis of intermittent engine cutting out. for an hour, the ICM is a prime suspect.
Choosing the Right Aftermarket Ignition Module
For a vehicle of this age, finding a new OEM (Original Equipment Manufacturer) part from Mazda or Ford (Motorcraft) can be difficult and expensive. Aftermarket parts are the most common and practical solution.
- Brand Reputation: Standard Ignition (also known as Standard Motor Products or SMP) is a well-established aftermarket brand that produces parts like the LX230 for this truck. They are generally considered a reliable choice for replacement electronics.
- OEM vs. Aftermarket: While some owners prefer to stick with Motorcraft parts for Ford-designed vehicles, a quality aftermarket part from a reputable brand like Standard Ignition will restore function effectively. Given the age of the B2300, a new aftermarket part is often a better choice than a used OEM part with unknown history.
Don't Forget the Thermal Paste!
The new ignition control module must be installed with the special heat sink compound or thermal paste that comes with it. This paste helps transfer heat away from the module to its mounting location. Skipping this step will cause the new module to overheat and fail very quickly. Do not use dielectric grease; it is not the same thing.
Replacement Cost
The cost to replace the ignition control module on your B2300 will vary depending on who does the work. The part itself is the main expense.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part (e.g., Standard Ignition) | $260 - $280 |
| Shop Labor | $100 - $200 |
| Estimated Total (Shop) | $360 - $480 |
| Estimated Total (DIY) | $260 - $280 |
Frequently Asked Questions (FAQ)
Is the Mazda B2300 the same as a Ford Ranger?
Yes, for the 1994-1997 model years, the Mazda B2300 is a rebadged Ford Ranger. They share the same 2.3L engine, chassis, and most parts, including the ignition control module. Information and parts for a 2.3L Ford Ranger of the same year will apply to your Mazda.
How difficult is it to replace the ICM myself?
It is a manageable DIY job for someone with basic tools. The main challenge is the tight location behind the A/C compressor on some trucks. You will need a 5.5mm socket, which is not in every toolbox. You must clean the old thermal paste off the mounting surface and apply the new paste correctly.
Are there any recalls for this part?
There are no specific recalls for the ignition control module on the 1994-1997 Mazda B2300. However, there was a major recall for the ignition *switch* (the part where you put the key) on many Mazda models from this era due to a fire risk, but the B-Series trucks were not included in that specific recall campaign.
Could my problem be something else?
Yes. A no-spark or stalling condition can also be caused by a bad crankshaft position sensor (CKP), faulty coil packs, or wiring issues. However, the ICM is a very common point of failure for the symptoms described, especially heat-related stalling.
Helpful Videos
Technical Specifications
OEM Part Numbers: E8TZ12A297A ZZM018080A
The ignition control module for the 1994-1997 Mazda B2300 is a distributorless ignition type with two female connectors and 12 male blade terminals.
