Your 1994-1998 Buick Century Vehicle Speed Sensor: A Complete Guide
Solve erratic speedometer and shifting problems by understanding how to choose the right Vehicle Speed Sensor.
- A bad VSS will cause an erratic speedometer AND poor transmission shifting.
- This is a DIY-friendly repair; the sensor is on the outside of the transaxle.
- Symptoms can mimic a major transmission failure, but the VSS is a much cheaper first step in diagnosis.
- For reliability, choosing a reputable brand like Delphi or Standard Motor Products is recommended over budget options.
Is Your Buick Century's Speed Sensor Failing?
A bad vehicle speed sensor (VSS) on a 1994-1998 Buick Century causes very specific and noticeable problems. Because the sensor's signal is used by both the instrument cluster and the transmission, you will likely experience issues with both. The most common signs are a speedometer that bounces around, reads incorrectly, or stops working altogether. You may also notice your automatic transmission shifting harshly, at the wrong times, or hesitating between gears. Additionally, the cruise control will likely not engage. These symptoms will almost always be accompanied by an illuminated Check Engine Light on your dashboard.
Symptoms of a Bad Vehicle Speed Sensor
Don't Mistake a Bad VSS for a Failed Transmission
The symptoms of a bad VSS, especially hard or late shifting, can feel like the transmission is failing. Many owners have worried about expensive transmission repairs when the actual problem was a relatively inexpensive and easy-to-replace sensor. If you have an erratic speedometer along with shifting problems, the VSS is the most likely culprit.
Choosing the Right Aftermarket VSS Brand
When shopping for a new aftermarket VSS for your Buick Century, you have several choices. Not all brands offer the same level of quality and reliability, which is especially important for electronic sensors.
Tier 1: OE-Quality Brands

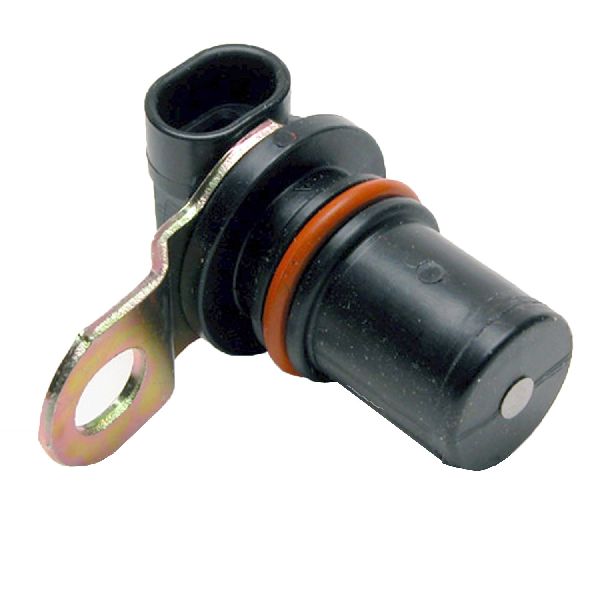

- Delphi: Delphi was an original equipment (OE) supplier for General Motors for many years. Choosing a Delphi sensor is often the closest you can get to the original part's quality and reliability without going to the dealer. They are a trusted choice for electronic components.
Tier 2: Reputable Aftermarket Brands
- Standard Motor Products (SMP) / Standard Ignition: SMP is a long-standing aftermarket manufacturer known for producing reliable parts that meet or exceed original specifications. They are a solid choice for this sensor.

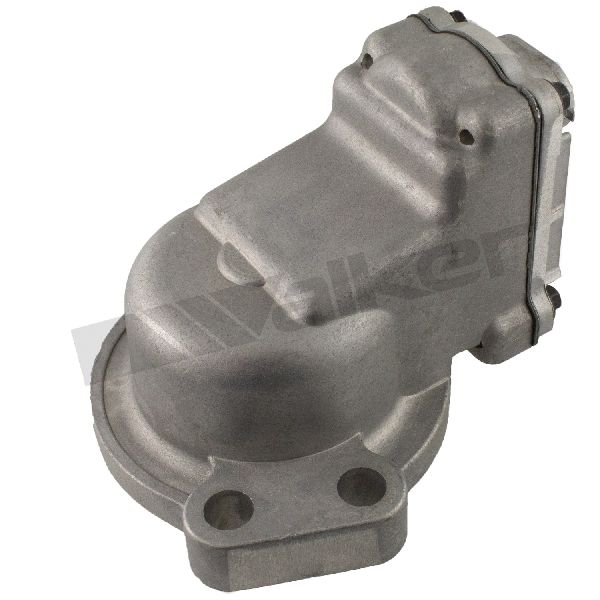

- Walker Products: Walker is another established brand that produces a wide range of sensors and engine management components. Their parts are designed to be a direct-fit replacement.
Tier 3: Budget-Friendly Options
- Dorman: Dorman is known for making a vast array of replacement parts. While their VSS may be the most affordable, their quality for electronic sensors can be inconsistent according to some mechanics and user reviews. It can be a viable option if budget is the primary concern, but may carry a higher risk of premature failure compared to Tier 1 or 2 brands.
- Global Parts / Store Brands: These often represent the most basic, budget-oriented options. While functional, their long-term durability and the precision of their signal may not match higher-tier brands.
Pro Tip: For a critical sensor like the VSS, spending a few extra dollars on a brand like Delphi or Standard Motor Products is a good investment in reliability and can prevent you from having to do the job a second time.
Typical Cost for a 1994-1998 Buick Century VSS
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $33.99 - $76.90 |
| Shop Labor | $50 - $100 |
| Total Professional Replacement | $84 - $177 |
Cost estimates are for the part and labor only and do not include taxes, shop fees, or diagnostic charges.
Frequently Asked Questions
Where is the vehicle speed sensor located on my 1994-1998 Buick Century?
The VSS is located on the outside of the automatic transaxle. You can typically find it near where the passenger-side axle shaft enters the transmission. It is held in by a single bolt and has a two-wire electrical connector plugged into it.
Can I replace this sensor myself?
Yes, this is a job that most DIY mechanics can handle. It requires basic tools, and you will need to safely lift and support the front of the vehicle to gain access. The sensor is externally mounted, so no special transmission knowledge is needed.
Will a new VSS fix my Check Engine Light?
If the Check Engine Light is on due to a VSS-related trouble code (like P0500), then yes, replacing the faulty sensor should solve the problem. After replacing the part, the code will need to be cleared with a scanner, or it will clear itself after a certain number of drive cycles.
My speedometer works, but my odometer screen is blank. Is that the VSS?
No, this is a different, and very common, problem on this generation of Buick Century. A blank or flickering odometer/PRNDL display is usually caused by failed resistors on the instrument cluster's circuit board. This requires repairing the cluster itself and is not related to the VSS.
What happens if I don't replace a bad speed sensor?
Continuing to drive with a bad VSS is not recommended. Your speedometer will be unreliable, which is a safety issue. More importantly, the constant incorrect shifting signals can cause premature wear and stress on your automatic transmission, potentially leading to more serious and expensive damage over time.
Technical Specifications
OEM Part Numbers: 10456568 25007318 8665903 12523306
The VSS for the 1994-1998 Buick Century is a 2-terminal magnetic sensor that mounts externally to the transaxle case. It generates a signal based on the rotation of a reluctor wheel inside the transmission.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
