Ford F59 Starter Motor (1994-1998): Replacement Guide
Having trouble starting your 1994-1998 Ford F59? This guide will help you diagnose and choose the right replacement starter.
- Heat soak is a common issue for 1994-1998 F59s, especially with V8 engines; consider a gear-reduction starter or heat shield as a solution.
- Before replacing the starter, check the fender-mounted starter relay, battery, and all cable connections, as they can cause similar symptoms and are cheaper to fix.
- Symptoms include a single click with no crank, slow cranking, grinding noises, or intermittent starting.
- For a commercial vehicle, a new starter from a quality brand like Motorcraft or ACDelco is a more reliable choice than a remanufactured unit.
Is Your F59 Starter Failing?
A starter motor problem can leave you stranded. For the 1994-1998 Ford F59, which often uses a large V8 engine like the 7.5L (460) or 7.3L diesel, the starter has to work hard. Symptoms of a failing starter are usually easy to spot if you know what to look and listen for.
Common Failure Symptoms
Here are the most common signs that your F59's starter is on its way out:
- Single Click, Then Nothing: You turn the key and hear a single, solid "click" from the engine bay, but the engine doesn't crank. This often points to a bad starter relay (solenoid) or a dead spot on the starter motor itself.
- Slow, Labored Cranking: The engine turns over much slower than usual, as if the battery is weak. If you know your battery is good, the starter is likely drawing too much power due to internal wear.
- Grinding or Whirring Noise: A loud grinding sound during or after cranking means the starter gear (Bendix) is not engaging or disengaging properly with the flywheel. This can cause serious damage if not addressed.
- No Sound at All: If you turn the key and get nothing—no click, no crank—the problem could be the starter, but you should also check the battery, ignition switch, and starter relay first.
- Intermittent Starting: The truck starts fine some days but refuses to on others. This is a classic sign of a starter with worn internal components or a developing electrical issue.
Known Issue: Heat Soak
A very common problem on Ford trucks from this era, especially those with the 460 V8 engine, is "heat soak." After the engine gets hot and you shut it off for a short time (like a delivery stop), the heat from the exhaust manifold rises and soaks into the starter. This increases the starter's internal electrical resistance, making it too weak to turn the hot engine over. You may have to wait 30 minutes or more for it to cool down before it will start again. Pouring water on the starter can be a temporary fix, but the real solution is a new, high-torque starter or installing a heat shield.
Choosing the Right Aftermarket Starter
For a workhorse like the F59, you don't want to be stranded by a cheap part. OEM (Original Equipment Manufacturer) parts from Motorcraft are always a safe bet, but quality aftermarket starters can offer better value or even improved performance.
Here's a breakdown of the available brands:
- Motorcraft: This is Ford's own brand. You can expect it to fit and function just like the original part. It's the benchmark for quality and reliability, though often the most expensive option.

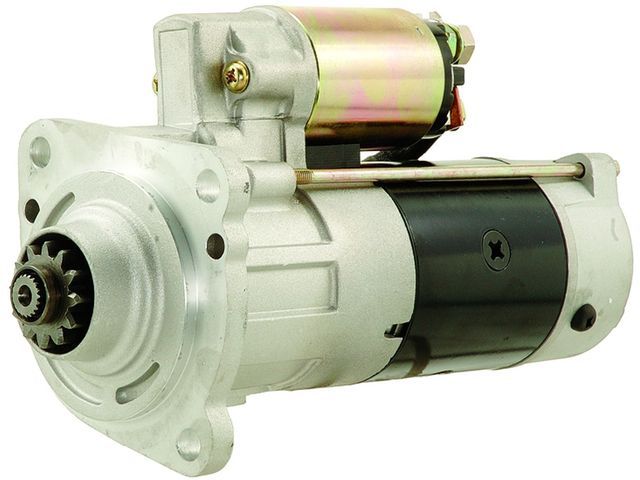

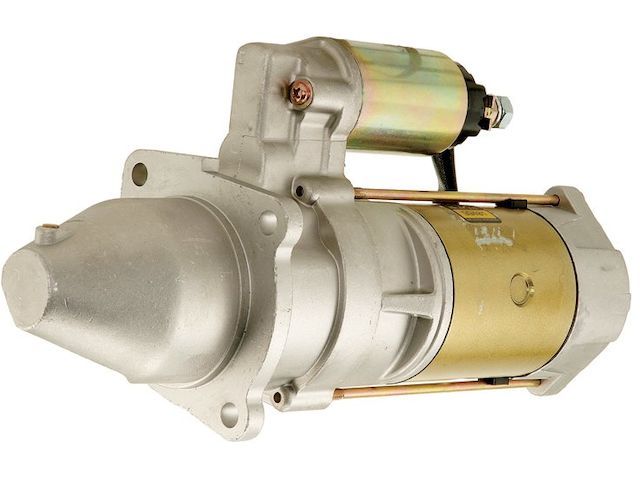

- ACDelco: While often associated with GM, ACDelco makes parts for many vehicles. They have a reputation for good quality, often meeting or exceeding OEM specs. Their "Gold" line is considered their professional-grade offering.

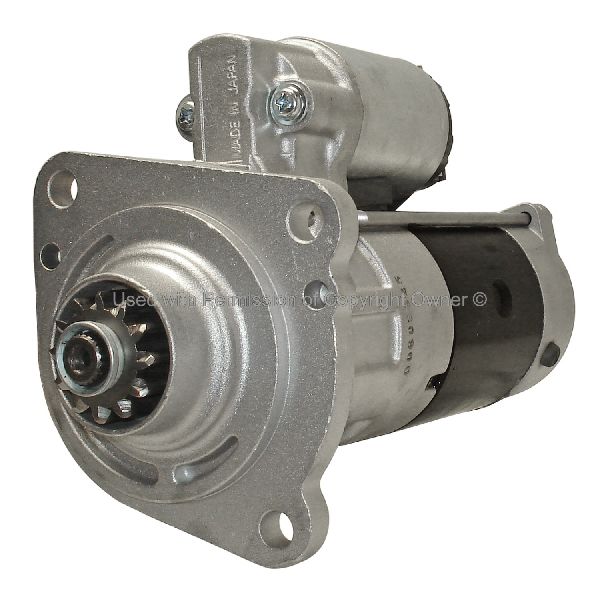

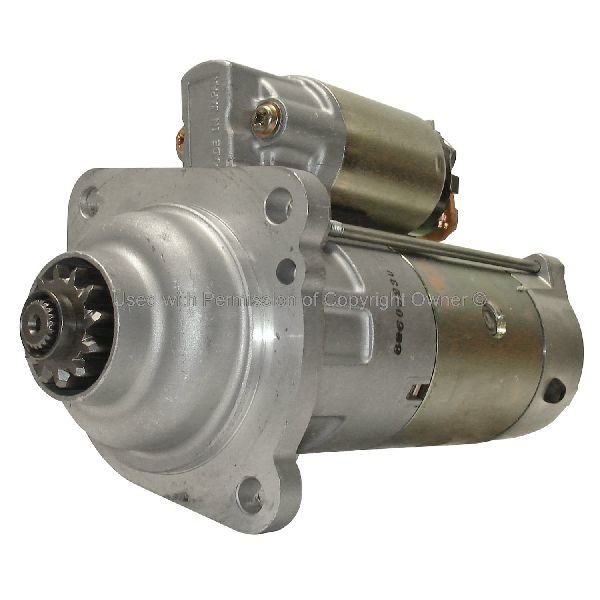

- MPA (Motor Parts of America): MPA is a large manufacturer that supplies many auto parts stores with new and remanufactured starters. Quality can be very good, but may vary depending on the specific product line.
Pro Tip: Consider a gear-reduction starter. Many newer-style starters for these Fords are smaller, lighter, and have more cranking torque than the original, large direct-drive units. This can be a great upgrade, especially if you've experienced heat soak issues.
Cost of Replacing a 1994-1998 Ford F59 Starter
The cost will depend on the brand you choose and whether you do the work yourself or hire a professional. Replacing the starter on an F59 is generally a straightforward job for a DIYer with some experience.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $120 - $314 |
| New OEM (Motorcraft) Starter | $250 - $450+ |
| Shop Labor | $150 - $300 |
| Total (Professional Installation) | $270 - $750+ |
Frequently Asked Questions (FAQ)
Is it the starter or the solenoid?
On these Fords, there is a large relay (often called a solenoid) mounted on the fender. If you hear a click from this relay when you turn the key, but the starter itself does nothing, the relay might be working but the starter is bad. If you get a single loud click from down at the starter itself, the starter is likely the problem. A no-click situation often points to the fender-mounted relay. It's a cheap and easy part to replace, so many mechanics start there.
Do I need any special tools to replace the starter?
No, standard hand tools like a ratchet, sockets (likely 10mm, 13mm, 15mm), and extensions are usually all that's needed. A swivel socket can be very helpful for reaching the top bolt, which can be in a tight spot. Always disconnect the negative battery terminal before you begin.
Are there any recalls on the starter for my F59?
Our search of the National Highway Traffic Safety Administration (NHTSA) database found no recalls specifically for the starter motor on the 1994-1998 Ford F59. There were recalls for other systems on different model years, but none that apply to the starter in this year range.
Should I buy a new or remanufactured starter?
For a commercial vehicle like an F59, a new starter is generally recommended for maximum reliability. Remanufactured starters can be a good value, but the quality can vary. A new starter from a reputable brand like Motorcraft or ACDelco will have all new components and often comes with a better warranty, providing peace of mind.
Technical Specifications
OEM Part Numbers: F7SU-11000-AB F7SZ-11002-AA SA-841
The 1994-1998 Ford F59 chassis used different starters depending on the engine (e.g., 7.5L V8 gas, 7.3L V8 diesel). The system typically features a fender-mounted starter relay separate from the starter motor itself. Many original starters were large, direct-drive units, while modern replacements are often smaller, more powerful gear-reduction designs.
