A Comprehensive Guide to 1994-1998 Mazda B2300 Suspension Ball Joints
Get the right parts and advice for replacing the ball joints on your 1994-1998 Mazda B2300 pickup.
- Your 1994-1998 Mazda B2300 is a rebadged Ford Ranger, so suspension parts are interchangeable.

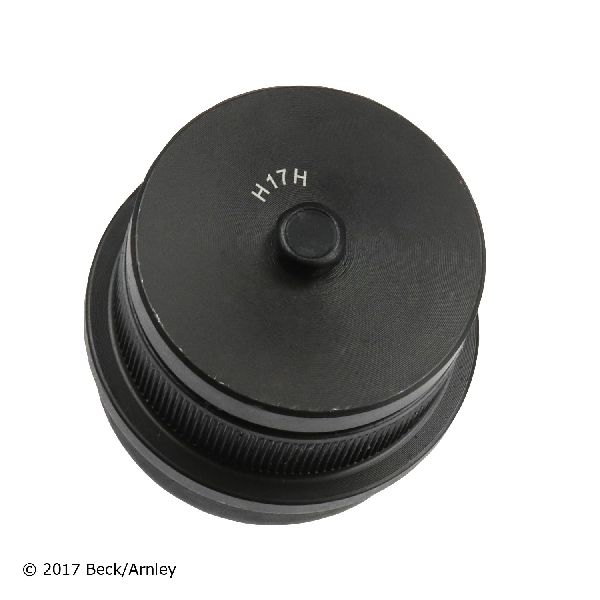

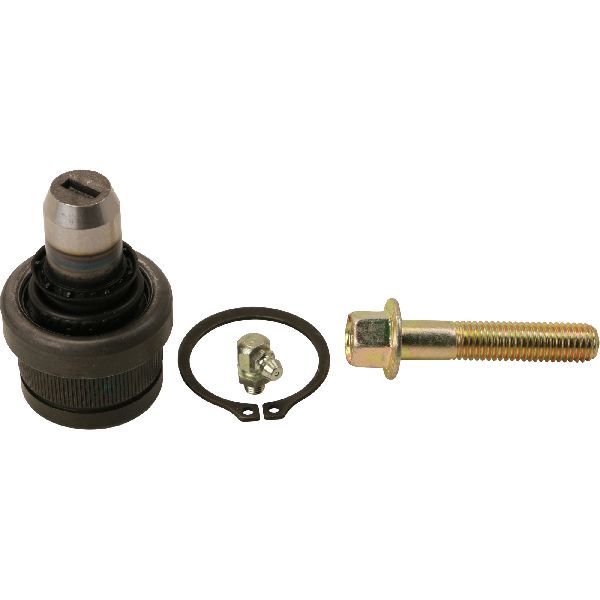

- The upper ball joint is part of the control arm and must be replaced as a complete assembly.

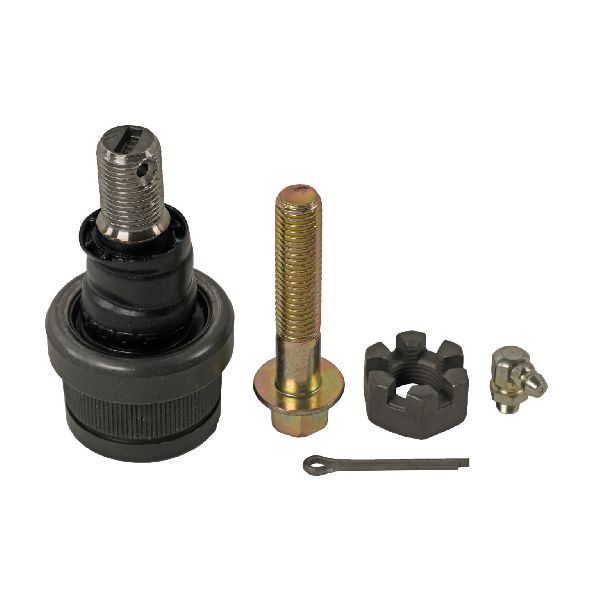

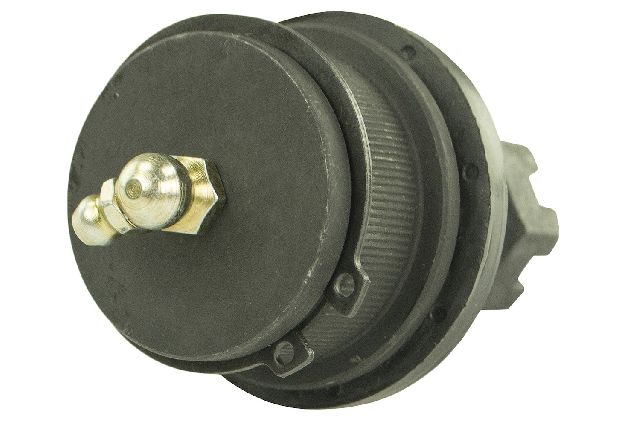

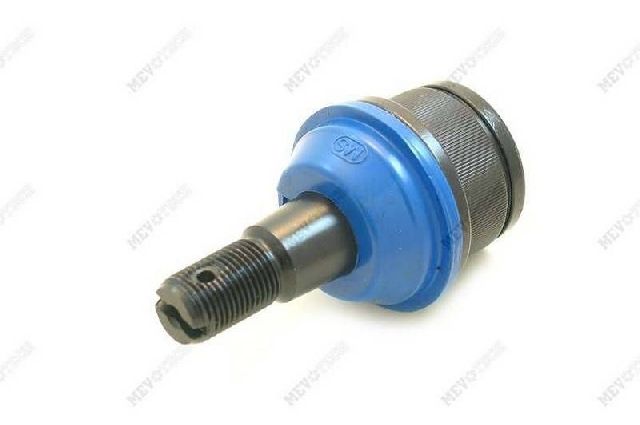

- The lower ball joint is a press-in style and requires a special ball joint press tool for replacement.
- A front-end wheel alignment is mandatory after replacing ball joints to prevent unsafe handling and tire damage.
Is Your Mazda B2300 Making Noise? It Could Be the Ball Joints
If you're hearing clunking or popping sounds from the front end of your truck, especially when going over bumps, you might have a worn-out ball joint. Other common signs include a vibrating steering wheel, sloppy or wandering steering, and uneven tire wear, particularly on the inside or outside edges. The best way to be sure is to have a mechanic inspect it, or you can check it yourself by safely lifting the front of the truck so the tire is off the ground and trying to wiggle the wheel from the top and bottom. Any significant play or movement is a clear sign of a bad ball joint.
A Critical Note for 1994-1998 B2300 Owners
Your Mazda B2300 is a mechanical twin to the Ford Ranger of the same years. This is important when it comes to ball joints. On the common 2WD coil spring models, the lower ball joint can be replaced by itself. However, the original upper ball joint is built into the upper control arm and is not sold separately. This means if your upper ball joint is bad, you must replace the entire upper control arm assembly. The good news is that most aftermarket control arms come with a new ball joint already installed, and many are designed so the ball joint can be replaced separately in the future.
Choosing the Right Aftermarket Ball Joint
With many brands available, it can be tough to choose. Not all parts are created equal. Here’s a breakdown of brands based on feedback from mechanics and owners to help you decide.
Brand Quality Tiers
- Premium & Heavy-Duty (Best Quality): Brands like TRW Parts, ACDelco (Professional/Gold series), and the Mevotech TTX (Tough Terrain eXtreme) line are often considered top-tier. These brands are frequently original equipment (OE) suppliers for major automakers and are designed for maximum durability. They are an excellent choice if you use your truck for heavy work or want the longest-lasting repair.
- Standard OE-Style (Good Quality): This category includes brands like Moog, Delphi, Beck Arnley, and Mevotech's standard lines. For years, Moog was the go-to standard, but many enthusiasts report that their quality has become inconsistent recently. Delphi and TRW are often viewed as reliable OE-quality choices. These parts offer a good balance of price and performance for daily driving.
- Economy (Budget-Friendly): Brands like Dorman, QuickSteer, and various store-exclusive labels fall into this tier. These parts meet the basic need to get your truck back on the road and are the most affordable. They are a practical option for a limited budget, but may not have the same lifespan as premium brands.
Pro Tip: Since you need to perform a wheel alignment after this job, it's a good idea to inspect other front-end parts like tie rod ends and sway bar links. Replacing them at the same time can save you money on labor and the cost of a second alignment down the road.
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket Lower Ball Joint | $21 - $45 per side |
| Aftermarket Upper Control Arm with Ball Joint | $40 - $80 per side |
| Shop Labor (per side) | $150 - $300 |
| Wheel Alignment | $80 - $150 |
Frequently Asked Questions (FAQ)
Do I really have to replace the whole upper control arm?
For the original factory setup on a 1994-1998 B2300, yes. The upper ball joint was not designed to be serviced separately. You must buy a complete upper control arm assembly, which includes the new ball joint.
Is a wheel alignment always necessary after replacing ball joints?
Yes, absolutely. Replacing ball joints or control arms will change your truck's suspension geometry. A professional alignment is required to ensure your vehicle drives straight, handles properly, and doesn't cause premature tire wear.
Can I do this job myself?
This is a moderately difficult job that is possible for a skilled DIY mechanic. You will need a special tool called a ball joint press to remove and install the lower ball joint. These can often be rented from auto parts stores. If you are not comfortable with heavy suspension work, it is best to leave this job to a professional mechanic.
Were there any recalls for the ball joints on my truck?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or technical service bulletins (TSBs) specifically for ball joint failures on the 1994-1998 Mazda B2300 or its Ford Ranger equivalent.
Technical Specifications
OEM Part Numbers: ZZL033051
The 2WD models feature a coil spring front suspension with an upper control arm/ball joint assembly and a separate, press-in lower ball joint. The 4WD models use a different suspension design. This guide focuses on the more common 2WD setup.
