Throttle Position Sensor Guide for the 1994-1998 Mazda B2300
Solving stalling, hesitation, and rough idle issues in your Mazda B2300 truck.
- Symptoms like stalling, hesitation, and poor shifting are classic signs of a failing TPS on your B2300.
- This is a very easy 15-minute DIY replacement that only requires basic hand tools.
- Before replacing, check the sensor's wiring connector for corrosion, as bad wiring can mimic a failed sensor.
- For best results, test your new sensor with a multimeter before fully installing it to confirm it works correctly.
Is Your B2300's Throttle Position Sensor Failing?
A bad Throttle Position Sensor (TPS) can make your truck frustrating to drive. Because the engine's computer relies on the TPS for critical information, a faulty signal can cause a wide range of problems. Since the 1994-1998 Mazda B2300 is a twin to the Ford Ranger, symptoms are identical between the two trucks. You may notice one or more of the following issues:
🎬 Watch: A visual guide to common bad TPS symptoms- Rough or High Idle: The engine might idle erratically, surge up and down, or idle much higher than normal.
- Engine Stalling: Your truck may stall unexpectedly, especially when you come to a stop or let your foot off the gas pedal.
- Hesitation and Lack of Power: When you press the accelerator, the engine may stumble, hesitate, or feel sluggish and underpowered.
- Poor Fuel Economy: Incorrect sensor readings can trick the computer into using more fuel than necessary, hurting your gas mileage.
- Jerking or Surging: The truck might buck or jerk during acceleration as the computer receives inconsistent signals.
- Automatic Transmission Problems: If you have an automatic, a bad TPS can cause harsh shifting, delayed shifts, or failure to downshift when you press the gas.
- Check Engine Light: A failing TPS will often trigger the Check Engine Light. Common trouble codes associated with TPS failure include P0120, P0121, P0122, P0123, and P0124.
Known Issues for This Vehicle
While no recalls or Technical Service Bulletins (TSBs) exist specifically for the 1994-1998 B2300's throttle position sensor, a TSB was issued for the similar 1998-2000 B2500 model regarding a poor electrical connection in the TPS wiring harness. Before replacing the sensor, it's wise to inspect the connector and wires for any corrosion or damage, as this can cause identical symptoms.
Choosing the Right Aftermarket TPS
The original sensor on your Mazda B2300 was made by Motorcraft, Ford's OEM parts division. When choosing a replacement, you have several options across different quality and price tiers.
| Brand Tier | Brands | General Assessment |
|---|---|---|
| Premium Aftermarket | Standard Ignition, Walker Products, NGK/NTK | These brands are generally well-regarded and aim to meet or exceed original equipment (OE) specifications. They are considered a reliable choice for durability. However, even with good brands, it's possible to get a faulty part, making pre-installation testing important. |
| Standard / Value | Global Parts, Motorad, Replacement | These brands offer a cost-effective solution. They are designed to function as a direct replacement, but may not have the same long-term durability or precise calibration as premium or OEM parts. They can be a good option for budget-conscious repairs. |
| OEM | Motorcraft | This is the original part your truck was built with. It guarantees perfect fit and function but comes at a higher price point than most aftermarket options. |
Pro Tip: Test Your New Sensor Before Installing
Regardless of the brand you choose, test the new sensor with a multimeter 🎬 See this easy technique for testing your sensor in seconds before bolting it on. Connect the sensor, turn the key to the 'ON' position (engine off), and measure the voltage on the signal wire. You should see a reading just under 1.0 volt with the throttle closed, and a smooth, steady increase to about 4.5 - 4.9 volts as you manually open the throttle all the way. Any jumps, dead spots, or incorrect voltage ranges mean the sensor is bad out of the box.
Frequently Asked Questions (FAQ)
Is it difficult to replace the B2300 throttle position sensor?
No, this is a very easy job suitable for any DIYer. It involves disconnecting the electrical connector and removing two screws. The entire process typically takes about 15 minutes.
Do I need to adjust or calibrate the new TPS?
The engine computer has a learning algorithm and can adapt to the new sensor over time. However, for best results right away, it's recommended to check the voltage with a multimeter to ensure it's within the correct range (just under 1.0V at idle). Some aftermarket sensors have slotted screw holes to allow for small rotational adjustments to dial in this voltage perfectly.
Can a bad TPS really cause my automatic transmission to shift weirdly?
Yes. The Powertrain Control Module (PCM) uses the TPS signal to help determine engine load and control transmission shift points. A bad signal can lead to delayed shifts, hard shifts, or prevent the torque converter from locking up correctly.
Should I buy a cheap TPS or a more expensive one?
While budget-friendly sensors are available, the TPS is a critical component for engine performance and drivability. Investing in a reputable aftermarket brand like Standard Ignition or Walker Products, or an OEM Motorcraft part, is often worth the extra cost for better reliability and peace of mind.
Helpful Videos
Technical Specifications

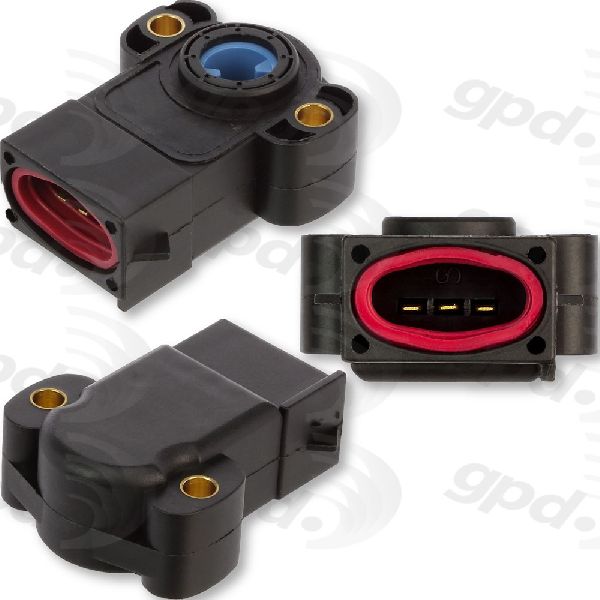

OEM Part Numbers: F4SZ-9B989-AA DY-967
3-pin electrical connector, mounts to throttle body. Operates on a 5-volt reference signal. Closed throttle voltage should be approximately 0.9V, wide-open throttle should be ~4.5V-4.9V.
