Chevrolet P30 Headlight Switch Guide: 1994-1999
A complete guide to diagnosing and replacing the headlight switch in your 1994-1999 Chevy P30 motorhome or workhorse chassis.
- Flickering lights are the most common symptom, pointing directly to a failing internal breaker in the switch.
- For reliability, choosing an ACDelco (OEM) or Standard Ignition switch is highly recommended for this vehicle.
- This is a simple DIY repair that most owners can complete in under an hour with basic tools.
- No recalls have been issued by GM or the NHTSA for the headlight switch on the 1994-1999 P30 chassis.
Is Your P30 Headlight Switch Failing?
A bad headlight switch on a 1994-1999 Chevy P30 can cause confusing and dangerous lighting problems. Because these switches contain an internal thermal circuit breaker, symptoms can be intermittent. The breaker is designed to trip (turn off) if it gets too hot from too much electrical current, and then turn back on once it cools. As the switch ages, this breaker can become weak and trip even under a normal load.
Common Symptoms:
- Flickering Lights: Headlights or dash lights that blink on and off are a classic sign. This is often the internal circuit breaker tripping and resetting.
- Lights Go Out While Driving: Your headlights might work for a few minutes and then suddenly shut off, only to come back on later. This is a serious safety issue.
- Dash Lights Don't Work: You may lose illumination for your speedometer and gauges, even if the headlights stay on. This is controlled by the same switch.
- Burning Smell: A faint burning plastic smell from the dashboard area can indicate the switch is overheating and shorting out internally. This is a fire risk and should be addressed immediately.
- Switch is Hot to the Touch: An overheating switch is a clear sign of an internal failure.
A Note for P30 Owners

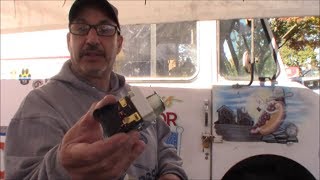

Many P30 chassis are used for motorhomes and commercial vans, which often have 🎬 Watch this step van headlight and dimmer switch replacement guide. extensive custom wiring for extra lights and accessories. These additions can put extra strain on the factory headlight switch. Furthermore, water leaks from the roof or windshield are common in these vehicles and can cause corrosion on electrical parts under the dash, leading to premature failure.
Choosing the Right Aftermarket Switch
For a part this critical to safety, quality matters. While many brands are available, they generally fall into a few tiers for your P30.
| Brand Tier | Brands | Quality & Cost Assessment |
|---|---|---|
| Premium (OEM-Equivalent) | ACDelco / GM Genuine Parts | This is the original equipment manufacturer. It offers the best guarantee of fit, function, and durability, closely matching the part your P30 was built with. While it's the most expensive option, it is highly recommended for reliability. |
| Mid-Grade (Quality Aftermarket) | Standard Ignition (Standard Motor Products) | A well-respected aftermarket brand that provides a good balance of quality and price. Many professional mechanics trust and use Standard parts, and they are a reliable alternative to OEM. |
| Mid-Grade (Limited Feedback) | Rostra Powertrain | Rostra is known more for other electronic accessories like cruise control systems. While they offer a headlight switch, there is very little owner feedback available for this specific part, making its quality harder to judge. |
| Economy (Value-Focused) | Replacement / Store Brands | These are the most affordable options but carry a higher risk of defects or early failure. Forum users have reported receiving faulty economy-brand switches right out of the box. This tier is best suited for a temporary fix or if budget is the absolute top priority. |
Installation is DIY-Friendly
Replacing the headlight switch on a P30 is a straightforward job that most owners can do themselves in under an hour with basic tools. The process involves disconnecting the battery, pressing a small spring-loaded button on the switch body to release the knob and shaft, unscrewing a retaining nut from the dash, and unplugging the wiring harness.
Frequently Asked Questions
Why do my headlights blink on and off by themselves?
This is most likely caused by a weak internal circuit breaker in the headlight switch. Over time, it can't handle the normal electrical load and will repeatedly trip and reset, causing the lights to flash. 🎬 See how to test and troubleshoot your GM headlight switch wiring. Replacing the switch is the correct fix.
Is an ACDelco switch really better than cheaper brands?
For electrical components like this, yes. ACDelco is the original GM parts supplier and their products are built to the original specifications for performance and lifespan. While a quality aftermarket brand like Standard is a good option, the cheapest parts have a higher reported failure rate.
Can a bad headlight switch drain my battery?
Yes. If the switch fails internally, it can fail to completely cut power to the lighting circuits even when in the 'off' position. This can cause a slow drain that leaves you with a dead battery.
Do I need any special tools for the replacement?
No special tools are required. You will need basic hand tools to access the dashboard panel if necessary, and possibly a pair of pliers or a specific spanner wrench to loosen the retaining nut that holds the switch to the dash. The most important step is finding the small release button 🎬 Watch a walkthrough on how to replace this style of switch. on the switch body to remove the knob.

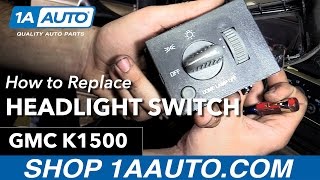

Helpful Videos
Technical Specifications
OEM Part Numbers: 19245090 01995406 D1590D
Dash-mounted pull/turn knob switch with a 6-terminal electrical connector.
