Ford F-350 (1994-1999) Engine Timing Set: A Complete Guide
Keep your gas-powered F-350 running strong by understanding its timing set needs.
- This guide is for gas engines (5.8L, 7.5L) only; the 7.3L Power Stroke diesel is gear-driven and does not use a timing chain set.
- Symptoms of failure include engine rattle, poor performance, and difficulty setting timing.
- Upgrading to a double-roller timing set from a brand like Melling or Cloyes is a common and recommended improvement.
- It is highly recommended to replace the water pump and timing cover gaskets during the job.
Is Your F-350's Timing Chain Failing?
For owners of the gas-powered 1994-1999 Ford F-350, the timing chain is a durable but wearable part. Unlike timing belts that need regular replacement, a timing chain is designed to last a very long time, often well over 100,000 miles. However, they can stretch with age and high mileage, which affects engine timing and performance. If you hear a rattling noise from the front of the engine, experience a sudden drop in performance, or have trouble with the engine running rough, a worn timing chain could be the culprit.
🎬 Watch: Learn the common signs of a failing timing chain.Diesel vs. Gas Engines: A Critical Difference
It is crucial to identify your engine before shopping for parts. This guide applies to the 5.8L (351W) V8 and 7.5L (460) V8 gasoline engines. The 7.3L Power Stroke diesel engine uses a set of gears for timing and does not have a timing chain set. Ordering a timing set for a 7.3L Power Stroke is a common and costly mistake.
Choosing the Right Aftermarket Timing Set

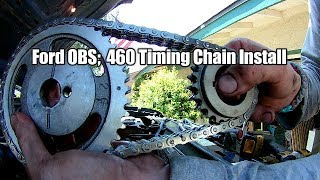

For a vehicle of this age, aftermarket timing sets offer excellent value and quality. The original timing gears on some of these engines, particularly the 460, may have had nylon-coated teeth that wear out. 🎬 See a step-by-step timing chain install on a Ford 460. Many aftermarket sets provide an upgrade with all-metal gears. Here's a breakdown of available brands:
- Performance/Heavy-Duty (Ford Performance, Edelbrock, Melling Select Performance): These brands offer high-strength components like double-roller chains and billet steel gears. They are ideal for heavy towing, high-performance builds, or for owners who want maximum durability. Many of these kits offer adjustability to advance or retard camshaft timing for performance tuning.
- Standard Replacement (Cloyes, Melling): Cloyes and Melling are highly respected names in the aftermarket and are often considered OEM-quality equivalents. They provide reliable, durable sets for daily driving and standard use. For a stock engine rebuild or a simple replacement, these brands offer a great balance of cost and quality.
- Budget-Friendly Options: While other brands are available at lower price points, timing components are critical to your engine's health. Sticking with well-known manufacturers like Melling or Cloyes is a safer investment to avoid premature failure and having to do the job twice.
Pro Tip: Upgrade to a Double Roller
Many owners of the 7.5L (460) and 5.8L (351W) engines upgrade from the stock single chain to a more robust double-roller timing set when it's time for replacement. These sets offer increased strength and timing accuracy, which is a worthwhile upgrade for these workhorse engines.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $41 - $141 |
| Shop Labor | $400 - $1,000 |
| Total Professional Replacement | $441 - $1,141 |
Frequently Asked Questions (FAQ)
Do I need special tools to replace my F-350's timing set?
Yes, some special tools are required. You will likely need a harmonic balancer puller to remove the crankshaft pulley and a tool kit to remove and install the timing cover and seal. It's also a good time to have new gaskets for the timing cover and water pump on hand.
Are there any recalls for the 1994-1999 F-350 timing chain?
No, searches of NHTSA data and other sources did not find any specific recalls for the timing chain or timing set on 1994-1999 Ford F-350 models. Most recalls for this vehicle generation pertain to other issues like speed control switches or fuel systems.
Should I replace the water pump at the same time?
Yes, it is highly recommended. The timing chain replacement procedure requires the removal of the water pump on engines like the 5.8L and 7.5L. Since you have already done most of the labor, replacing the water pump at the same time is a smart and cost-effective preventative measure.

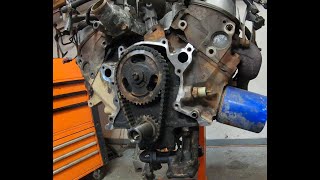

🎬 Watch: How to replace your timing chain and water pump together.What is the difference between a standard and a "pre-emission" or "straight-up" timing set?
Some factory timing sets from the emissions era, particularly on the 460 V8, were designed with slightly retarded camshaft timing to help with emissions control. An aftermarket "straight-up" or "pre-emission" set installs the cam timing at zero degrees (not advanced or retarded), which can restore lost torque and horsepower.
Helpful Videos
Technical Specifications
This article applies to the timing chain and gear sets for the Ford 5.8L (351W) and 7.5L (460) V8 gasoline engines. It does not apply to the 7.3L Power Stroke diesel engine. Aftermarket options include standard replacement single-row chains and upgraded double-roller chains.
