Mazda MPV Catalytic Converter Guide (1994-1999)
Everything you need to know before replacing the catalytic converter on your first-generation Mazda MPV.
- A failing converter will usually trigger a P0420 Check Engine Light code and may cause power loss or a rotten egg smell.
- For this vehicle, a direct-fit aftermarket converter is the most practical and affordable option; brands like Walker and MagnaFlow are reliable choices.
- Before replacing the converter, ensure your engine isn't misfiring or burning oil, as these issues can destroy a new part.
- Replacement can be a DIY job, but expect heavily rusted bolts that may require heat and force to remove.
Is Your MPV's Catalytic Converter Failing?
For owners of the 1994-1999 Mazda MPV, the catalytic converter is a part that will eventually wear out. When it fails, you'll notice several signs. The most common is a Check Engine Light with the code P0420, which means the converter's efficiency is below the required level. You might also experience a noticeable drop in engine power, especially when accelerating, because a clogged converter can't let exhaust flow freely. Other symptoms include a rotten egg or sulfur smell from the exhaust, a rattling noise from under the vehicle if the internal core has broken apart, and ultimately, failing a state emissions test.
Don't Ignore the Signs
While you can sometimes drive with a failing converter, a completely clogged one can cause serious engine damage due to excessive backpressure. This can lead to overheating, poor performance, and costly engine repairs. It's best to address the issue as soon as symptoms appear.

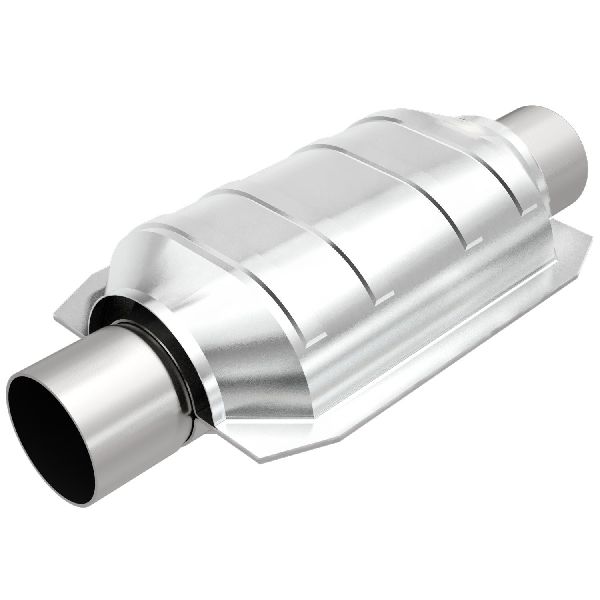

Choosing the Right Aftermarket Converter
When replacing the converter on an older vehicle like the first-gen MPV, an aftermarket part is often the most cost-effective choice. OEM parts can be very expensive and hard to find. However, not all aftermarket converters are created equal. They generally fall into a few tiers:
- Budget/Standard (AP Exhaust, Eastern Catalytic): These are the most affordable options and are designed to be a direct replacement for the original part. They will get your MPV back on the road and pass emissions, but some user reviews suggest their longevity can be shorter than more expensive brands, and fitment can sometimes require minor adjustments.
- Mid-Grade (Walker Exhaust): Walker is a well-known brand that offers a good balance of quality, price, and durability. They are often considered a reliable standard replacement that meets or exceeds OEM specifications for fit and function, making them a popular choice for daily drivers.
- Performance/Premium (MagnaFlow): MagnaFlow converters are often made with higher-quality stainless steel and may feature a high-flow design. While your MPV isn't a race car, a high-flow converter can slightly improve exhaust flow. These are a good choice if you want a premium, long-lasting part.
Pro Tip: Always choose a "Direct-Fit" converter for your MPV. Universal converters are cheaper but require cutting and welding, which increases labor costs and complexity. A direct-fit model is designed to bolt right into place, just like the original.
How Much Will It Cost?
The cost to replace the catalytic converter on your 1994-1999 MPV can vary significantly based on the part you choose and labor rates in your area. Keep in mind that your MPV may have more than one converter (front and rear), so be sure to diagnose which one has failed.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Converter (Part Only) | $84 - $1,053 |
| Shop Labor | $261 - $383 |
| Total Estimated Cost | $345 - $1,436 |
Frequently Asked Questions
Why did my catalytic converter fail?
Converters usually fail for a reason. The most common cause is simply age and high mileage. However, other engine problems can cause a converter to fail prematurely. These include burning oil, coolant leaks (like a bad head gasket), or frequent engine misfires that send unburned fuel into the exhaust, which can overheat and melt the converter's core. Always make sure your engine is in good running order before installing a new converter.

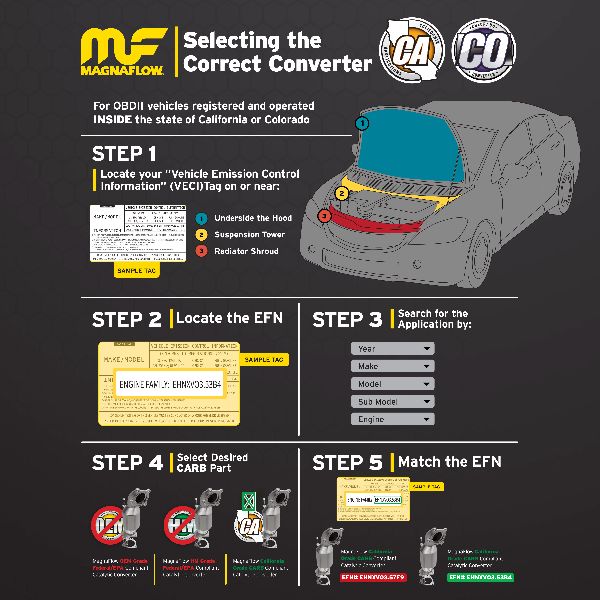

Do I need a CARB-compliant converter?
It depends on where you live. States like California, New York, Colorado, and Maine have stricter emissions laws and require parts certified by the California Air Resources Board (CARB). These converters are more expensive because they contain more precious metals. If you don't live in one of these states, a Federal EPA-compliant converter is all you need. Always check your local regulations before buying.
Can I replace the converter myself?
If you have the right tools and experience, yes. The job involves unbolting the old converter and bolting in the new one. However, on a vehicle of this age, the bolts will likely be very rusted and difficult to remove. You may need penetrating oil, a torch, and a breaker bar. If bolts snap, you'll need to drill them out. For many owners, having a professional shop do the work is the easier and safer option.
Are there any recalls for the 1994-1999 MPV converter?
No, there are no specific recalls for the catalytic converter on the 1994-1999 Mazda MPV. There were several recalls for Takata airbags on some model years within this range, but none related to the emissions system. Any replacement for a failed converter on these vehicles would be the owner's responsibility.
Technical Specifications
The 1994-1999 Mazda MPV uses a 3.0L V6 engine. The exhaust system may consist of multiple catalytic converters (front/rear). Replacements are available as Federal (EPA) or CARB compliant. Direct-fit converters are recommended over universal ones to avoid welding.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
