Choosing the Right Starter for Your 1994-2000 Chevrolet C3500
Don't get stranded by a bad starter—understand your replacement options for your gas or diesel C3500 truck.
- For 7.4L (454) engines, combat heat soak by upgrading to a high-torque, gear-reduction starter or using a heat shield.
- For 6.5L Diesel engines, always use the correct high-torque starter and ensure the rear support bracket is installed to prevent engine block damage.
- A modern Permanent Magnet Gear Reduction (PMGR) starter is a worthwhile upgrade over the original direct-drive style for all engines, offering more power in a smaller package.
- Symptoms like a single click, slow cranking (especially when hot), or grinding are clear signs that your starter needs to be inspected and likely replaced.
Is Your C3500 Starter Failing?
A failing starter on a GMT400-era truck usually gives you some warning. If your truck won't start, listen carefully for these signs before assuming it's a dead battery. 🎬 Watch: Hear examples of clicking, grinding, and whirring starter sounds. A bad starter can leave you stranded without warning.
- Single Loud Click: You turn the key and hear one loud 'CLACK' from the engine area, but the engine doesn't crank. This often means the starter's solenoid is working, but the motor itself has failed.
- Rapid Clicking: A fast 'click-click-click' sound usually means the battery doesn't have enough power to turn the engine over. Always test your battery first, but if the battery is good, this can still point to a starter with a bad electrical connection.
- Slow, Labored Cranking: If the engine turns over very slowly, like the battery is weak, it could be a worn-out starter motor drawing too much power. This is a very common symptom on these trucks, especially when the engine is hot.
- Grinding Noise: A harsh grinding sound when you try to start the engine can mean the starter gear isn't meshing correctly with the flywheel. This can also happen if the starter fails to disengage after the engine starts. This is a serious issue that can damage your flywheel, leading to a much more expensive repair.
- Whirring or Spinning Noise: If you hear the starter motor spin but the engine doesn't turn over, the starter's drive gear (Bendix) has likely failed.
Vehicle-Specific Known Issues
The 1994-2000 C3500 is a tough truck, but it has a few well-known quirks related to its starting system, depending on the engine.

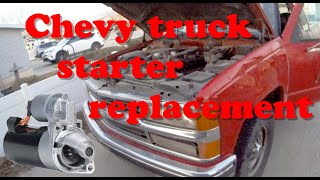

- Heat Soak (7.4L / 454 V8): Big-block engines produce a lot of heat. The starter is mounted close to the exhaust, and after you shut off a hot engine, that heat radiates into the starter. This 'heat soak' dramatically increases the starter's internal electrical resistance, making it struggle or fail to crank a hot engine. You might start it fine in the morning, but after a drive, it will refuse to restart until it cools down. 🎬 See this walkthrough for replacing a 7.4L V8 starter.
- 6.5L Diesel Demands: The high compression of the 6.5L Turbo Diesel is extremely hard on starters. It requires a powerful starter that can spin the engine fast enough to start. A weak starter will result in a no-start. Crucially, these starters use a rear support bracket. Never run without this bracket. Without it, the torque can break the starter bolts or, in the worst case, crack the engine block. 🎬 Watch: Why the 6.5L diesel starter bracket is so critical.
Choosing the Right Aftermarket Starter
For a vehicle of this age, a new aftermarket starter is often the best value. The original starters were large, heavy, direct-drive units. Most modern replacements are Permanent Magnet Gear Reduction (PMGR) starters. These are smaller, lighter, and use internal gears to multiply torque, making them more efficient and better at handling issues like heat soak.
Brand Quality Tiers
Not all brands are created equal. Here’s how the available brands generally stack up for your C3500:
- Premium / High-Performance (Powermaster, Proform): These brands specialize in high-torque, gear-reduction starters. They are an excellent upgrade for any C3500, but especially for trucks with 7.4L or 6.5L diesel engines. They provide faster cranking speeds and are the best solution for heat soak problems. While they are the most expensive option, they are often worth the investment for reliability and performance.
- OEM-Equivalent (ACDelco): As GM's parts division, ACDelco offers new and remanufactured starters that are designed to be a direct replacement for the original part. They are a safe, reliable choice if you want a stock-style replacement without performance upgrades. The quality is generally consistent and dependable.
- Standard Aftermarket (MPA, Store Brands): Brands like MPA and various auto parts store brands (like Duralast) offer remanufactured starters at a budget-friendly price. The quality can be inconsistent, with some owners experiencing early failures. However, they often come with a lifetime warranty, which can be a major benefit if you don't mind the possibility of having to do the replacement more than once.
Pro Tip: Upgrade to a Gear Reduction Starter
Unless you are doing a numbers-matching restoration, there is little reason to stick with an old-style direct-drive starter. A modern PMGR starter from a quality brand like Powermaster or even ACDelco's gear reduction line will provide more cranking power, weigh less, be easier to install, and be more resistant to heat soak.
What Will a New Starter Cost?
The cost depends on the brand, type, and where you buy it. Labor at a repair shop is typically around one hour.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard) | $85 - $180 |
| New Aftermarket (High-Torque) | $190 - $435 |
| Remanufactured Aftermarket | $90 - $160 |
| Shop Labor | $120 - $200 |
Frequently Asked Questions
Can I replace the starter on my C3500 myself?
Yes, this is a very DIY-friendly job for someone with basic mechanical skills. The starter is held on by two bolts and is usually easy to access on the passenger side of the engine. You will need a good socket set and wrenches. The job typically takes about an hour.
What is starter 'heat soak' and how do I fix it?
Heat soak happens when the starter gets too hot from the nearby exhaust manifold, increasing its electrical resistance and preventing it from working. It's most common on 7.4L big-block engines. The best fixes are to install a starter heat shield wrap or, more permanently, upgrade to a high-torque gear reduction starter which is less affected by heat.
Is the starter for the 6.5L Diesel different from the gas V8s?
Yes. While they look similar, starters for the 6.5L diesel are designed for the higher compression of a diesel engine and are generally more powerful. It is critical to buy a starter specified for the diesel engine. Also, you must use the rear support bracket to avoid severe engine damage.
Should I buy a new or remanufactured starter?
New aftermarket starters, especially from performance brands, are often built with 100% new components and offer the best performance and longevity. Remanufactured starters from brands like ACDelco or MPA are rebuilt from used cores and are a good budget option. Quality can vary more with remanufactured parts, but they are an economical way to get your truck running again.

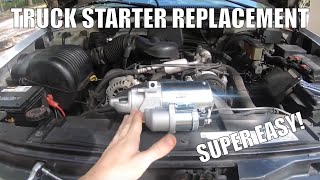

Helpful Videos
Technical Specifications
Starters for the 1994-2000 C3500 vary by engine (5.7L, 7.4L, 6.5L Diesel). Key types include original-style Direct Drive and upgraded Permanent Magnet Gear Reduction (PMGR) units. PMGR starters are recommended for their higher torque and efficiency. Starters for the 6.5L Diesel are not interchangeable with gas models and require a support bracket. Mounting patterns are typically a staggered two-bolt design.
