Engine Valve Cover Gasket Replacement for 1994-2000 Ford E-350 Econoline
Leaking valve covers are a common issue on these vans; choosing the right gasket set is key to a lasting repair.
- Identify your engine (5.8L, 7.5L, 5.4L, 6.8L, or 7.3L) before ordering, as parts are not interchangeable.
- Expect high labor costs ($330-$640+) due to poor engine access in the van's 'doghouse'.
- Choose a quality aftermarket brand like Fel-Pro or Victor Reinz for a reliable seal.
- Always replace the bolt grommets with the gaskets to prevent future leaks.
Is Your E-350 Leaking Oil? It Could Be the Valve Cover Gaskets
A failing valve cover gasket is one of the most common oil leaks on 1994-2000 Ford E-350 vans. Due to the engine's placement in a tight "doghouse," heat builds up and can cause the original gaskets to become hard, brittle, and crack over time. This allows oil to seep out, creating both a mess and a potential fire hazard.
🎬 Watch this guide on common signs of a failing gasket.Engine-Specific Considerations
It is critical to identify your E-350's specific engine before ordering parts, as the gaskets are very different.
- 1994-1996 Models: These vans could have the 5.8L Windsor V8, the 7.5L (460) V8, or the 7.3L Power Stroke diesel V8.
- 1997-2000 Models: Ford introduced the modular engine family, so these vans typically have the 5.4L Triton V8 or the 6.8L Triton V10. The 7.3L Power Stroke diesel was also available.
Choosing the Right Aftermarket Gasket Set
For a standard replacement on gas engines, aftermarket gaskets often provide excellent quality, sometimes even improving on the original design. Brands like Fel-Pro and Victor Reinz are highly regarded by mechanics.
Brand Tiers for Your Ford E-350
- Premium Tier (Recommended): Fel-Pro and Victor Reinz are top choices. Fel-Pro is well-known for its PermaDryPlus line, which often features a rigid carrier, molded rubber seals, and torque limiters to prevent over-tightening. Victor Reinz is another OEM-quality supplier trusted in the industry. For this repair, either brand is an excellent choice.
- Standard Tier: Brands like Apex and GBR Fuel Injection offer more budget-friendly options. While they are designed to meet OEM specifications, some users report occasional fitment issues compared to premium brands. They can be a viable choice, but careful inspection before installation is key.
- Specialty Brands: Edelbrock and Trans-dapt typically make gaskets for their own line of aftermarket performance valve covers. These are usually not direct replacements for stock Ford valve covers and should only be purchased if you are using their corresponding custom parts.
Estimated Replacement Costs
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $17 - $162 |
| Shop Labor (Gas Engines) | $330 - $640 |
| Shop Labor (7.3L Diesel) | $500 - $900+ |
| Total Professional Repair (Gas) | $350 - $800+ |
Labor costs are significantly higher for these vans due to extremely limited access to the engine, which requires removing the engine cover (doghouse), seats, and other interior components.
Frequently Asked Questions (FAQ)
Do I need to use RTV sealant with the new gaskets?
Typically, you only need to apply a small dab of RTV silicone sealant at the corners where the timing cover meets the cylinder head and at any other sharp corners or joints. The main body of the gasket is designed to be installed dry. Always follow the specific instructions included with your gasket set.
Is this a good DIY job for a beginner?
Due to the poor access in an E-350 van, this job is much harder than on a truck or car. It requires removing interior parts and working in very tight spaces. 🎬 See how difficult access is during an E-350 engine teardown. While mechanically straightforward, it is physically difficult and time-consuming. It is considered an intermediate to advanced DIY task.
Why is there oil in my spark plug wells?
This is a classic symptom of a failed valve cover gasket set on the Triton engines (5.4L and 6.8L). The gasket set includes seals for the spark plug tubes. When these fail, oil leaks from the top of the engine down into the tubes, which can cause the spark plug to misfire.
Are there any recalls for this issue?
No, there are no specific recalls from Ford or the NHTSA for leaking valve cover gaskets on the 1994-2000 E-350. Failures are generally due to the age and heat exposure of the parts.
Helpful Videos
![Ford Econoline E350 5.4l 2V Engine Top-End Teardown [READ DESCRIPTION]](https://img.youtube.com/vi/OUKgMhWZoHA/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: DC2Z-6584-B E5TZ6584A E5TZ6584D VS50664R VS50372

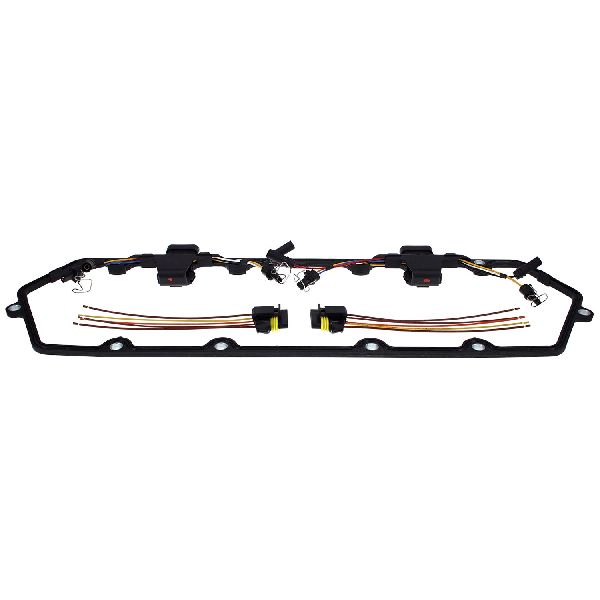

Gasket material is typically molded rubber, cork-rubber composite, or silicone. Kits for modular engines (5.4L, 6.8L) include integrated spark plug tube seals. Kits for 7.3L Power Stroke diesel include the under-valve-cover injector and glow plug harness.
