Ford Taurus Engine Valve Cover Gasket Set: A Comprehensive Guide for 1994-2000
Stop the burning oil smell and messy leaks by choosing the right valve cover gasket set for your Taurus.
- You MUST confirm if you have the 3.0L Vulcan or 3.0L Duratec engine before ordering, as the parts are different.
- On Duratec engines, the rear gasket is a difficult job requiring removal of the intake manifold; plan for extra time and cost.
- Always replace the bolt grommets and spark plug tube seals (if applicable) included in the kit; they are common leak points.
- Properly cleaning the mating surfaces on the cylinder head and valve cover is critical for a leak-free repair.
Is Your 1994-2000 Ford Taurus Leaking Oil?
If you're smelling burning oil when you stop at a light or seeing oily stains on your driveway, a bad valve cover gasket is a likely culprit. On the 1994-2000 Ford Taurus, these gaskets become hard and brittle over time due to engine heat and age. This causes them to crack and lose their seal, allowing oil to seep out. This is a common issue for vehicles of this age and is considered a normal wear-and-tear repair.
Symptoms of a Failing Valve Cover Gasket
- Burning Oil Smell: This is the most common sign. Oil leaks from the valve cover and drips onto the hot exhaust manifold, causing a distinct burning smell that you may notice in the cabin or when you get out of the car.
- Visible Oil Leaks: You may see wet, dark areas of oil and grime around the top of the engine, where the valve covers meet the cylinder heads.
- Low Engine Oil: A persistent leak will cause your oil level to drop over time. You might find yourself needing to top off the oil between changes.
- Rough Engine or Misfires: On DOHC 'Duratec' engines, the spark plug tubes are sealed by gaskets in the valve cover. If these fail, oil can fill the spark plug wells, causing the spark plugs to fail and leading to a misfiring or rough-running engine.
Choosing the Right Aftermarket Gasket Set
The most important step is to correctly identify your engine. The replacement job and the parts are very different between the two main V6 engines.
- 3.0L OHV 'Vulcan' Engine: Has a single camshaft in the engine block. The valve covers are relatively easy to access. The replacement is straightforward for a DIY mechanic.
- 3.0L DOHC 'Duratec' Engine: Has dual overhead camshafts. The front valve cover is accessible, but the rear one is hidden under the upper intake manifold, which must be removed to replace the gasket. This makes the job significantly more difficult and time-consuming.
Aftermarket Brand Quality
For a vehicle like the 1994-2000 Taurus, a quality aftermarket gasket is a cost-effective choice. The key is proper installation. Here's an honest look at the available brands:
- Victor Reinz: Generally considered a high-quality aftermarket brand. Mechanics and DIYers in forums often place it in a similar tier as other reputable brands like Fel-Pro and Mahle. It's a reliable choice that should provide a long-lasting seal when installed correctly.
- Apex: This is typically a budget-oriented brand. While some users report success, others have experienced premature leaks. If you are on a tight budget, it can work, but for a difficult job like the rear gasket on a Duratec, using a more proven brand like Victor Reinz might save you from doing the job twice.
Pro Tip: Your gasket set should come with new bolt grommets (seals for the bolts). These are a common leak point and should always be replaced with the gasket. Do not reuse the old ones.
Typical Replacement Costs
Costs can vary based on your engine type and local labor rates. The Duratec engine will always be more expensive for a shop to service due to the extra labor involved in removing the intake manifold.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $25 - $137 |
| Shop Labor (Vulcan Engine) | $140 - $220 |
| Shop Labor (Duratec Engine) | $250 - $450+ |
Frequently Asked Questions
Do I need to use RTV sealant with the new gasket?
Yes, but only in specific spots. You should apply a small dab of high-temp RTV sealant at the sharp corners where the engine block, timing cover, and cylinder head meet. Do not apply sealant around the entire gasket, as this can cause it to slip out of place and leak. The new rubber gasket is designed to do the sealing on its own.
What are the extra round seals in my DOHC gasket kit for?
Those are the spark plug tube seals. They are critical. They prevent oil from leaking into the spark plug tubes. Always replace these when you replace the valve cover gaskets on a Duratec engine.
Can I reuse my old valve cover bolts?
Yes, the bolts can be reused. However, you must replace the rubber grommets that seal the bolts. These grommets are included in most gasket sets and are a primary source of leaks as they age.
Were there any recalls for this issue?
No, there were no recalls or specific Technical Service Bulletins (TSBs) from Ford for valve cover gasket leaks on the 1994-2000 Taurus. The issue is caused by the natural aging of the gasket material.
Technical Specifications

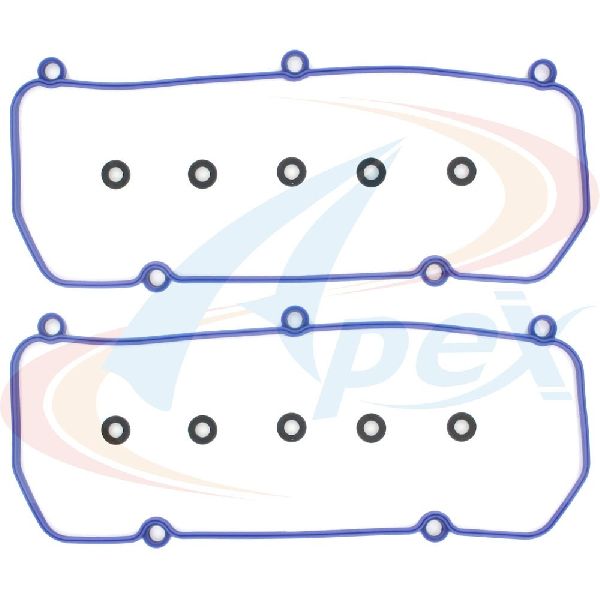

Kit typically includes valve cover gasket(s), spark plug tube seals (for DOHC), and bolt grommets. Material is typically molded rubber or silicone.
