A Guide to Replacing Fuel Injectors on the 1994-2000 GMC K2500
Choosing the right fuel injector is critical for the performance and reliability of your GMT400 truck's engine.
- First, confirm your engine (Gas or Diesel) and year to identify your specific fuel system (TBI, Spider, or Diesel).
- For 1996-2000 gas engines, always choose the updated MPFI-style spider injector assembly for a reliable, long-term fix.
- For the 6.5L diesel, use new or professionally remanufactured injectors from a top-tier brand like Bosch, ACDelco, or Delphi for best results.
- Avoid the cheapest unbranded parts, as fuel leaks inside the engine can lead to catastrophic failure.
Gas or Diesel? TBI or Spider? Know Your System First
CRITICAL: The 1994-2000 GMC K2500 used three completely different fuel injection systems. You must identify which system your truck has before buying parts.
- 1994-1995 Gas Engines (5.0L, 5.7L, 7.4L): These use a Throttle Body Injection (TBI) system. It looks like a carburetor but has two fuel injectors mounted in the center.
- 1996-2000 Gas Engines (5.0L, 5.7L, 7.4L): These use the Vortec engine with a Central Port Fuel Injection (CPFI or "Spider") system located under the upper intake manifold. This is the most common system to fail.
- 1994-2000 Diesel Engines (6.5L): These use eight individual mechanical diesel injectors. They are not interchangeable with gas engine parts.
Symptoms of a Failing Fuel Injector
How your truck acts when an injector fails depends heavily on your engine type.
For 1996-2000 Gas "Spider" Injectors:
- Hard Starting When Warm: This is a classic sign. An injector leaks fuel into a cylinder after the engine is shut off, causing a flooded condition on restart.
- Rough Idle & Misfires: The engine may shake, stumble, or run unevenly. This can trigger a Check Engine Light with misfire codes (P0300-P0308).
- Smell of Unburnt Fuel: A leaking injector can create a strong gasoline smell from the exhaust or engine bay.
- Poor Performance & Fuel Economy: A faulty injector disrupts the air/fuel mixture, leading to lost power and more trips to the gas station.
For 6.5L Diesel Injectors:
- Excessive Exhaust Smoke: This is a primary indicator. Black smoke means too much fuel, while white or gray smoke points to unburnt fuel from a bad spray pattern.
- Rough Idle or Knocking: An uneven fuel delivery will cause the diesel engine to run rough or produce a knocking sound. 🎬 Watch: How to replace and time a 6.5L diesel injection pump.
- Loss of Power: The truck may feel sluggish, especially when towing or climbing hills.
- Increased Fuel Consumption: Worn injectors waste fuel, leading to a noticeable drop in MPG.
- Hard Starting: Worn injectors may not atomize fuel well enough for a quick start, especially when cold.
Choosing the Right Aftermarket Fuel Injector
For this generation of truck, aftermarket parts can be an excellent choice, especially for the problematic gas engine spider injector.
The Spider Injector Upgrade is a Must-Do

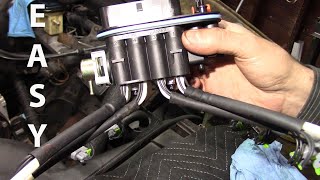

If you have a 1996-2000 gas engine with the original poppet-valve spider injector, do not replace it with the same design. The standard, reliable repair is to install an updated Multi-Port Fuel Injection (MPFI) spider assembly. This design replaces the failure-prone poppet valves with small, modern electronic injectors at the end of each tube, greatly improving reliability and performance. 🎬 Watch this step-by-step guide to replacing your spider injector assembly. Brands like Standard Motor Products and ACDelco offer this upgraded design.
Brand Quality Tiers
- Tier 1: OEM & OE-Equivalent (Highest Quality): For diesel engines, Bosch is the original equipment manufacturer and the most trusted choice. For all systems, ACDelco (GM's official brand) and Delphi (a major GM supplier) offer OEM-quality parts that provide factory performance and longevity.
- Tier 2: Reputable Aftermarket (Good Value & Reliability): Standard Motor Products (SMP) is a well-regarded brand, and their MPFI spider upgrade kits are known to use reliable Delphi injectors inside. Walker Products is another long-standing company that produces quality fuel system components that meet or exceed OE specifications.
- Tier 3: Budget Brands (Use with Caution): Brands like GBR Fuel Injection and various unbranded units found on marketplaces are available at a lower cost. While tempting, be aware that they may not have the same quality control or durability as premium brands. For a critical part like a fuel injector, leaks or premature failure can cause major engine problems.
| Part Type | Typical Cost (Part Only) | Notes |
|---|---|---|
| Single Diesel Injector (6.5L) | $55 - $100 | Bosch, ACDelco, or Delphi are recommended. It is best practice to replace all 8 at once. |
| Set of 8 Diesel Injectors (6.5L) | $450 - $700+ | Buying a full set is often more economical. |
| MPFI Spider Injector Upgrade (Gas V8) | $250 - $550 | This is for the entire assembly. Standard Motor Products and ACDelco are popular choices. |

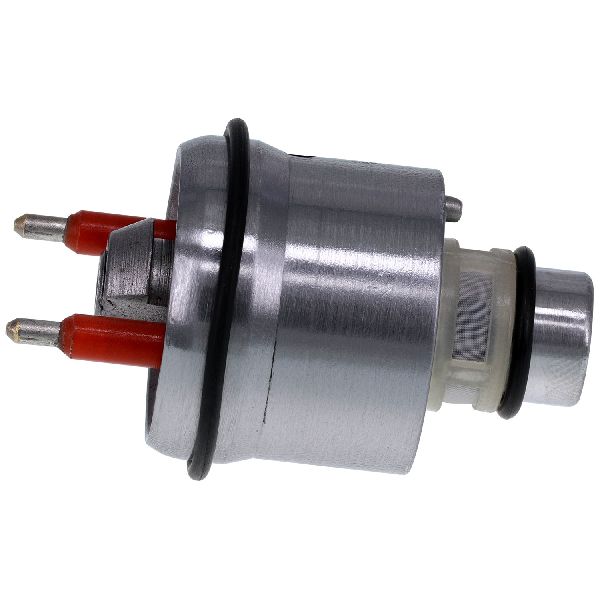

| Single TBI Injector (94-95 Gas) | $60 - $120 | These are sold individually, and the truck has two. | 🎬 See how to rebuild your TBI fuel injection system yourself.
Frequently Asked Questions (FAQ)
Do I have to replace all my fuel injectors at once?
For the 6.5L diesel, it is highly recommended. Injectors wear at a similar rate, so if one has failed, others are likely not far behind. Replacing them as a set ensures balanced engine performance and prevents you from having to do the same job again soon. For the 1996-2000 gas engines, the injector is replaced as a single "spider" assembly. For the 1994-1995 TBI engines, you can replace just one, but it's often wise to replace both while you have it apart.
Is replacing the fuel injectors a DIY job?
For a mechanically experienced person, yes. Replacing the gas engine spider injector requires removing the upper intake manifold, which can take 3-5 hours. Replacing diesel injectors also requires removing some components to gain access and can be time-consuming. If you are not comfortable working on your engine's fuel system, it is best to leave this job to a professional mechanic.
Are the cheap spider injectors on Amazon or eBay any good?
Exercise caution. Forum users and mechanics often report issues with very cheap, unbranded spider assemblies, including fuel leaks inside the manifold—a significant fire and engine damage risk. Given the labor involved to replace it, spending more on a reputable brand like Standard Motor Products, ACDelco, or Delphi is a wise investment.
Are there any recalls for the fuel injectors on my K2500?
No, there were no specific recalls issued by the NHTSA for fuel injector failure on the 1994-2000 GMC K2500. There was a recall for the 1994 model year regarding fuel lines at the tank, but it was not related to the injectors themselves. The problematic spider injector is considered a common failure pattern rather than a safety recall item.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19210687 89060440 217-3029 FJ504 10233973
System Type: Throttle Body Injection (TBI), Central Port Fuel Injection (CPFI), or Mechanical Direct Injection (Diesel). Engine compatibility: 5.0L V8, 5.7L V8, 7.4L V8, 6.5L V8 Diesel.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
