GMC K2500 Stabilizer Bar Link Kit Guide for 1994-2000 Models
Eliminate front-end clunks and restore handling on your heavy-duty truck.
- The most common symptom of failure is a clunking noise from the front end over bumps.
- Always replace stabilizer bar links in pairs to ensure balanced handling.
- Aftermarket brands like Moog, Mevotech, and Delphi often offer heavy-duty or greasable options that can be an upgrade over the original design.
- Replacement is a straightforward DIY job for most owners with basic hand tools.
Is Your K2500 Making Clunking Noises?
One of the most common and noticeable signs of a failing stabilizer link is a clunking or rattling sound coming from the front suspension. This noise is most obvious when driving over bumps, uneven roads, or turning. Other symptoms include sloppy or loose-feeling steering, excessive body roll that makes the truck feel unstable in corners, and visible damage to the link's bushings or rod. The original bushings wear out, crack, and fall apart over time, leaving the metal components to knock against each other.
Choosing the Right Aftermarket Link Kit
For a 1994-2000 GMC K2500, aftermarket stabilizer link kits are the most common and practical choice. The original parts are often discontinued, and many aftermarket options offer significant improvements in durability. When choosing a replacement, consider the different tiers available:
Brand Quality Tiers
- Premium / Heavy-Duty (Moog, Mevotech TTX/Supreme, Delphi): These brands often position themselves as problem-solvers, offering designs that are more robust than the original equipment. Features can include thicker rods, improved bushing materials, and sometimes greasable joints that allow you to flush out contaminants and extend the part's life. Delphi is often considered to be of OE-level quality. Moog and Mevotech are popular choices, with some users preferring one over the other based on specific experiences.
- Standard Replacement (Dorman, QuickSteer): Dorman is a widely available brand that offers a direct replacement for the original part. Their "Premium XL" line is considered a higher quality option. These parts are a reliable choice for daily driving and will restore original performance.
- Economy (Skyward, various private labels): These are the most budget-friendly options. While they will solve the immediate problem of a broken or worn-out link, their long-term durability may not match that of the premium or standard brands. They are a viable option if the price is the primary concern.
Pro Tip: Greasable vs. Sealed
Some aftermarket links come with grease fittings (zerks). These "greasable" parts allow you to add fresh grease periodically, which can push out old grease, water, and dirt, potentially increasing the lifespan of the joint. Sealed units require no maintenance but cannot be serviced. For a heavy-duty truck like the K2500, choosing a greasable link can be a smart long-term investment if you are willing to perform the occasional maintenance.
Known Issues, Recalls, and TSBs
Searches for official recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for the 1994-2000 GMC K2500 did not reveal any specific issues directly related to the suspension stabilizer bar links. Failures of this part are typically due to normal wear and tear from age, mileage, and the stress of use on a heavy-duty truck chassis.
Cost to Replace Stabilizer Link Kits
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit | $8.66 - $46.00 |
| Shop Labor | $75 - $150 |
| Total Estimated Cost | $84 - $196 |
Costs are estimates and can vary based on your location, the specific brand chosen, and the repair shop's labor rates. It is highly recommended to replace stabilizer links in pairs to ensure even handling characteristics.
Frequently Asked Questions (FAQ)
Do I need to replace both stabilizer links at the same time?
Yes, it is highly recommended to replace them in pairs. If one link has failed due to age and wear, the other is likely in similar condition. Replacing both ensures balanced handling and prevents you from having to do the same job again in the near future.
Is a special tool needed for installation?
No special tools are required. The replacement can be done with basic hand tools like sockets, ratchets, and wrenches (typically 13mm or 15mm for this truck). Sometimes, penetrating oil is helpful for loosening rusted nuts. A pry bar can also be useful for moving the sway bar into position.
How can I tell if the sway bar itself is bad, not just the links?
While it's less common, the sway bar itself can be damaged, usually from a collision or severe impact. A visual inspection would show cracks, significant bends, or damage to the mounting holes at the ends. The links and their bushings are designed to be the primary wear items in this system.
Will new stabilizer links fix my truck's body roll?
If your old links were worn or broken, new links will restore the stabilizer bar's ability to do its job, which is to reduce body roll. This will make the truck feel more stable and controlled during turns. However, if you're looking for a performance upgrade beyond the stock feel, you might consider a larger diameter aftermarket sway bar in addition to new links.
Technical Specifications
OEM Part Numbers: 12546193 88912161

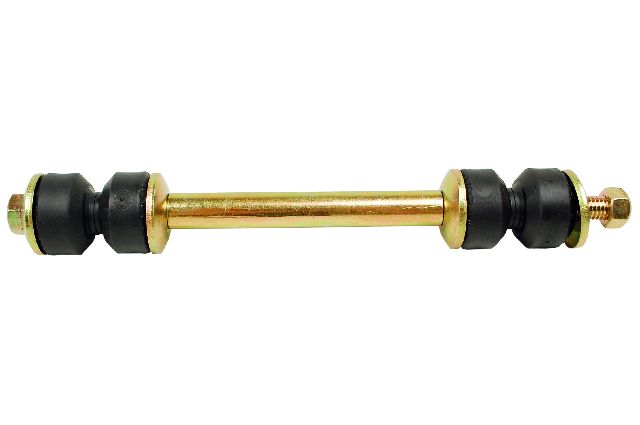

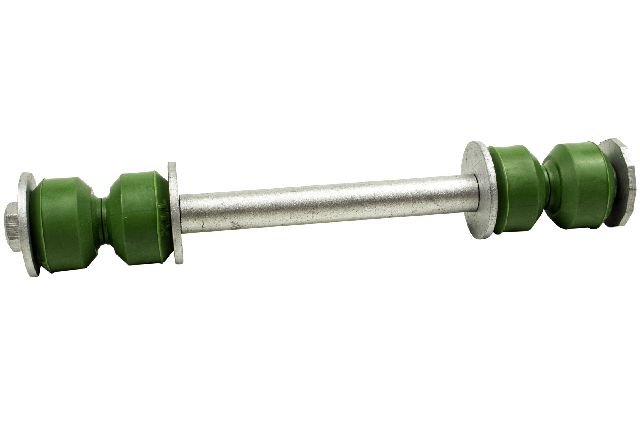

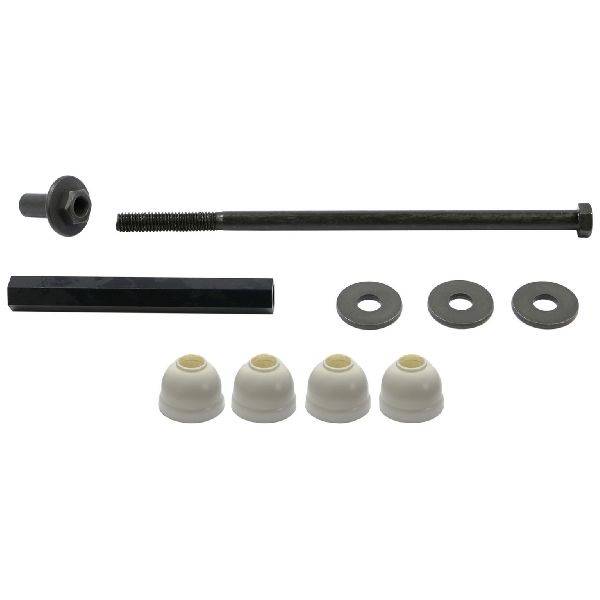

The kit consists of a long bolt, a metal sleeve, and several urethane or rubber bushings and washers. It connects the end of the front stabilizer bar to the lower control arm.
