Mazda B4000 Throttle Position Sensor (TPS) Guide: 1994-2000
Fix your B4000's hesitation, rough idle, or poor shifting by understanding and replacing your throttle position sensor.
- Symptoms like hesitation, rough idle, and bad automatic shifting are classic signs of a failing TPS on your B4000.
- Replacement is a simple DIY job, requiring only a screwdriver and about 30 minutes.
- A quality aftermarket brand like Standard Ignition or Walker Products provides reliable performance without the higher cost of an OEM part.
- There are no recalls or TSBs for this specific part, meaning failures are due to normal wear and tear.
Symptoms of a Failing Throttle Position Sensor on a Mazda B4000
When the TPS on your 1994-2000 B4000 starts to fail, it sends bad information to your truck's computer. This can cause a lot of problems that you will feel while driving. Because this sensor wears out over time, the signals it sends can become erratic.
- Check Engine Light: This is often the first sign. You may see codes like P0121, P0122, or P0123, which point directly to a TPS circuit problem.
- Hesitation or Stumbling: When you press the gas, the truck might hesitate or stumble before accelerating. This happens because the computer doesn't get a clear signal that you want to go faster.
- Rough or Unstable Idle: Your truck might idle too high or too low, or the idle might surge up and down on its own.
- Poor Shifting (Automatic Transmission): The computer uses the TPS signal to help decide when to shift gears. A bad sensor can cause hard, late, or erratic shifts.
- Sudden Loss of Power or Surging: The truck might suddenly lose power while driving, or unexpectedly surge forward, because the sensor has a "dead spot" and temporarily stops sending a signal.
Is It the TPS or Something Else?
The symptoms of a bad TPS can sometimes be confused with other issues, like a dirty Mass Airflow (MAF) sensor or a failing fuel pump. However, the TPS is a common failure point on these trucks, is relatively inexpensive, and is easy to replace. Testing the sensor with a multimeter is the best way to confirm it's bad before buying a new one.
🎬 See how to test your sensor in secondsChoosing the Right Aftermarket TPS Brand
Since your Mazda B4000 is a rebadged Ford Ranger, the quality of aftermarket parts is well-known. You don't necessarily need to buy an expensive OEM part from a dealer. A good quality aftermarket sensor will work just fine for this truck.
Here's a breakdown of the typical brand tiers available:
- Premium Aftermarket (e.g., Standard Ignition, Walker Products): These brands are well-regarded in the industry. Standard Ignition (SMP) has a reputation for making high-quality components that often meet or exceed original specs. Walker Products also engineers their sensors to be direct OE-quality replacements. For a critical sensor like the TPS, spending a few extra dollars for a brand like this is a smart investment for reliability.
- Standard Aftermarket (e.g., Replacement, store brands): These are the most budget-friendly options. While they can work, quality can be inconsistent. You might get a part that works perfectly for years, or you might get one that fails prematurely. If budget is your absolute top priority, they are an option, but be aware of the potential for a shorter lifespan.
Pro Tip: Easy DIY Replacement
Replacing the TPS on a B4000 is a great job for a beginner. It's located on the side of the throttle body and is held on by just two screws. The entire job can usually be done in under 30 minutes with a simple Phillips head screwdriver.
🎬 Watch: Step-by-step guide to replacing your TPSFrequently Asked Questions (FAQ)
Do I need to calibrate the new TPS?
For the 1994-2000 Mazda B4000, there is no complex calibration needed. After installing the new sensor, it's a good practice to reset the engine computer. You can do this by disconnecting the negative battery terminal for about 15 minutes. 🎬 Watch: Quick tips for resetting your throttle sensor This allows the computer to forget the old sensor's bad readings and learn the new sensor's correct signals.
Can I just clean my old throttle position sensor?
No. The TPS is a sealed electronic sensor. The problem is internal wear on a resistive strip, not dirt. Cleaning the outside will not fix a failing sensor. While you have the sensor off, it is a good idea to clean any carbon buildup inside the throttle body itself with a dedicated throttle body cleaner.
Is an OEM Motorcraft sensor better than aftermarket?
Motorcraft is the original part manufacturer for your truck. It is a high-quality part. However, for a vehicle of this age, a premium aftermarket sensor from a reputable brand like Standard Ignition or Walker Products offers comparable performance and reliability for a lower price.
Where is the TPS located on my B4000?
The throttle position sensor is located on the engine's throttle body. It is a small, black plastic sensor mounted to the side, on the pivot point of the throttle plate mechanism. It is held in place by two screws and has an electrical connector plugged into it.
Are there any recalls for the B4000 throttle position sensor?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or technical service bulletins (TSBs) for the throttle position sensor on the 1994-2000 Mazda B4000.
Helpful Videos
Technical Specifications
OEM Part Numbers: F4SZ-9B989-A F5RZ-9B989-B

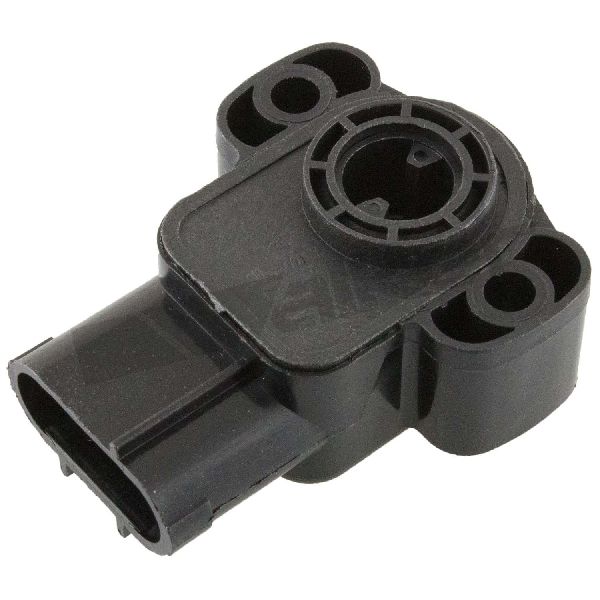

3-pin, clockwise rotating potentiometer sensor mounted on the throttle body.
