A Guide to the Engine Coolant Bypass Hose for the 1994-2001 AM General Hummer
Don't let a small rubber hose sideline your Hummer; understand what it takes to replace your engine coolant bypass hose.
- A leaking coolant bypass hose can cause rapid engine overheating; do not drive if you suspect a leak.
- Inspect all coolant hoses for cracks, bulges, or soft spots during routine maintenance.
- For this part, top aftermarket brands like Gates and ACDelco offer quality and reliability that is equal to or better than OEM.
- Always replace hose clamps when replacing a hose to ensure a leak-free seal.
Is Your Hummer's Bypass Hose Failing?
The engine coolant bypass hose is made of rubber that breaks down over time due to constant heat cycles and exposure to chemicals. A failure in this hose can quickly lead to serious engine problems. It's a part you should inspect regularly, especially on an older, heavy-duty vehicle like the 1994-2001 Hummer.
Symptoms of a Bad Bypass Hose
- Coolant Leaks: This is the most common sign. You may see puddles of green or orange fluid under your truck, especially towards the front of the engine. Sometimes, a slow leak leaves behind a crusty, whitish or colored residue on the hose itself.
- Engine Overheating: A significant leak will cause your coolant level to drop, leading to engine overheating. If your temperature gauge starts climbing, a leaking hose is a likely culprit. Driving while overheating can cause catastrophic engine damage.
- Steam or Coolant Smell: If coolant drips onto hot engine parts, it will create steam that you might see coming from under the hood. You'll also likely notice the distinct, sweet smell of antifreeze.
- Visible Hose Damage: Pop the hood and look at the hose. Signs of failure include cracks, splits, swelling, or a soft, spongy feeling when you squeeze it (when the engine is cold). Any hose that looks swollen or feels mushy is on borrowed time.
A Note on Pre-1997.5 Models
Hummers built before mid-1997 used a specific HVAC system where related heater hoses and plastic connectors were known weak points. While this article focuses on the engine bypass hose, be aware that all cooling and heater hoses from this era are prone to aging and should be inspected carefully.
Choosing the Right Aftermarket Bypass Hose
For a rugged vehicle like the Hummer H1, reliability is key. You don't want a cheap part failing when you're far from home. Fortunately, high-quality aftermarket brands offer excellent replacements that often meet or exceed original factory standards. Fitment is the most important factor; a pre-molded hose designed for your vehicle is essential to avoid kinks that restrict flow.
Brand Quality Tiers
- Top Tier (ACDelco, Gates): ACDelco is the official GM parts brand, and their products are a trusted, reliable choice. Gates is a highly respected aftermarket manufacturer that often supplies the hoses for brands like ACDelco. Forum users and mechanics frequently recommend Gates for its excellent fit and durability. You can't go wrong with either of these brands.
- Standard Tier (Dayco): Dayco is another major aftermarket supplier offering quality hoses. While some users have a preference for Gates' fit and finish, Dayco hoses are a dependable and more budget-friendly option that will get the job done.
Pro Tip: Always Replace the Clamps
When you replace any coolant hose, you should also replace the hose clamps. Old clamps can lose their tension over time, leading to leaks even with a new hose. Many mechanics prefer spring-style clamps over screw-type clamps because they maintain constant pressure as the hose expands and contracts with heat.
Aftermarket Engine Coolant Bypass Hose Cost
| Part | Price Range |
|---|---|
| Aftermarket Engine Coolant Bypass Hose | $14.17 - $93.36 |
(Prices are estimates and vary based on brand, retailer, and specific hose configuration for your vehicle.)
Frequently Asked Questions
Are there any recalls for the 1994-2001 Hummer coolant bypass hose?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any specific recalls for the engine coolant bypass hose on the 1994-2001 AM General Hummer. An unrelated recall existed for the HVAC system on much newer Hummer H3 models.
Is an aftermarket hose as good as the original OEM part?
Yes. For a part like a coolant hose, top-tier aftermarket brands like Gates and ACDelco are often the original equipment manufacturer anyway. They produce high-quality EPDM rubber hoses that meet or exceed the specifications of the original part, providing excellent performance and longevity.
If one hose is bad, should I replace others?
Yes. Coolant hoses are all exposed to the same age, heat, and pressure. If the bypass hose has failed due to age, the radiator hoses and heater hoses are likely near the end of their life too. It is highly recommended to replace multiple hoses at the same time to prevent another breakdown in the near future.
How hard is it to replace the bypass hose myself?
For a DIY mechanic, the job is feasible but can be challenging due to tight access in the Hummer's engine bay. The basic steps involve draining the coolant, removing the old clamps and hose, installing the new parts, and then refilling and bleeding the air out of the cooling system. If you are not comfortable with this process, a professional mechanic can perform the service.

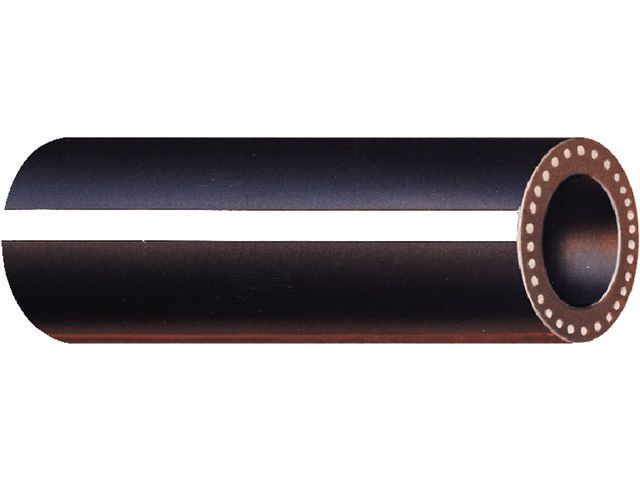

Technical Specifications
OEM Part Numbers: 10182356
This is a molded EPDM rubber hose designed to resist heat, ozone, and chemical degradation from coolant. The specific shape is critical for proper fitment on the 1994-2001 AM General Hummer with the 6.5L V8 Diesel engine to prevent kinking and rubbing.
